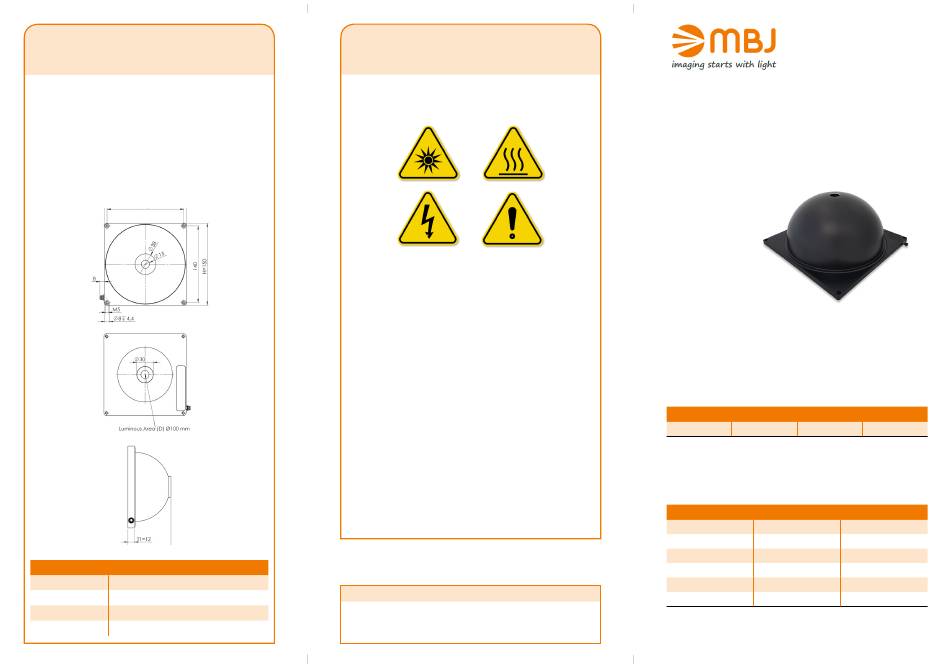

mbj Domelight Series Operating Manual

Mechanical Integration
The lights are equipped with 4 combined mounting positions of M5
threaded holes and M4 through holes. The SDL-30 dome light only got
through holes for M5. It can be used to fix the lighting to the specified
position. To ensure a long operational lifetime of the light additional
heat transfer measurements at the mounting positions are highly
recommended.
Example: Model SDL-10
More 2D and 3D drawings can be found online:
www.mbj-imaging.com
Specification Domelight Series
Operating temperature 10°C to 30°C
Certifications CE, RoHS
Degree of protection IP20
Humidity 30 % to 70 %
Safety Notes
Before working with this unit, read the warning and application instruc-
tions carefully and completely before operating the device.
1. The device is designed for indoor use only.
2. Light – Due to the risk of flash burn of the eyes it is not recommended
to look directly into the light source. The lighting must be switched
off before installation and/or maintenance. The device must not be
used when a failure may cause a personal injury.
3. Heat - In case of insufficient heat dissipation or when running the
light in flash mode with a too high duty cycle, the surface tempera-
ture may exceed 60 °C. Keep off flammable materials at any time.
4. Electricity - The housing is electrically isolated from the ground of
the power supply. Exceeding the permissible input voltage U
U can lead to the destruction of the device or to a significant
LED(+)
shortening of the lifetime of the LEDs in the device.
5. Usage – Please prevent mechanical stress to the light surface during
operation. This will lead to a inhomogenious light emission.
6. Cleaning - The light emission surface has to be cleaned with a stan-
dard glass cleaner and a soft cleaning cloth. Do not use other material
for cleaning as it will damage the device.
03204.02 Manual MBJ Domelight SDL -Series, August 2023
MBJ Imaging GmbH
Jochim-Klindt-Straße 7 +49 4102 778 90 31
22926 Ahrensburg, Germany sales@mbj-imaging.com
www.mbj-imaging.com
Domelight Series
Model Sizes in Series
or
in
The light is available in the following sizes
SDL-05
1) Size definition: SDL-10 refers to a luminous area diameter of 100 mm.
Possible LED Colors
LED
White
Red
Infrared
Green
Blue
Yellow
1) Color option will be added to the model name after the size information. SDL-10-RD
refers to a domelight with 625 nm red light.
2) This is an approximated value. The exact value also depends on LED temperature
and LED current
Operating Manual
Technical Data
1)
SDL-10 SDL-20 SDL-30
Abbr. 1) Peak Wavelength 2)
-WT 5000 K, CRI80
-RD near 625 nm
-IR near 850 nm
-GN near 525 nm
-BE near 465 nm
-YE near 580 nm
