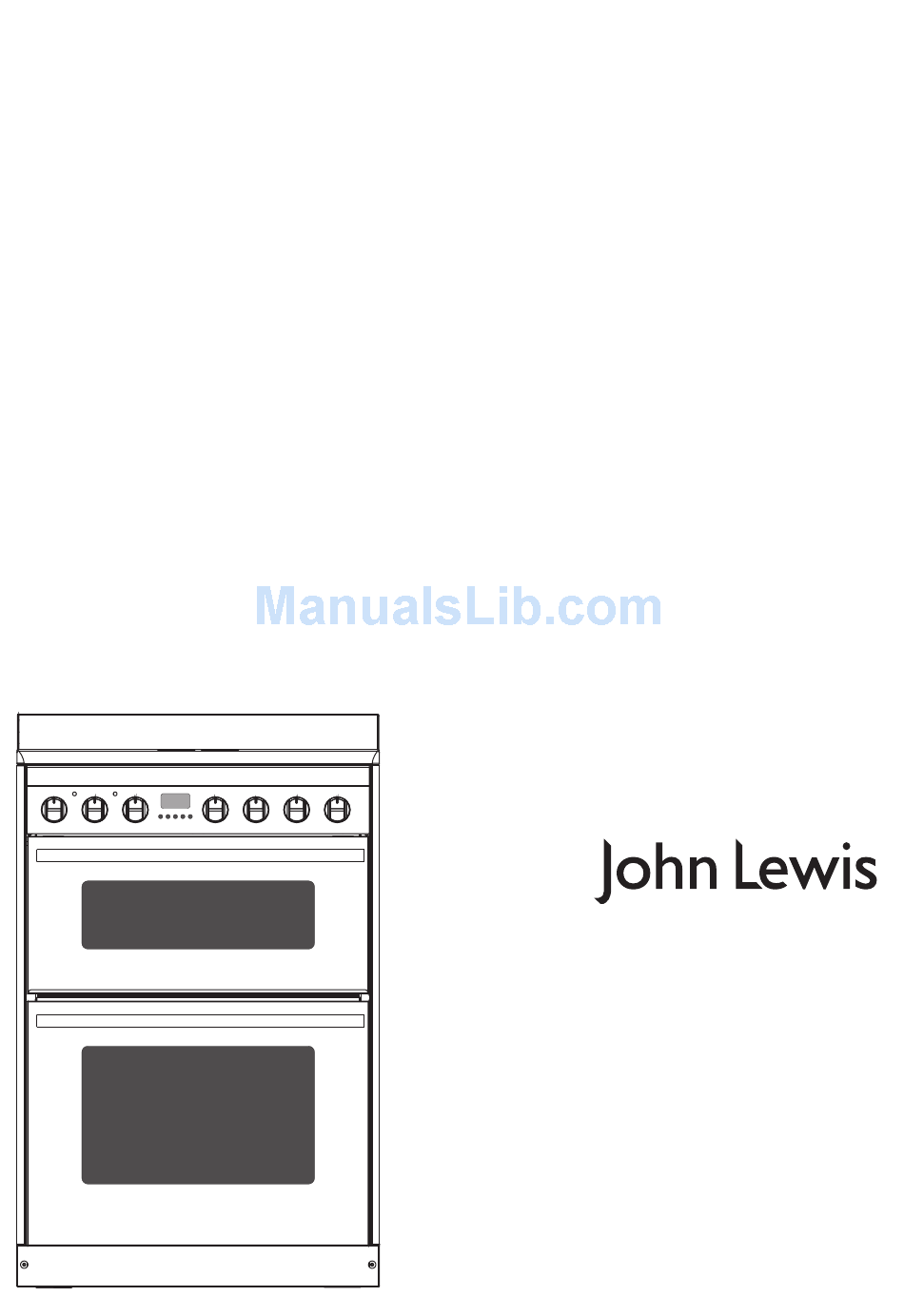

- Page 1 JLFSMC603 JLFSMC605 Multi function cooker Instruction manual...
-
Page 2: Important Safety Information
Important safety information Thank you for purchasing this appliance. This manual is an integral part of the appliance and therefore must be kept in its entirety and in an accessible place for the whole working life of the cooker. Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product. -
Page 3: Table Of Contents
Contents For the user Important safety information 2 Guide to using the instruction manual Environmental information Description of the appliance The control panel Using your appliance Before the first use Use of the Ovens Oven functions Using the grill Automatic programmer Use of the hob Cleaning your appliance Cleaning stainless steel... -
Page 4: Environmental Information
Environmental information Our product's packing is made of non-polluting materials, which are therefore compatible with the environment and recyclable. Please help by disposing of the packaging correctly. You can obtain the addresses of collection, recycling and disposal centres from your retailer or from the competent local organisations. -
Page 5: Description Of The Appliance
Description of the appliance 1 Front control panel 2 Oven light (auxiliary oven) 3 Oven guide for shelf and pan (auxiliary oven) 4 Oven door (auxiliary oven) 5 Oven light 6 Oven fan 7 Oven guide for shelf and pan 8 Oven door... -
Page 6: The Control Panel
The control panel 1 Oven thermostat knob 2 Oven function knob 3 Auxiliary oven function/thermostat knob 4 Automatic programmer 5 Front left cooking zone knob 6 Rear left cooking zone knob 7 Rear right cooking zone knob 8 Front right cooking zone knob... -
Page 7: Using Your Appliance
Using your appliance Before the first use • Remove all packaging and accessories from inside the ovens. • The inside of the appliance should be cleaned to remove all manufacturing residues. • Using the oven for the first time, heat them to the maximum temperature for as long as it takes to burn off any production oil residues which could give a nasty... -
Page 8: Oven Functions
it means that the required temperature has been reached. Intermittent going on and off of the light means that the oven temperature is being constantly maintained at the programmed level. 3 To turn the oven off, turn the function slector and temperature knobs, anticlockwise back to “0”. -
Page 9: Using The Grill
Fan-assisted grill (main) The air produced by the fan softens the strong heatwave generated by the grill, giving perfect grilling even with very thick foods. Perfect for large cuts of meat (e.g. shin of pork). Fan-assisted bottom (main) The combination of the fan with just the lower heating element allows cooking to be completed more rapidly. -
Page 10: Automatic Programmer
Automatic programmer 1 Minute-timer key 2 Cooking period key 3 End time key 4 Decrease time key 5 Increase time key Before setting the programmer for semi/automatic cooking, activate the desired function and temperature. Set the clock: When using the oven for the first time, or after a power failure, the display flashes regularly and indicates 00:00. - Page 11 To set the oven to switch off automatically at a set time: Use this function if you have already started cooking and want the oven to switch-off at a set time. (for example at 19.30). 1 Press the “end time” key, the display lights up, showing the current time.
-
Page 12: Use Of The Hob
Use of the hob Caution! Before lighting the hob burners check that the flame caps are in the correct position and that their burner caps are in place, making sure that the holes A in the flame caps correspond to the spark plugs and thermocouples. - Page 13 without thermocouples. In the event of a power failure the burners can be lit with a match or gas lighter. The flame failure devices will continue to function normally. Practical advice for using the hob burners For better use of the burners and lower gas consumption, use covered vessel that are proportional in size to the burner to prevent the flame from licking the sides.
-
Page 14: Cleaning Your Appliance
Cleaning your appliance Warning! Before any intervention, disconnect the power supply of the device Caution! Never use a steam jet to clean the appliance. Cleaning stainless steel To keep stainless steel in good condition, it must be cleaned regularly when you are done using the cooker, after it has cooled. -
Page 15: Cleaning The Hob Components
Cleaning the door glazing The door glazing should always be kept thoroughly clean. Use absorbent paper towels, remove stubborn dirt with a damp sponge and ordinary detergent. Caution! When cleaning, the appliance must be dried thoroughly since detergent and water drips might damage its operation and appearance. - Page 16 with the scraper provided; rinse with water and wipe dry with a clean cloth. Regular use of the scraper considerably reduces the need for chemical detergents for the daily cleaning of the hob. Never use abrasive or corrosive detergents (e.g. cleaning powders, oven sprays, spot-removers, wire sponges).
-
Page 17: Extraordinary Maintenance
Extraordinary maintenance The oven may require extraordinary maintenance or replacement of parts subject to wear such as seals, bulbs, and so on. The following instructions describe how to carry out these minor maintenance operations. Warning! Before any intervention, disconnect the power supply of the device. -
Page 18: Oven Door Seal
4 To replace, fit the hinges into the grooves provided, then lower the door until it comes to rest and extract the pins. Caution! Take care when removing the doors, they can be heavy. Oven door seal To permit thorough cleaning of the oven, the seal may be removed. -
Page 19: Something Not Working
Something not working Probem - The oven is not wired in or switch on at the wall. The oven doesn't - There is a power failure. work - An automatic cooking program has been set. - The oven is dirty. The oven smokes - Food has spilled over. -
Page 20: Installation Of The Appliance
Installation of the appliance Distances Caution! This appliance may be installed next to a wall which is higher than the appliance, with a minimum distance of 50 mm from the side of the appliance, as shown in the diagram showing the correct installation conditions. -
Page 21: Gas Connection
380-415V2N~ four-core cable (4 x 1.5 mm²) 220-240V ~ three-core cable (3 x 2.5 mm²) Complete wiring up to power supply with an appropriately rated five-core plug (see data plate) or, in case of operation from a 220- 240V power supply, with a three-core plug. Make sure that plug and wall socket are of the same type and are in conformity with regulations in force. -
Page 22: Adaptation To Different Types Of Gas
If connecting to LPG the bayonet hose must have red bands on it. Smooth welded connector: Make the connection to the appliance using a flexible bayonet style hose in accordance to B.S. 669. The hose connection at the rear of the appliance has a ½” BSP internal thread. - Page 23 Burner and nozzle characteristics table Rated heating Burner capacity (kW) Auxiliary Semi rapid 1.75 Triple crown Rated heating Burner capacity (kW) Auxiliary Semi rapid 1.75 Triple crown LPG – G30/G31 28/37 mbar Nozzle By-pass mm diameter 1/100 1/100 mm NATURAL GAS – G20 20 mbar Nozzle diameter 1/100 mm Reduced Flowrate...
-
Page 24: Levelling The Appliance
Levelling the appliance For proper performance the appliance must be leveled. The appliance is leveled by adjusting the four legs to ensure a perfectly level plane for the unit. To accomplish this, screw or unscrew the legs. Rear top skirtboard Caution! Always install the rear top skirtboard which is an integral part of the appliance. -
Page 25: Installation Checklist
Installation checklist The qualified technician should complete this checklist and leave it with the owner of the cooker. Date of installation: Cooker model numer: Cooker serial number: Please tick to confirm that the following checks have been completed: The cooker is level Gas soundness checks complete Simmer settings checked and adjusted if necessary... - Page 27 Your appliance comes with a three year guarantee, if it is not working properly consult the fault finding guides within this instruction book (Something not working). If a fault occurs which you can not resolve through following the advice and information contained within this instruction manual, the next step is to contact our extended warranty administrators on...
- Page 28 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com ANC Number JLFSMC603 Date 0310 JLFSMC605...
