Summary of Contents for John Lewis JLFSEC 602

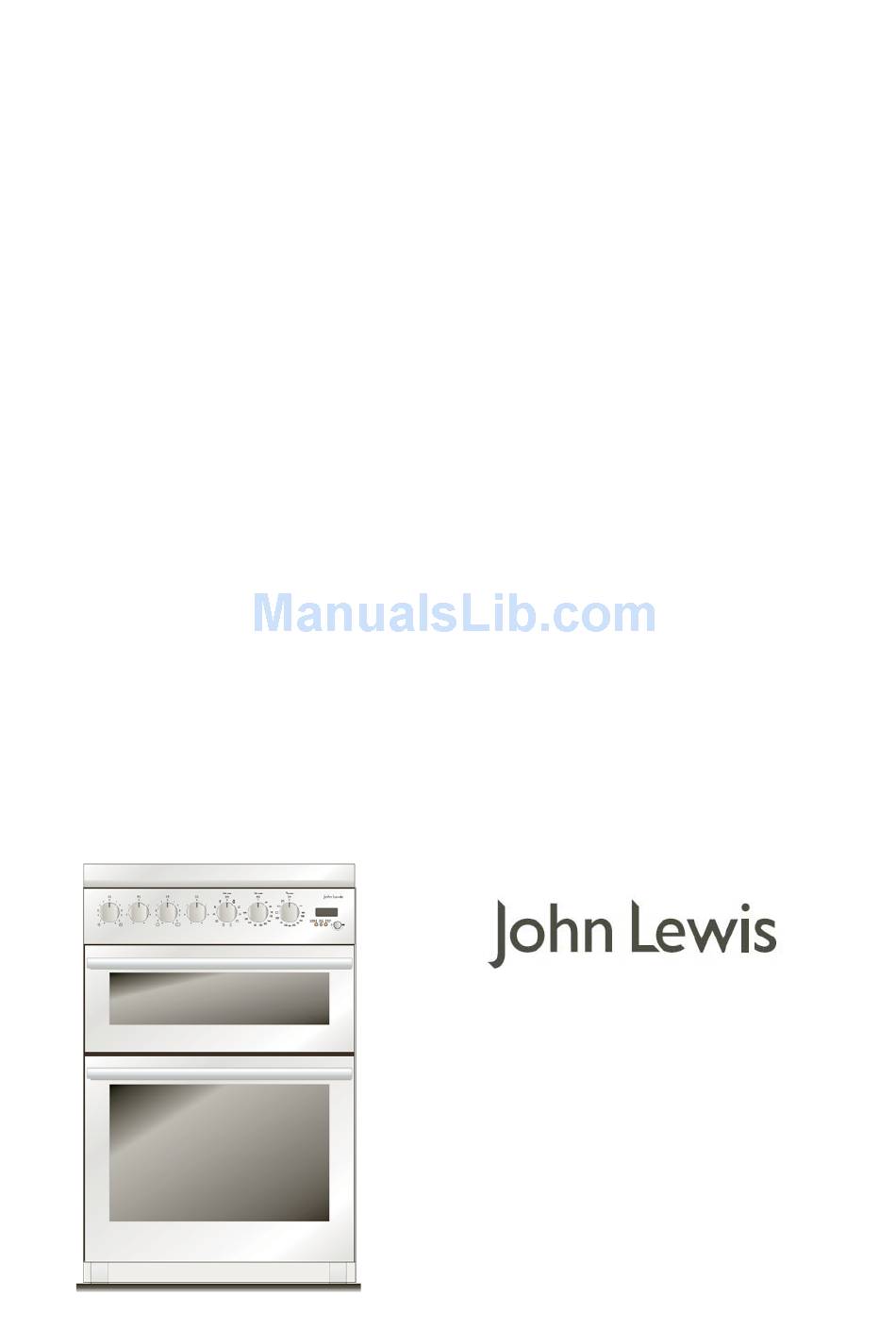

- Page 1 JLFSEC 602 Multifunction Cooker Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance.If you are unsure of the meanings of the these warnings con- tact the John Lewis branch from which you purchased the appliance. Installation •... -
Page 3: Maintenance And Cleaning
Maintenance and cleaning • For hygiene and safety reasons this cooker should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire especially in the grill pan. • Always allow the cooker to cool down and ensure it is switched of at the wall switch prior to carrying out any cleaning / maintenance work. -
Page 4: Table Of Contents
Contents Important safety information Guide to using the instruction manual The following symbols will be found in the text to guide Description of the appliance you throughout the instructions: Installation Technical specifications Safety instructions Electrical connection Stability chain Description of the hob Hints and tips Assembly •... -
Page 5: Description Of The Appliance
Description of the appliance Control panel Conventional top oven Multifunction main oven... -
Page 6: Installation
Installation It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable (not supplied). Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 7: Electrical Connection
Electrical connection WARNING: This appliance must be earthed. Do not earth this appliance to the gas supply piping. Connect to 230 - 240V | 380 - 400V 3N AC supply only. • Make the connection as shown in figure by proceeding as follows: •... -
Page 8: Stability Chain
Stability chain The cooker is fitted with a stability device such as The wall behind the cooker between the hotpla- a proprietary stability chain as shown and firmly te and 450mm above, and across the width of the secured to the fabric of the building.Whatever the cooker, must be an incombustible material such as position, remember to leave enough room for the ceramic wall tiles.This appliance is designed not to... -
Page 9: Description Of The Hob
Description of the hob Energy regulator max 2.2 kW Switch 1.2 kW Switch 1.7 kW Energy regulator max 2.4 kW Assembly Fitting the adjustable feet Should it be necessary to move the cooker, screw the feet in completely and carry out the final levelling adjustment only when the Before assembling the cooker remove all gas and electrical connections have been... -
Page 10: The Control Panel
The control panel The control panel Description of electric oven knobs All the commands and controls for cooking with The main oven is controlled by two knobs: function switch knob and thermostat knob. They allow you to the hob and ovens are on the control panel. choose the most suitable type of heating for diffe- rent cooking requirements, by switching on the hea- Description of hob burner knob... -
Page 11: Using The Hob
How to use the glass ceramic top if the glass ceramic breaks, disconnect electric power and call in the John Lewis When using the top for the first time, we advise you Authorised Service Centre. -
Page 12: Using The Ovens
Using the ovens bottom element to cook foods from the base. During normal use the cooker will get hot. TOP HEAT. The heat distributes from the top Caution should therefore be used. Avoid lea- element. Ideal for browning the top of dishes ving the oven door open during use and im- without grilling. -
Page 13: Electronic Programmer
Electronic programmer The electronic programmer is a high-technology component which, by using only one knob, allows you to use all the functions that are usually made with more than one knob. This simple system easily allows you to use all the cooking programmes of your appliance. In addition to turning clockwise and anti-clockwise, it can be used as a push button. - Page 14 stat knob) as described on page 11-13. At the pre-programmed time the oven switches on and the display shows the remaining cooking time and the LED lights flash. At the end of the pre-programmed time the timer switches off, the display shows „END‰ and a warning alarm will sound.
-
Page 15: Conventional Oven (Top Oven)
Conventional oven (Top oven) CONVENTIONAL COOKING with heat distri- bution from above and from below. With the same knob is possible to set the temperature up to a maximum of 260 C °. BOTTOM HEAT with a maximum temperature of 260 °C;... -
Page 16: Maintenance And Cleaning
Maintenance and cleaning Cleaning the glass ceramic Before cleaning or carrying out mainte- worktop nance, switch off the power supply to the cooker and close the gas taps. We advise you to clean when the glass has cooled. Wash Do not clean the surfaces of the cooker the glass with the type of liquid detergent as per supplied when they are still hot. -
Page 17: Cleaning The Oven
Cleaning the oven Replacing the light bulb In order to maintain the oven’s efficiency and for hygienic Before carrying out maintenance, switch reasons, it should be cleaned regularly, each time it is used off the power supply to the cooker. if possible, after leaving it to cool: in this way it is possible to remove any residue more easily preventing it from bur- ning on the next time the oven is used. -
Page 18: Special Maintenance
Special maintenance Periodically, it is necessary to maintain or replace some parts that are subject to wear and tear. Specific instructions are given below for each type of maintenance. Before carrying out maintenance, switch off the power supply to the cooker and clo- se the gas taps. -
Page 19: Something Not Working
Symptom Solution The glass ceramic is breaks: Disconnect electric power and call the John Lewis Service Centre. The internal light is not working: • The plug is not properly inserted in the power socket. • There is no current at the socket. -
Page 20: Repairs - After Sales Service
“Something Not Working”. the appliance yourself. Repairs carried out by inexpe- rienced persons may cause injury or serious malfunctio- ning. Contact your local John Lewis branch. When you contact your local Service Force Centre you details: will need to give the following Your name, address and post code. - Page 21 NOTES...
- Page 22 NOTES...
- Page 23 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 822 930 410 -A-01 11/06 ZS3625 COD. 03201861 1.4...
