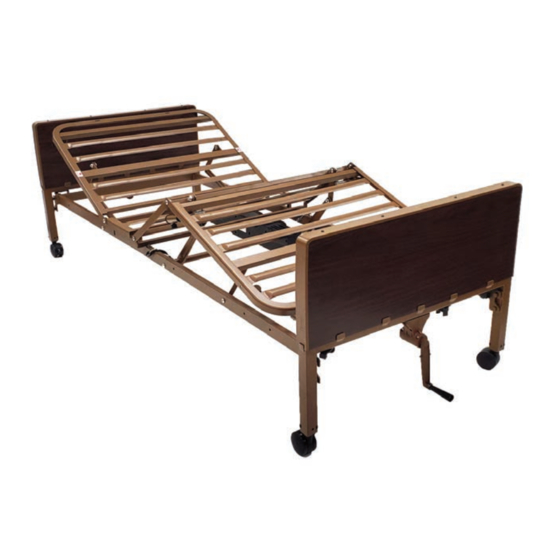

ATTENTION
Before using this Medical Device read this manual. If you are unable to
understand, contact your equipment provider for technical support before
attempting to use this product.
n
t
u
r
y
e
n
t
u
r
y
a
n
u
a
l
B
e
d
a
n
u
a
l
B
e
d
i
E
l
e
c
t
r
i
c
B
e
d
i
E
l
e
c
t
r
i
c
B
e
d
l
E
l
e
c
t
r
i
c
B
e
d
l
E
l
e
c
t
r
i
c
B
e
d
i
n
g
M
a
n
u
a
l
i
n
g
M
a
n
u
a
l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T1030 and is the answer not in the manual?

Questions and answers

Related Manuals for Tuffcare T1030

Summary of Contents for Tuffcare T1030

  • Page 1 W W W T U F F C A R E C O M Before using this Medical Device read this manual. If you are unable to understand, contact your equipment provider for technical support before © TUFFCARE. ALL RIGHTS RESERVED CENTURY HOME CARE BED V2.3 attempting to use this product.

  • Page 2: Table Of Contents

    14 - 16 Drive Shafts 17 - 18 Full Bed Side Rails Half Bed Side Rails ® Congratulations on your purchase of a Tuffcare Century Operation 21 - 22 homecare bed! Our homecare bed is engineered and Battery Backup designed with durability & easy maintenance in mind. Euro style surface is easy to clean and has no pinch points.

  • Page 3: Safety Precautions

    Follow the Safety Warnings and Operating Instructions in the service/User’s • Be sure that bed side rails are properly attached on the main frame manual. Contact your dealer or visit WWW.TUFFCARE.COM. before the patient is moved into the bed. L WARNING Crush Hazard due to LOW BED CLEARANCE •...

  • Page 4: Product Specifications

    Head Board Height (from Fabric): 12 1/2 inches Foot Board Height (from Fabric): 10 1/2 inches Weight Capacity: 450 lbs Bed Fabric Height: 15.5 inches at the lowest position Weight: T1030 - 145lbs T2030 - 150lbs T3030 - 151lbs Crank...

  • Page 5: Main Components

    I. Full- Electric Motor & Shaft for T3030 WARNING 1b. Lift the head surface and the foot surface up to create leverage so the two frames can stand on their sides. Use only Tuffcare parts to complete this bed assembly. - 7 - - 8 -...
  • Page 6 Figure A Figure B 1e. Insert the cotter pin into the overlaping holes on the head 1c. Carefully align the flanges on both side of the head frame frame flange and the foot frame to secure the frame/sleep with the receptacles on two sides of the foot frame as shown. surface as shown(Figure A).
  • Page 7 ASSEMBLE BED ENDS TO FRAME 2c. Attach the Head and Foot Boards by aligning the frame 2a. Install casters onto bed ends(head board & foot board) by mounting hooks over bed end mounting pins and push the inserting the stem of the caster into the leg receptacle. It is frame down to secure it in place.

  • Page 8: Motor

    DRIvE CRANK INSTALLATION - MANUAL BED ONLY MOTOR INSTALLATION - ELECTRIC BED ONLY 3a. The head crank located on the left side of the foot board needs an added extention to the drive tube. 4a. Remove the locking caps on top of the motor before mounting it onto the bed frame.
  • Page 9 4e. Align the motor with the actuator bar and lift the head 4c. Prior to installation, make sure that the 2 white motor spring to the highest position. The motor will automatically be blocks are in the retracted position. If the white motor block pulled towards the bed and lock onto the actuator.
  • Page 10 HI/LO DRIvE SHAFT INSTALLATION FOR MANUAL HI/LO DRIvE SHAFT INSTALLATION FOR MANUAL AND SEMI ELECTRIC BED FULL ELECTRIC BED 5a. the manual and semi electic bed share the same Hi/Lo 6a. The Hi/Lo drive shaft for full electric bed comes in two drive shaft, it comes in 3 sections.
  • Page 11 FULL RAIL INSTALLATION HALF RAIL INSTALLATION Figure A Figure B 7a. To install Full Bed Rails, lift the head section and find the rail barrel located on the frame of the bed as shown (Figure A). Pull barrel outward and return head section to the flat 8a.

  • Page 12: Operation

    PENDANT FUNCTIONS FOR FULL-ELECTRONIC BED OPERATION. OPERATION OPERATION PENDANT FUNCTIONS FOR SEMI-ELECTRONIC BED OPERATION. Press indicated buttons to move the bed up and (or) down. Press indicated buttons to move the bed up and (or) down. A. Head Section UP B.

  • Page 13: Battery Backup

    BATTERY BACKUP OPTIONAL: FIx HEIGHT ADJUSTMENT W/LOCK PINS Connect the 9V battery (sold separately) to the battery clip on the motor. It is stored in the recess under the motor cover. With this battery installed, the motor can be operated to return the sleep surface to the horizontal position in the event of a power failure.

  • Page 14: Maintenance

    (1) year. The warranty period commences on the original purchasing • Periodically remove the mattress and clean the mattress date. If within such warranty period any such product proven to Tuffcare ® satisfaction to be defective, such product will be repaired or replaced at deck.

This manual is also suitable for:
