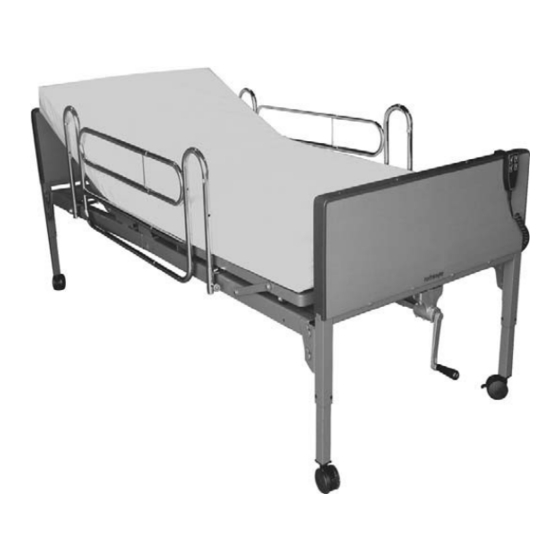

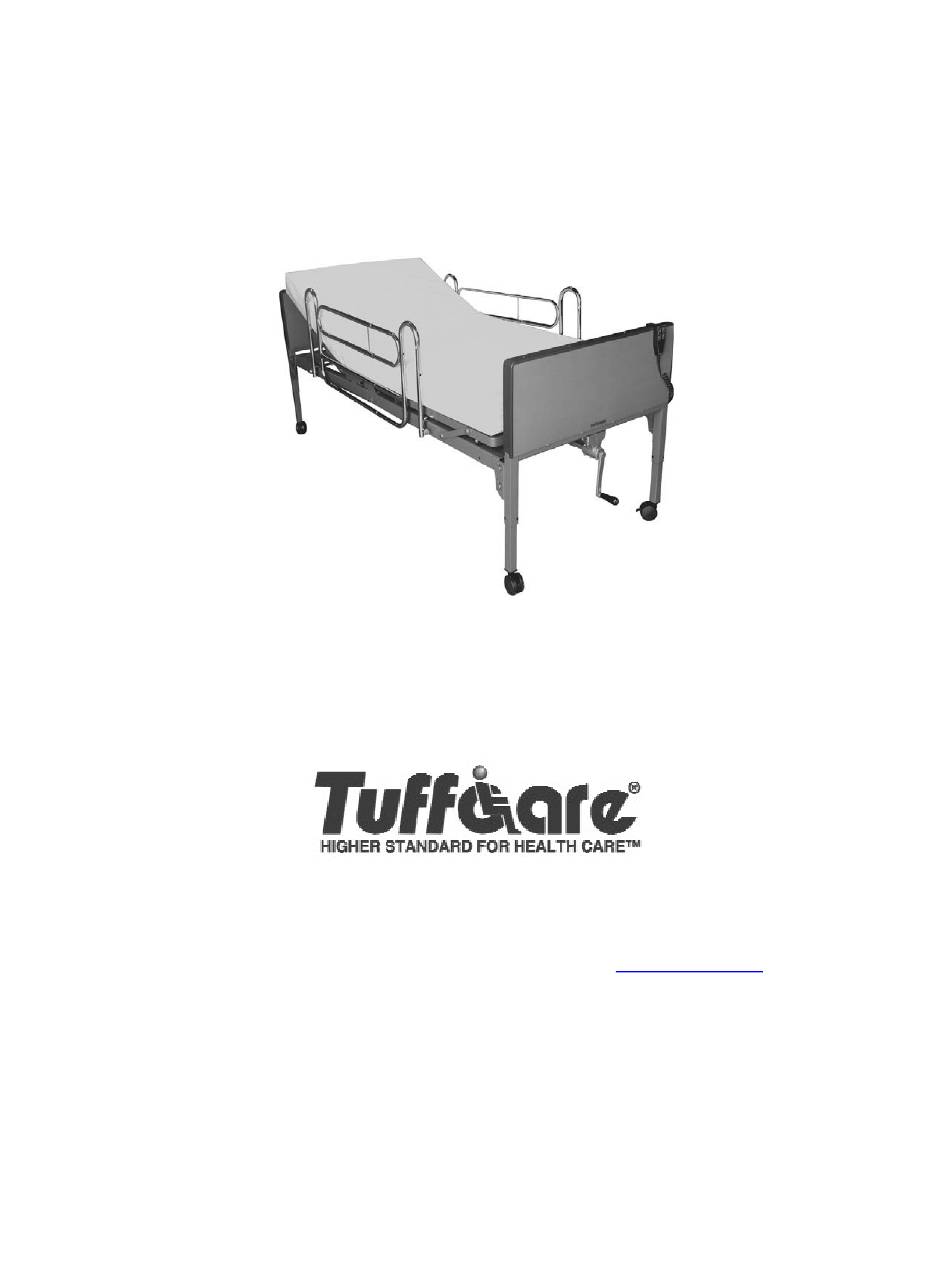

- Page 1 User Manual SEMI-ELECTRIC HOMECARE BED Model: T2020 ( Dual Motors), T2010 (Single Motor) For more information regarding Tuffcare Products & Services, please visit www.tuffcare.com or call 800-367- 6160. Part#:070714JC-2020 /T2010Version No:002...
-
Page 2: Table Of Contents
Table of Contents Forward..............1 Safety Precautions ..........2-3 Main Components............4 Assembly Instructions ..........5-8 Operation Instructions..........9 Preventative Maintenance ........10 The Disposal of the Bed & Accessories ……..……11 Product Specification…….……………………...…..12 Warranty Information........ Back Cover... -
Page 3: Forward
Forward Congratulations on your purchase of a Tuffcare® homecare bed! Our homecare bed is engineered and designed with durability & easy maintenance in mind. Read through this manual and get acquainted with your institutional bed. Follow the maintenance schedule to ensure proper function of your bed. -
Page 4: Safety Precautions
Safety Precautions • Keep fingers and arms away when mechanism is moving. Rotating Parts. • Pinch Point. Keep fingers and arms away when bed is in movement. • Do not operate your institutional bed until you have read and fully understand this manual. •... - Page 5 Symbols Description Manufacture Name & Address Environmental Conditions of Temperature for Shipping & Storage Environmental Conditions of Humidity for Shipping & Storage Environmental Conditions of Atmospheric Pressure for Shipping & Storage Caution for shipping & storage package “ Fragile”, “ Handle with Care”, “Keep Dry” CE Certification Logo Attention Double Isolation...
-
Page 6: Main Components
Main Components Before unpacking, inspect for any obvious damage to the carton and contents. If damage is found contact your dealer. The homecare bed comes packaged in two cartons. Carefully unpack the components. When removing the head and foot frame out of the box, do not separate the two as there’s a motor cord attaching them. -
Page 7: Assembly Instructions
Assembly Instruction 1. First assemble the foot & head frame. It can be assembled with the foot section (A) upside down, flat on the floor with the metal rods facing the floor, or with the foot section on its side, whichever is easier. Motor or cranks should be on the left side. - Page 8 3-1. For T2020 - Then rotate the bed to have the top setting facing up. Line up the two holes on both ends of the frame, and re-secure the hex bolts in middle of frame on both sides. 3-2. For T2020 - Connect both the head and foot motor drive shafts to the lifting arms. Start with the drive shafts on head frame A, and work your way to the one on foot frame B.
- Page 9 4-1, For T2010 – Continued from Step 2, pull to release the cotter pin from the clevis holding pin. Align the drive shaft hole with the holes on the lifting plate. Re-secure the holding pin on both sides of the left plate. Then reattach the cotter pin to lock. Repeat on Head Section.
- Page 10 A4, Plug hand pendant into motor. Figure A-4 Figure 4-3 4-3. For T2010 - Then rotate the bed to have the top setting facing up. Line up the two holes on both ends of the frame, and re-secure the hex bolts in middle of frame on both sides. Continued on Step 5 5.
- Page 11 8. A spare battery backup pack is outfitted in case of power failure. For T2020 - It is located near the main control unit on the foot frame. For T2010 - It is located on motor next to power cord.
- Page 12 9. For T2020 The battery pack uses three household 9 volt batteries (not supplied). For T2010 The battery pack uses one household 9 volt batteries (not supplied). It is important to keep the battery pack vacant until the bed is needed. Pre-installing the batteries into the pack will only drain the batteries and corrode the contact points.
-
Page 13: Operation Instructions
Operation Instructions 1. Make sure the bed power cord is plugged into a grounded 110 Volt AC outlet. • Operating this device with any part of the body in the frame can result in injury. Do not place arm or head into the frame while operating. Stand clear of device frame before operating. •... -
Page 14: Preventative Maintenance
Preventative Maintenance 1. Cleaning – Tuffcare recommends the following cleaning procedures be conducted between uses and at least one a year. 1.1, Unplug the power code of electric beds before performing maintenance. 1.2, Wide down with disinfectant. Allow to dry completely. -
Page 15: The Disposal Of The Bed & Accessories
The Disposal of the Bed & Accessories When the bed and accessories are broken or no longer be useable, the bed and accessories may be discarded for recycle. Please contact your provider or Tuffcare at 800-367-6160 for more detail. -13-... -
Page 16: Product Specification
Product Specification Century Semi Electric – T2020/T2010 Model & Standard 36” x 80” Sleep Surface Features Overall Width: 36 inches : Overall Length: 88 inches Max. patient weight 360 lbs Safety working load 360 lbs Rating 3.6 AMP(120V), 60 Hz... - Page 17 This product needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided, and this unit can be affected by portable and mobile RF communications equipment. * Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in incorrect operation of the unit.
- Page 18 Guidance and manufacture’s declaration – electromagnetic immunity The T4020 is intended for use in the electromagnetic environment specified below. The customer or the user of T4020 should assure that it is used in such an environment. Electromagnetic environment - Immunity test IEC 60601 test level Compliance level guidance...
- Page 19 <5% U <5% U (>95% dip in U (>95% dip in U for 5 sec for 5 sec Power frequency 3 A/m 3 A/m Power frequency magnetic fields (50Hz/60Hz) should be at levels characteristic magnetic field IEC of a typical location in a typical 61000-4-8 commercial or hospital environment.
- Page 20 Guidance and manufacture’s declaration – electromagnetic immunity is intended for use in the electromagnetic environment specified below. The customer or the T4020 user of the should assure that it is used in such an environment. T4020 Immunity IEC 60601 test Compliance Electromagnetic environment - guidance test...
- Page 21 NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
- Page 22 Recommended separation distances between portable and mobile RF communications equipment and the T4020 . The T4020 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the T4020 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the T4020 as recommended below, according to the maximum output power of the communications equipment.
- Page 23 Tuffcare® control. The evaluation will be solely determined by Tuffcare®. The warranty shall not apply to problems arising from normal wear, or failure to follow instructions, or if parts are not manufactured by Tuffcare®, or do not comply with original equipment specifications that are added to Tuffcare®...
