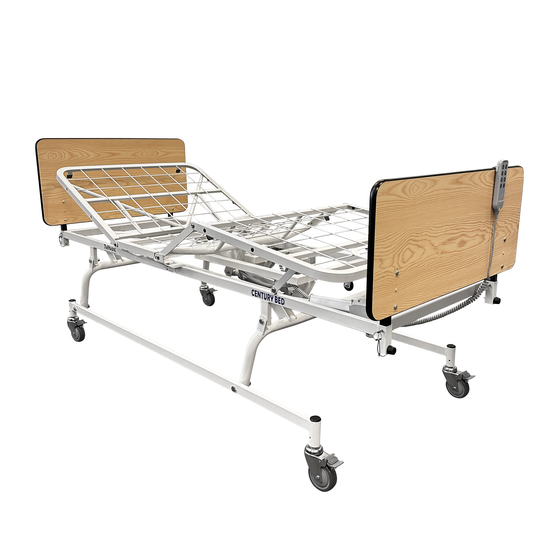

Tuffcare Century TLN3120 Operation Manual

Institutional low bed
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Century TLN3120 , TLN 4220
Institutional Low Bed
Operation Manual
ATTENTION
W W W . T U F F C A R E . C O M
Before using this Medical Device read this manual. If you are unable to
understand, contact your equipment provider for technical support before
attempting to use this product.
TUFFCARE. ALL RIGHTS RESERVED
CENTURY_TLN_V2.1
©

Advertisement

Table of Contents
loading

Related Manuals for Tuffcare Century TLN3120

Summary of Contents for Tuffcare Century TLN3120

  • Page 1 Century TLN3120 , TLN 4220 Institutional Low Bed Operation Manual ATTENTION W W W . T U F F C A R E . C O M Before using this Medical Device read this manual. If you are unable to understand, contact your equipment provider for technical support before attempting to use this product.

  • Page 2: Table Of Contents

    Locking/Unlocking the Caster Brakes Raising/ Lowering the Bed Control Panel Functions 13 - 14 Congratulations on your purchase of a TUFFCARE Century bed. Our institutional bed is specially engineered and designed for Junction Box Functions Alzheimer residents or others with chronic impairments which Raising/Lowering the Bed Side Rails will reduce their degree of independence in activities of daily living.

  • Page 3: Safety Precautions

    Follow the Safety Warnings and Operating Instructions in the service/User’s manual. brackets. Contact your dealer or visit WWW.TUFFCARE.COM. • Be sure that bed side rails are properly attached on main frame before 1.
  • Page 4 PRODUCT SPECIFICATION ASSEMBLY WARNING Control Operation: Triple DC Motors System with 4 Use only Tuffcare parts to complete this bed assembly. Function Pendant ASSEMBLING THE HEAD/FOOT BOARD ON THE MAIN FRAME Bed Fabric Height: 9.75 - 24.5 inches Note: Check Head Board (Size: 36” or 42”x15”), Foot Board Sleep Surface: TLN3120 –...
  • Page 5 ASSEMBLING SWING-DOWN HALF BED SIDE RAILS Note: Secure the caster locks in place to prevent the bed 1. Install headboard and fooboard, moving. using 2 pcs of phillips pan head screws to secure the headboard or footboard on supporting bars and use hole plug to cover the screw.
  • Page 6 Mattress Stop 4. Install bolt and tighten into the holes while holding the nut with your other hand. 5. Use 7/8” wrench (bolt) & ¾” wrench (Nut) to secure the swing bars on top head section frame. There is one mattress stop located on the end of the bed surface.

  • Page 7: Operation

    OPERATION OPERATION RAISING/LOWERING THE BED PREPARING THE BED FOR USE 1. Make sure all of electronic components are well connected, and all of wires are clear from moving parts. 2. Check and tighten all hardware BEFORE use. WARNING Make sure all four wheel locking brakes are engaged to prevent bed from shifting.

  • Page 8: Junction Box Functions

    PENDANT FUNCTIONS JUNCTION BOX FUNCTIONS Control of all of electronic components. Press indicated buttons to move the bed up and (or) down. A. Green LED Indicator Light B. Head Section C. Foot Section D. Head & Foot Section E. Hi-Low Section A.

  • Page 9: Maintenance

    Tuffcare bed side rails. LUBRICATING THE BED • A light grease lubricant may be applied to the ball bearing and swivel of the casters every three months.

  • Page 10: Warranty

    ® freight charges will be prepaid by Tuffcare . For warranty service, please contact the authorized dealer from whom you purchased your Tuffcare ® capacity of bed. products. In the event that you do not receive satisfactory warranty service,...
