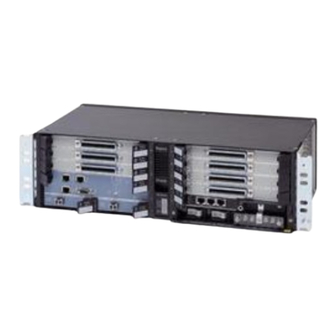

Allied Telesyn™ 910x
integrated Multiservice Access Platform
Installation Guide
Release 7.0 (and up unless reissued)
Issue 1
© 2005 Allied Telesyn Networks. All rights reserved. Information subject to change without notice.
Download from Www.Somanuals.com. All Manuals Search And Download.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 910 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allied Telesis 910 Series

Summary of Contents for Allied Telesis 910 Series

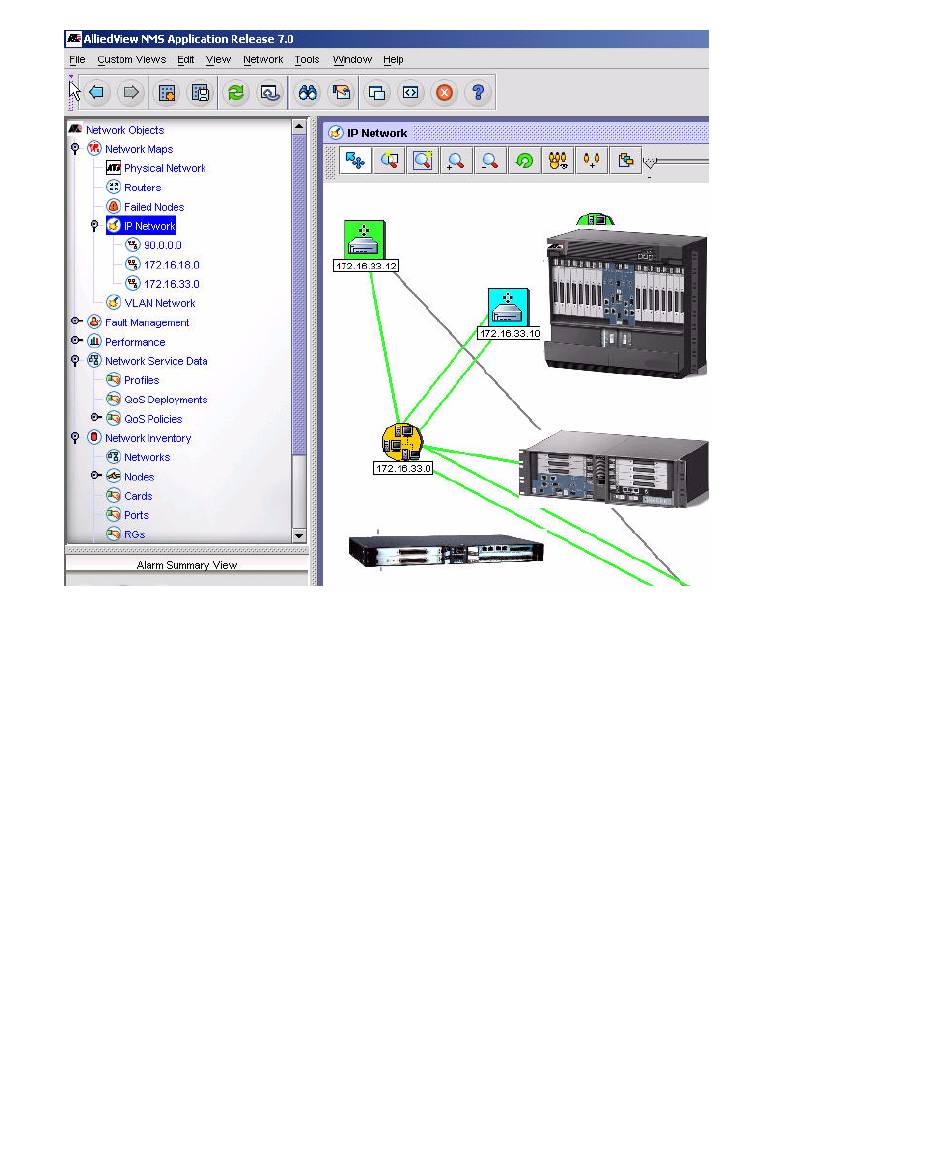

  • Page 1 Allied Telesyn™ 910x integrated Multiservice Access Platform Installation Guide Release 7.0 (and up unless reissued) Issue 1 © 2005 Allied Telesyn Networks. All rights reserved. Information subject to change without notice. Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 2 Introduction Congratulations on your purchase of a Allied Telesyn™ 910x, integrated Multiservice Access Platform (iMAP) product. This product is part of a family of products that leverages Ethernet switching technology to offer service providers a range of services, including video over xDSL. Who Should Read This Guide? This document provides an outline for installation and turn up of the Allied Telesyn 910x product, from the unpacking of materials to setting up the initial user interface.

  • Page 3: Table Of Contents

    Table of Contents 1 Installation of Allied Telesyn 9100- - - - - - - - - - - - - - - - - - -1-1 1.1 Installation Overview for the 9100 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1 1.1.1 Allied Telesyn 9100 Configuration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1 1.2 Following Procedures for the 9101, 9102, and 9103 - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2 1.3 Selecting a Site for the 9100- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2...
  • Page 4 1.11.1 Install the CFC12- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-24 1.11.2 Install the Service Module- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-25 1.11.3 Install the SFP Module - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-25 1.11.4 Install Filler Plates (FPF) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-26...

  • Page 5: Installation Of Allied Telesyn 9100

    1. Installation of Allied Telesyn 9100 1.1 Installation Overview for the 9100 1.1.1 Allied Telesyn 9100 Configuration The Allied Telesyn™ 9100 is shelf mounted with one Central Fabric Controller (CFC12) and Service Modules (SMs) that depend on customer requirements. (Refer to the Allied Telesyn iMAP Component Specification for which SMs can be used.) Table 1-1,...

  • Page 6: Following Procedures For The 9101, 9102, And 9103

    Following Procedures for the 9101, 9102, and 9103 Allied Telesyn 9100 Configuration Allied Telesyn 9101 - Example Configuration FIGURE 1-1 Allied Telesyn 9102 / 9103 - Example Configuration FIGURE 1-2 Note the following differences between the 9102/3 and the 9101: •...

  • Page 7: 9101 Site Requirements

    9101 Site Requirements Selecting a Site for the 9100 1.3.1 9101 Site Requirements The Allied Telesyn 9101 is installed in a environment that is affected by the existing installed equipment and the specific requirements of the Allied Telesyn 9101 shelf. Refer to Table 1-2.

  • Page 8: 9102/9103 Site Requirements

    Selecting a Site for the 9100 9102/9103 Site Requirements 1.3.2 9102/9103 Site Requirements The Allied Telesyn 9101 is installed in a environment that is affected by the existing installed equipment and the specific requirements of the Allied Telesyn 9102/9103 shelf. Refer to Table 1-3.
  • Page 9 9102/9103 Site Requirements Selecting a Site for the 9100 Telesyn 9100 Space Requirements for Open Rack Environment (Table 1-2 Table 1-3) FIGURE 1-3 Telesyn 9100 Installation Guide (Installation of Allied Telesyn 9100) Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 10: Setup Checklist

    Setup Checklist 9101 Parts Included in Order 1.4 Setup Checklist 1.4.1 9101 Parts Included in Order Allied Telesyn provides and ships certain parts with each order. Table 1-4 lists the items that are shipped with the 9101 Note: If any of these items are not included, contact your local Allied Telesyn representative Part Checklist for 9101 TABLE 1-4 Check...

  • Page 11: 9102 / 9103 Parts Included In Order

    9102 / 9103 Parts Included in Order Setup Checklist 1.4.2 9102 / 9103 Parts Included in Order Table 1-6 lists the items that are shipped with the 9102. Note: If any of these items are not included, contact your local Allied Telesyn representative. Part Checklist for 9102 TABLE 1-6 Check...

  • Page 12: Shelf Mounting Options

    Shelf Mounting Options 9101 Mounting Options Table 1-8 lists the items that are to be provided by the customer. Customer Item Checklist TABLE 1-8 Item Quantity Description OAM cable RJ-45, connectorized, Cat 5 Power Standard AC cable (3 prong) Cabling Console RJ-45, connectorized, Cat 5 cable...
  • Page 13 9101 Mounting Options Shelf Mounting Options Front mount option for 9101 FIGURE 1-4 Place the brackets in the appropriate location as shown in Figure 1-4. Using the M3 x 6mm screws, mount the front brackets. Telesyn 9100 Installation Guide (Installation of Allied Telesyn 9100) Download from Www.Somanuals.com.
  • Page 14 Shelf Mounting Options 9101 Mounting Options 1.5.1.2 Center Mounting Option - 9101 The bracket is mounted on the center of the 9101 unit as illustrated in Figure 1-5. Mount the bracket following the steps of Section 1.5.1.1. Mid-mount option for 9101 FIGURE 1-5 1-10 Telesyn 9100 Installation Guide (Installation of Allied Telesyn 9100)

  • Page 15: 9102/3 Mounting Options

    9102/3 Mounting Options Shelf Mounting Options 1.5.2 9102/3 Mounting Options Because of the depth of the 9102/3 unit, there are adjustable bracket extensions, and attached to these extensions are the rear brackets. Note: Regardless of the mounting option chosen, the rear brackets must be used. 1.5.2.1 Front Mounting Option Place a bracket in the appropriate location as shown in Figure...
  • Page 16 Shelf Mounting Options 9102/3 Mounting Options 1.5.2.2 Center Mounting Option The bracket is mounted on the center of the 9101 unit as illustrated in Figure 1-7. Mount the brackets following the steps of Section 1.5.2.1. Mid-Mount for 9102/3 FIGURE 1-7 1-12 Telesyn 9100 Installation Guide (Installation of Allied Telesyn 9100) Download from Www.Somanuals.com.
  • Page 17 9102/3 Mounting Options Shelf Mounting Options 1.5.2.3 Attaching the Extension Brackets and Rear Brackets Caution: Two persons are required to mount the 9102/3, with one person in front of and another person behind the unit. Note that the rear brackets, as shown in Figure 1-8, are rotationally symmetrical;...

  • Page 18: Wall Mounting Option

    Wall Mounting Option Overview 1.6 Wall Mounting Option 1.6.1 Overview If the customer wishes to wall mount the unit, there is a separate kit available through an Allied Telesyn repre- sentative. This kit includes: • Four brackets that are attached to the unit, two for each side •...

  • Page 19: Installing The Wall Mount

    Installing the Wall Mount Allied Telesyn 9100 Installation Safety Caution: The customer must ensure that the weight of a fully configured unit can be supported by the mounting hardware/support used with the brackets. 1.6.2 Installing the Wall Mount Ensure there is enough space for the unit and associated cables Screw the brackets to the sides of the unit using the screws supplied in the kit.

  • Page 20: Safety Precautions While Working With Electricity

    Allied Telesyn 9100 Installation Safety Safety Precautions While Working with Electricity • The user should not perform any action that creates an unsafe or hazardous situation for themselves or other personnel. 1.7.2 Safety Precautions While Working with Electricity Guidelines when working with electrically powered equipment: •...

  • Page 21: Precautions And Conformance Standards

    Precautions and Conformance Standards Allied Telesyn 9100 Installation Safety Connect the clip from the ESD-preventative device to an unpainted surface of the frame, rack or ESD point on the chassis frame connecting it directly to ground. This ensures that unwanted ESD voltages safely flow to ground.

  • Page 22: Laser Safety Instructions

    Installing Power and Ground for the 9101 Laser Safety Instructions 1.7.5 Laser Safety Instructions Complies with FDA radiation performance standards, 21 CFR Sub- chapter J. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Complies with 21 CFR 1040.10 and 1040.11.

  • Page 23: Connect Power And Ground

    Connect Power and Ground Installing Power and Ground for the 9101 The separate protective earthing terminal provided on this product shall be permanently connected to earth. Before connecting any power (or grounding) cable, ensure the following: Connect to a reliably grounded 48VDC SELV (Safety Extra Low Voltage) source. (SELV - UL60950 - A circuit designed so that its voltages do not exceed a normal and fault value of 42.4 Vpeak or 60 VDC.) The branch circuit overcurrent protection must be rated 15A.
  • Page 24 Installing Power and Ground for the 9101 Connect Power and Ground 9101 power entry module (PEM) FIGURE 1-10 The figure below details the 9100 PEM plug. PEM Plug - Details FIGURE 1-11 1-20 Telesyn 9100 Installation Guide (Installation of Allied Telesyn 9100) Download from Www.Somanuals.com.

  • Page 25: Connect The -48Vdc Office Power Supply To The 9101 Pem Plug

    Connect the -48VDC office power supply to the 9101 PEM plug. Installing Power and Ground for the 9101 1.8.3 Connect the -48VDC office power supply to the 9101 PEM plug. Loosen the screws. Using cables colored as in Figure 1-12, strip each 1/4 in. (6.5 mm). Insert each cable into its appropriate lug on the PEM plug.

  • Page 26: Connect To Power Source (Single Or Dual)

    Installing Power and Ground for the 9101 Connect to Power Source (Single or Dual) 1.8.4 Connect to Power Source (Single or Dual) The user can decide to connect the A and B feeds to a single power source or a different power source. If the customer chooses to use a single power source, jumper the -48 A and -48 B feeds together.

  • Page 27: Installing Power And Ground For The 9102

    Connect Power and Ground Installing Power and Ground for the 9102 1.9 Installing Power and Ground for the 9102 1.9.1 Connect Power and Ground The Allied Telesyn 9102 comes with a pre-installed AC power converter. (The 9103 comes with redundant AC power converters.) With 14 AWG grounding wire (green/yellow insulation), the user connects the ground stud at the rear of the unit to Frame ground.

  • Page 28: Install Card Modules

    Install Card Modules Install the CFC12 1.11 Install Card Modules 1.11.1 Install the CFC12 Note: Do not attempt to install system cards without observing correct antistatic procedures. Failure to do so may damage cards. Take the card from its antistatic container. Hold the card securely with the lock-latch and label on the inside of the chassis.

  • Page 29: Install The Service Module

    Install the Service Module Install Card Modules Detail of the card latch in Open Position (Card Below is Locked) FIGURE 1-15 1.11.2 Install the Service Module The Service Modules can be placed in any of slots 0, 1 and 2. It is recommended that the slots be filled in numer- ical order (0, then 1, then 2).

  • Page 30: Install Filler Plates (Fpf)

    Configure Local Terminal or PC Install Filler Plates (FPF) 1.11.4 Install Filler Plates (FPF) The FPF is needed to keep dust from entering the chassis and to ensure proper airflow. The shelf may overheat or become damaged if these are not properly installed in every unused slot.
  • Page 31 Install Filler Plates (FPF) Configure Local Terminal or PC • Carrier Detect The settings for the CONSOLE port are factory configured with the following default values Note: When using the CONSOLE port, ensure that the terminal emulation software has FLOW CONTROL disabled.: Default Asynchronous Port Settings TABLE 1-9...

  • Page 32: Connect System Cables

    Connect System Cables Service Modules with RJ21connectors 1.13 Connect System Cables The following figure illustrates system cable connector locations. 9101 Cable Connections - To Be Supplied FIGURE 1-16 1.13.1 Service Modules with RJ21connectors Note: Be sure to include in the cable length the overall maximum loop length to the customer premises.

  • Page 33: Sms With Rj45 Connectors

    SMs with RJ45 connectors Connect System Cables 1.13.2 SMs with RJ45 connectors Attach the RJ45 end of the Ethernet cable to the specified port on the FE10 card. FE10 Cable Connector FIGURE 1-18 Note: Each RJ45 cable connected to the FE10 card should be dressed neatly and tightly. Do not permit cables to loop.

  • Page 34: Data Management Cable (Mgmt Port On Cfc12)

    Connect System Cables Data Management Cable (MGMT Port on CFC12) 1.13.5 Data Management Cable (MGMT Port on CFC12) Note: Connect this cable only if the user plans to use the MGMT port for the management interface. Refer to the Allied Telesyn User Guide, Chapter 3. Connect one end of the ethernet cable to the MGMT port and connect the other end to a port that accesses the TCP/IP network, as described in the Allied Telesyn User Guide, Chapter 3.

  • Page 35: Apply Power And Check Startup Sequence

    Data Management Cable (MGMT Port on CFC12) Apply Power and Check Startup Sequence 1.14 Apply Power and Check Startup Sequence For the 9101, insert Fuse A and then Fuse B into the 9101 PEM. For the 9102, set the AC Power Unit to the On position. Observe that the fans should start and airflow should be begin through the unit.
  • Page 36 Apply Power and Check Startup Sequence Data Management Cable (MGMT Port on CFC12) @@@@@@@@@@@" "@@@@@ " @@@@@@@@@@@@@" Allied Telesyn Networks, Inc. Allied Telesyn 12G Central Fabric Controller Version 7.0.0.ALPHA.20050720 (Lab-Only Build) Created on Wed 07/20/2005 at 4:46a Copyright Allied Telesyn Networks, Inc., 2004 ---------------------------------------------- Software Version Information ----------------------------------------------...

  • Page 37: Check The Configuration

    Check software load Check the configuration Check the management logs for any problems by typing the following: > SHOW LOG SEVERITY=CRITICAL > SHOW LOG SEVERITY=MAJOR > SHOW LOG SEVERITY=MINOR Check for any alarm conditions by inputting the following: > SHOW ALARMS ALL Determine if there are any faults as a result of performing Steps 6 and 7.

  • Page 38: Adding Ac Power Module

    Adding AC Power Module Check management interfaces 1.16 Adding AC Power Module To Be Supplied Caution: When adding a power supply, ensure power is not being applied and the switch for the AC supply is in the Off (-) position. 1.17 Allied Telesyn Contact Information If assistance or information is required in the installation of this equipment, contact the following: Allied Telesyn Technical Support:...

  • Page 39: Glossary Of Terms

    2. Appendix 2.1 Glossary of Terms To Be Supplied Telesyn x400 Series - User Guide (Appendix) Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 40: Telesyn 9100 Inventory Form

    Telesyn 9100 Inventory Form 2.2 Telesyn 9100 Inventory Form You can use the following form to record registration information about the Telesyn 9100 and keep with your office records. Note: You may also identify the product with CLI commands. Refer to the Telesyn User Guide. Registration Information for the Telesyn x400 TABLE 2-1 Location...
