Operating Instructions—
SG
502
POWER
When
lit,
indicates
power
is
applied.
FREOUENCY
H<
FREQUENCY
Hz
Calibrated
from
0.5 to 5.0.
Selects
frequency
in
con-
junction with
MULTI-
PLIER.
MULTIPLIER
Multiply
FREQUENCY
Hz
dial setting
by
active push-
button
to
obtain output
frequency.
VAR
AMPLITUDE
0
to
> 40 dB
attenuation
continuously variable.
Square
-wave
output
BNC
connector.
SYNC
INPUT
Connect
to external signal
source
for
synchronization.
RANGf
070
«BI
Sine
- wave
connector.
SG 502
OSCIIUTOR
STEP
ATTEN
Calibrated attenuation
steps.
1430 03

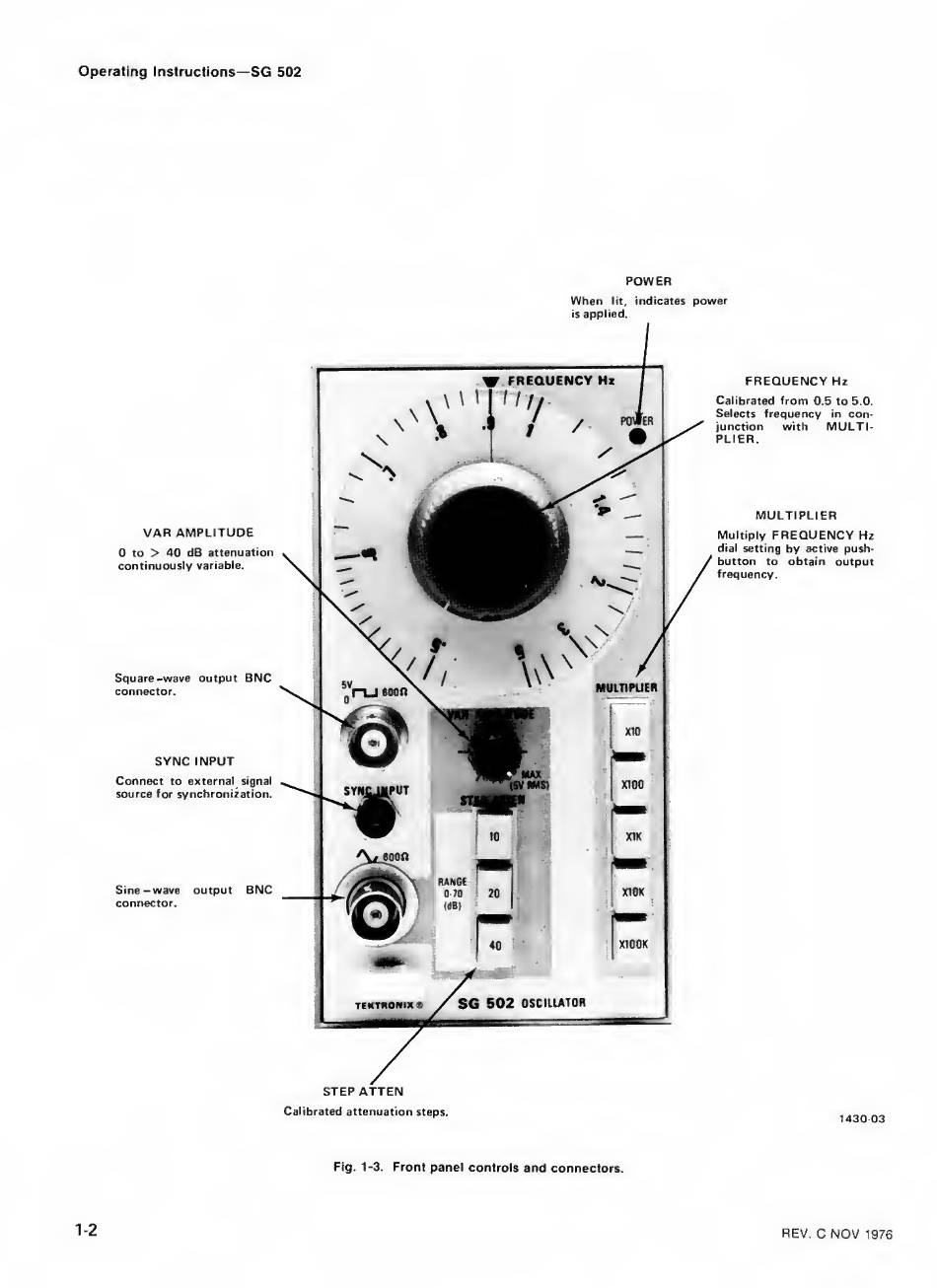

Fig. 1-3. Front panel controls and
connectors.
1-2
REV.
C
NOV
1976
