Summary of Contents for Smeg CWC610

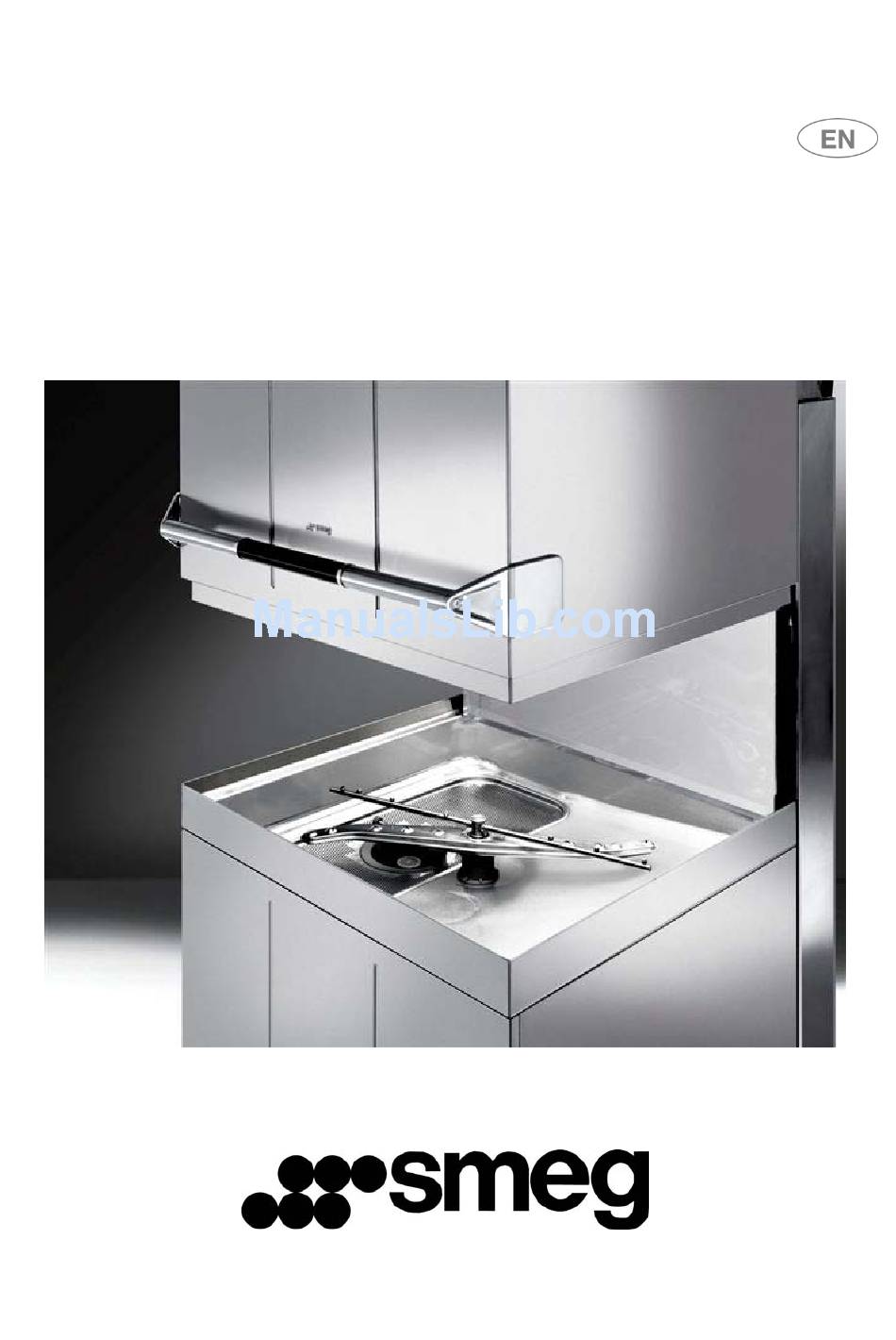

- Page 1 PROFESSIONAL DISHWASHER ...
-
Page 2: Table Of Contents
CONTENTS PRECAUTIONS FOR SAFETY AND USE ..4 TECHNICAL DATA ...6 INSTALLATION AND POSITIONING ...8 INSTRUCTIONS FOR TECHNICAL STAFF ...9 Plumbing hookup ..9 Electrical connection ..9 SET‐UP .. 13 Display Contents ... 13 Note on display of temperatures .. 13 Parameter programming procedure .. 13 Modifiable parameters ... 14 Alarm trigger time thresholds .. 14 ... - Page 3 SMEG Thanks you for choosing one of its products. Read all the instructions in this manual carefully to become familiar with the right conditions for the TECHNICAL INSTRUCTIONS These are intended for the qualified staff who are to install, commission and test the appliance and carry out any servicing and repairs. INSTRUCTIONS FOR THE USER These provide recommendations for use, a description of the controls and the correct procedures for cleaning and maintaining the dishwasher. ‐ CWC 610 proper use of your dishwasher. 3 ...
-
Page 4: Precautions For Safety And Use
1 PRECAUTIONS FOR SAFETY AND USE THIS MANUAL IS AN INTEGRAL PART OF THE DISHWASHER AND MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE APPLIANCE. POSITIONING, HOOKUP, COMMISSIONING, TROUBLESHOOTING AND REPLACING THE POWER CABLEMUST ALWAYS BE CARRIED OUT BY QUALIFIED STAFF. THEAPPLIANCE MUST BE GROUNDED AS REQUIRED BY ELECTRICAL EQUIPMENT SAFETY STANDARDS. THE DISHWASHER IS INTENDED FOR PROFESSIONAL USE ONLY AND MUST ONLY BE USED BY AUTHORISED ... - Page 5 NEVER PLACE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE, WHICH MIGHT CAUSE AN EXPLOSION, INSIDE THE APPLIANCE. NEVER LOAD DISHES DIRTY WITH ASH, WAX OR PAINTS. NEVER USE THE DISHWASHER OR ANY PART OF IT AS A LADDER, SUPPORT OR STAND FOR PEOPLE, ANIMALS OR ANY OBJECT. LEANING OR SITTING ON THE OPEN DOOR OF THE DISHWASHER MIGHT CAUSE IT TO TIP OVER, PUTTING PEOPLE IN DANGER. NEVER LEAVE THE DISHWASHER DOOR OPEN SINCE PEOPLE MIGHT TRIP OVER IT. DO NOT DRINK ANY WATER LEFT IN THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM. THE APPLIANCE IS NOT SUITABLE FOR USE BY JUVENILES OR PERSONS WITH REDUCED PHYSICAL, SENSORIAL OR MENTAL CAPACITIES, OR THOSE WITHOUT THE NECESSARY KNOWLEDGE AND EXPERIENCE. SUCH PERSONS MAY ONLY USE THE APPLIANCE UNDER THE SUPERVISION OF A PERSON RESPONSIBLE FOR THEIR SAFETY. ‐ CWC 610 5 ...
-
Page 6: Technical Data
2 TECHNICAL DATA Supply voltage Frequency Max. power absorption at 400V 3N ~ Boiler heating element power at 400V 3N ~ Tank heating element power Water intake pressure Water intake temperature Max. intake water hardness Rinse cycle water consumption Boiler capacity Tank capacity Standard cycle duration with intake water at 50°C Noise level Degree of protection Net weight Power supply cable type Fuse 400V 3N ~ C 10 kW 5x4 ‐ CWC 610 kPa (bar) ◄HAR► S C = Power Supply Cable S = master switch 32A ... - Page 7 APPLIANCE DIMENSIONS AND CONNECTIONS KEY TO LETTERS USED IN DIAGRAM C SOLENOID VALVE EARTH TERMINAL Q E ELECTRICITY SUPPLY CABLE P PERISTALTIC HOSES S DRAIN HOSE ‐ CWC 610 7 ...
-
Page 8: Installation And Positioning
3 INSTALLATION AND POSITIONING INSTALLATION and POSITIONING Bring the dishwasher to the installation site, remove the packaging and check the appliance and components for damage; any damage found must be reported to the transporter in writing. The packaging components (plastic bags, expanded polystyrene, nails, etc.) must not be left within reach of children and pets since they are potentially dangerous. All packaging materials used are environment‐ friendly. They can be kept without constituting any hazard, or may be disposed of at a specialist waste disposal centre. The plastic components suitable for recycling are marked as follows: PE polyethylene: external packaging film, bag containing the instructions, protective bags. PP polypropylene: straps. PS expanded polystyrene: corner guards, top of packaging. Wooden and cardboard components can be disposed of in accordance with the relevant regulations. When the product is decommissioned it must not be dumped in the environment; it must be disposed of in accordance with the relevant regulations. All metal parts are in stainless steel and can be removed. The plastic parts are marked with the symbol identifying the material used. POSITIONING: Caution: the indoor system and premises in which equipment for institutions is installed must comply with the relevant regulations. The manufacturer declines all liability for direct or indirect injury or damage deriving from failure to comply with these regulations. Before installation, check that there are no objects or materials in the vicinity which may be damaged by steam or splashes of washing solution, or that any such items are suitably protected. ... -
Page 9: Instructions For Technical Staff
4 INSTRUCTIONS FOR TECHNICAL STAFF 4.1 Plumbing hookup Water supply and drain connection The water pipelines and electricity supply cable lead out of the bottom right‐ hand corner of the appliance. Connect the water intake hose to a connector with ¾” gas threaded fitting, fitting the filter A provided (in models with aquastop, the filter and ring‐nut form a single unit). The connection to the water mains must only be made with new hoses; the use of old or worn hoses is not permitted. The dynamic water supply pressure must be between 2 and 6 bar; if it is higher a pressure reducer must be installed. If the pressure is less than 2 bar it might be necessary to fit a special pump on the appliance to ensure optimal performance. Contact the After‐Sales Service. It is essential to fit a main stop tap on the water intake deliver pipeline; the tap must be accessible after installation of the appliance, so do not install it behind the dishwasher The stated cycle duration applies to appliances supplied with hot water >50°C<60°C If the dishwasher is supplied with cold water, the cycle duration might increase depending on the intake water temperature. The dishwasher is fitted with a drain pump and can operate with drain connections on the floor or wall. Refer to the connection diagram for the maximum permitted height of wall drains – (see TECHNICAL DATA) ... - Page 10 overvoltage class III conditions. Warning !!! The dishwasher is always powered up unless the master switch is turned off. Connect the appliance to the user’s earth system. The terminal for the connection is in the bottom right‐hand corner of the appliance. The earth wire (PE) is yellow‐green in colour, the neutral wire (N) is blue and the live wires (L1, L2, L3) are black, grey and brown. THE POWER SUPPLY CABLE MUST BE REPLACED BY THE MANUFACTURER OR AN AUTHORISED SERVICE CENTRE TO PREVENT ALL RISKS. ...
- Page 11 Figure 1 Appliance three‐phase electrical system diagram ‐ CWC 610 11 ...
- Page 12 First start‐up The electrical protection system must undergo a functional test before the appliance is put into operation. The appliance must be installed and/or inspected by qualified staff, who will start it up for the first time and provide the relevant operating instructions. Preparing for use (important) The rinse aid dispenser is fitted on all models, the detergent dispenser only on some. If both dispensers are present put the external detergent and rinse aid containers in place and insert the respective intake hoses on the rear of the appliance into them. ...
-
Page 13: Set-Up
5 SET-UP Set‐up During first start‐up, the functions/parameters listed below must be set or adjusted: A series of operations can be carried out when the dishwasher is first installed to customise it to the user's requirements. To modify the parameters, proceed as follows. 5.1 Display Contents The two green digits provide the following information: Appliance off but powered up: all decimal points on both digits Appliance on: Boiler temperature Washing phase: Tank temperature ... -
Page 14: Modifiable Parameters
5.4 Modifiable parameters This table lists the model choice or cycle and temperature option parameters. F/M ID Description M P0 Appliance Type F P1 Appliance Model M P2 Boiler temperature M P3 Tank temperature M P4 Thermostop option M P5 Soft Start option M P6 Boiler temperature offset M P7 Tank temperature offset M P8 Real temperature display F P9 Tank probe type ... -
Page 15: Adjusting Detergent And Rinse Aid Dispensing
5.6 Adjusting detergent and rinse aid dispensing Caution: ensure that the appliance is not powered up ‐ ELECTRIC SHOCK HAZARD RD Detergent dispensing regulator screw (on some models only) RB Rinse aid dispensing regulator screw RV Inspection panel removal screw RD: Detergent dispensing regulator screw. (on some models only ) Adjustments are made using the adjuster screw AS SHOWN. The quantity dispensed is reduced by turning anticlockwise and increased by turning clockwise. ‐ CWC 610 RB: Rinse aid dispensing regulator screw Adjustments are made using the adjuster screw AS SHOWN. ... -
Page 16: Malfunctions Shown On The Display (For The Technician)
6 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE TECHNICIAN) The dishwasher is able to identify a number of malfunctions and show them on the display. If the problem persists after the dishwasher has been switched off and back on, proceed as described below: E.1 Boiler temperature probe malfunction E.2 Tank temperature probe malfunction E.3 Water intake malfunction E.4 Boiler overheating. E.5 Tank overheating E.6 Water not pumped out of tank E.7 Boiler heating malfunction (does not heat up) E.8 Tank heating malfunction (does not heat up) ‐ CWC 610 Boiler temperature probe disconnected or not working Tank temperature probe disconnected or not working ... -
Page 17: Instructions For The User
Total emptying button (tank and boiler) L1 power on LED L2 pump‐out in progress LED Short cycle key Medium cycle key Long cycle key L5 short cycle program LED L6 medium cycle program LED L7 long cycle program LED 7.2 Before washing Use only detergents and rinse aids for industrial dishwashers. Do not use detergents intended for hand washing. We recommend the use of Smeg products, specially developed for this dishwasher. ‐ CWC 610 ‐ tank temperature probe faulty or incorrectly positioned Replace circuit board 17 ... -
Page 18: First Use Each Day (Tank And Boiler Empty)
When topping up the tanks, take care not to swap the products; this might damage the dishwasher and cause malfunctions. Do not mix different detergents; this would damage the dispenser device. Failure to comply with this recommendation leads to forfeiture of the warranty entitlement on the appliance’s water system. Industrial dishwasher detergents may cause serious irritation. Comply carefully with the instructions provided by the detergent producer on the pack. 1. Turn on the 2. The level of mains water tap detergent and rinse (user) aid in the containers. 7.3 First use each day (tank and boiler empty) Display shows ... - Page 19 When the hood is closed again, the last program set is repeated. ‐ CWC 610 Load the dishes and close the hood. Select the programme required by pressing one of the three buttons; the LED of the selected program flashes and the other two go out. The cycle starts after the hood has been raised and lowered. While washing is in progress the display shows the water temperature in the tank. During rinsing, it shows the boiler temperature. At the end of the program the program LED comes on and “End" flashes on the display. Remove the dishes ...
-
Page 20: Choosing The Program
7.4 Choosing the program PROGRAM Short Glasses and cups Medium Glasses, cups and plates with light dirt Long Very dirty dishes and cutlery (*) The cycle duration stated above is guaranteed if the appliance is connected to hot water > 50°C <60°C If the dishwasher is supplied with cold water, the cycle duration might increase depending on the intake water temperature and the "thermostop" setting. 7.5 Changing the program (not possible once the program has started) Glasses Load glasses upside down. ... - Page 21 TOTAL PUMP‐OUT AT THE END OF THE DAY The dishwasher is able to perform a pump‐out and self‐cleaning cycle with automatic switch‐off. After a total pump‐out the filters should be cleaned as described in the relevant point. ‐ CWC 610 Press the pump‐out button for about 2”, the LED flashes and the pump‐out and automatic tank cleaning phase starts. When pump‐out is complete the appliance switches to “OFF” status. (only 2 digits lit on the display) 21 ...
-
Page 22: Maintenance And Cleaning
8 MAINTENANCE AND CLEANING Although no particular scheduled maintenance is required, users are advised to have the dishwasher checked by a specialist technician twice a year. N.B. the manufacturer accepts no liability for wilful damage or damage deriving from carelessness, neglect, failure to comply with instructions, regulations and standards or incorrect connections, which lead to forfeiture of warranty cover. If possible, leave the door ajar when not in use; Clean surfaces thoroughly and often with a damp cloth; use neutral, non‐abrasive detergents which do not use chlorine compounds, which corrode and damage stainless steel. Do not use the products mentioned above even when cleaning the floor underneath or in the vicinity of the dishwasher, to ensure that fumes or drops cannot damage the steel surfaces. The dishwasher has IPX5 protection but pointing water jets straight at it for cleaning is ... -
Page 23: Routine Inspection Of The Spray Arms (Once A Week)
8.2 Routine inspection of the spray arms (once a week) Remove the top and bottom spray arms by unscrewing the central screw and unscrew the caps from the ends of the rinsing arms as shown. Do not unscrew the nozzles. Clean the holes and nozzles under a jet of clean running water; do not use tools which might cause damage. Reassemble the spray arms with care. TOP SPRAY ARMS stainless steel Clean the outside of the appliance with a damp cloth and neutral soap, rinsing and drying thoroughly. 8.3 Lengthy periods out of use If the dishwasher is to be out of use for a fairly long period of time, the detergent and rinse aid dispenser devices must be emptied to prevent crystallisation and damage to the pumps: remove the ... -
Page 24: Troubleshooting
9 TROUBLESHOOTING How to deal with any problems without calling the after‐sales service PROBLEM LIGHT L1 DOES NOT COME ON WASHING PROGRAM DOES NOT START POOR WASHING RESULTS INADEQUATE RINSING STAINS ON GLASSES AND CUTLERY WATER IN TANK AFTER PUMP‐OUT ‐ CWC 610 POSSIBLE CAUSE Mains power failure The dishwasher has not yet finished filling. Spray arm washing holes blocked by dirt or limescale Filter fouled Too little or unsuitable detergent or rinse aid No or not enough detergent or rinse aid being supplied: detergent or rinse aid not being taken from the relative container. Plates/glasses badly arranged Low washing temperature Inappropriate cycle set ... - Page 25 PROBLEM DISHES NOT PROPERLY DRIED ‐ CWC 610 POSSIBLE CAUSE Low rinsing temperature due to thermostop OFF and/or water intake temperature below 50° 25 POSSIBLE REMEDY connection diagram. Check that the water supplying the appliance is at least at 50° If the problem persists call the after‐ sales service ...
-
Page 26: Malfunctions Shown On The Display (For The User)
10 MALFUNCTIONS SHOWN ON THE DISPLAY (FOR THE USER) The dishwasher is able to identify a number of malfunctions and show them on the display. If the problem persists after the dishwasher has been switched off and back on, proceed as described below: E.1 Boiler temperature probe malfunction E.2 Tank temperature probe malfunction E.3 Water intake malfunction E.4 Boiler overheating. E.5 Tank overheating E.6 Water not pumped out of tank E.7 Boiler heating malfunction (does not heat up) E.8 Tank heating malfunction (does not heat up) E.9 Microprocessor failure ... - Page 27 INFORMATION AND AFTER‐SALES SERVICE FOR SMEG PRODUCTS Our Sales Department staff will be able to provide you with information about prices and special offers. Our After‐Sales Department will be able to provide you with guidance about keeping your appliance functioning correctly and put you in touch with your nearest authorised Service Centre. * Maximum cost 14,26 cent./min. including VAT with no charge on answer from landline. * Maximum cost 48 cent./min. including VAT with maximum charge on answer of 15.49 cents including For further details of costs of calls from cell phones contact your operator. Our whole product offering can be viewed at: International customers, please contact your local SMEG distributor. Via Leonardo da Vinci, 4 ‐ 42016 Guastalla (Reggio Emilia) ‐ CWC 610 COMMERCIAL DISHWASHERS VAT from cell phone. www.smeg‐ristorazione.com Smeg S.p.A Tel. +39 0522 8211 ‐ Fax + 39 0522 821453 email ristorazione@smeg.it 19.290.2625.00 13/07/2011 Manual Ed. Date 27 ...
