Summary of Contents for Planika KF22

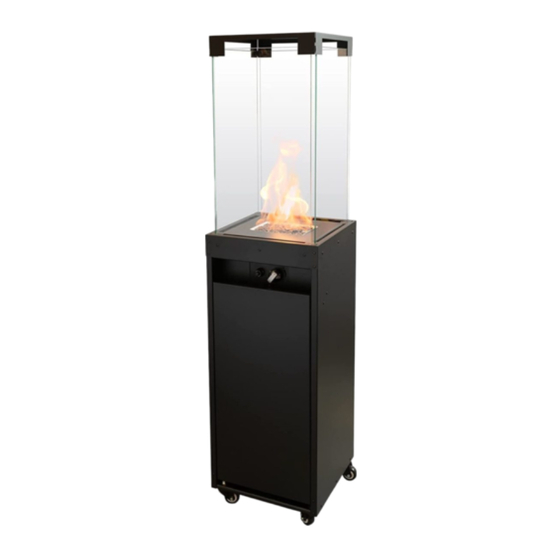

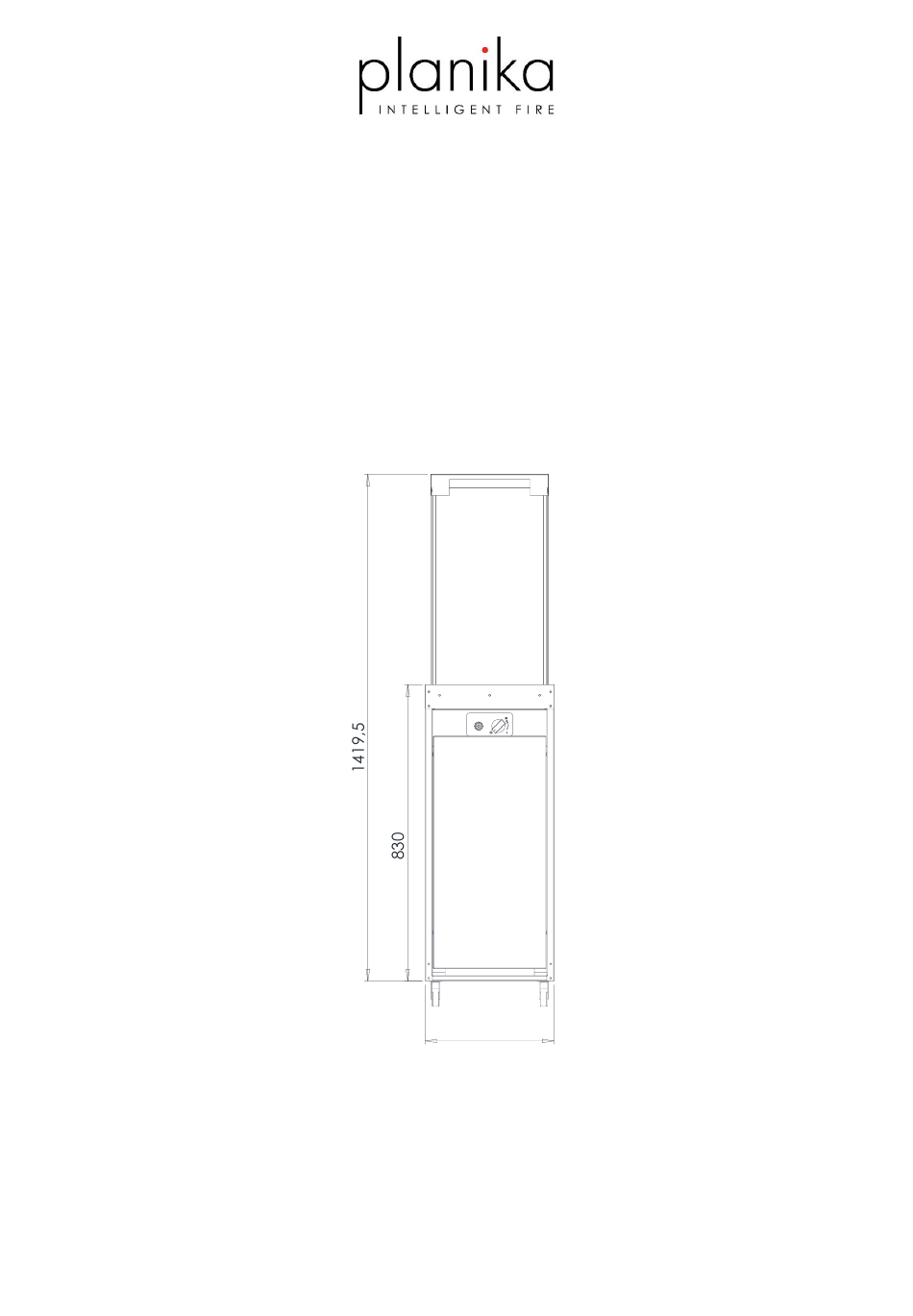

- Page 1 INSTALLATION and USER’S MANUAL KF22 G30/G31 (Propane-Butane/Propane) 360,4 Produced by: Planika Sp. z o.o. Bydgoskich Przemysłowców 10 85-862 Bydgoszcz, Poland Telephone: + 48 52 364 11 60 Copyright Planika Sp. z o.o. www.planikafires.com IG0294#00 10.06.2021...
-
Page 2: Table Of Contents
T IS OBLIGATORY TO READ AND KEEP THIS INSTRUCTION TABLE OF CONTENTS INTRODUCTION ................................. 3 SAFETY INSTRUCTIONS .............................. 4 Safety instruction regarding the use of the gas cylinders................. 5 INSTALLATION ................................6 3.1. Box contents ..............................6 3.2. Unboxing and installation ..........................7 3.3. -
Page 3: Introduction
It is obligatory to acquaint oneself with the below installation manual and user’s manual before committing to the installation and use of the KF22 fireplace. This manual is to be kept safely for the lifetime of the device. CE Declaration of conformity We hereby declare that both the design and construction of a gas heating device manufactured by Planika Sp. -
Page 4: Safety Instructions
A CO2 or a powder fire extinguisher needs to be placed near the device. • During the first ignition the KF22 fireplace needs to be burnt on maximum level for a few hours in order for the elements to acquire correct temperature and for the remains of paint, lacquer and lubricant to evaporate. -
Page 5: Safety Instruction Regarding The Use Of The Gas Cylinders
• If the KF22 is not in use for a longer period of time (e.g. winter time), we advise you to store it inside. • All parts of the KF22 fireplace are made of stain resistant material. -
Page 6: Installation
Filling the gas cylinders is to be commissioned to certified gas filling stations. • Replacement of empty cylinders for full ones is to be conducted only in authorised locations. INSTALLATION 3.1. Box contents • 1x complete KF22 fireplace • 4x Tempered glass screens • 1x bag of decorative stones •... -
Page 7: Unboxing And Installation
Make sure that the device nor its elements weren’t damaged during the transportation (if they were, notify the supplier). • Place KF22 on a flat, paved surface outside of the building, preferably on the place of final installation. Leave sufficient space on the side of the appliance where control panel is located (minimum 1 m). •... -
Page 8: Installation Of The Glass Screen
Carefully remove cardboard and foam foil from the glass screens. • Remove all contaminations from the glass shields which could burn out on the glass during operation of the KF22 (in particular fingerprints). • Install glass shields in the corresponding slots on the top of appliance. -
Page 9: Installation Of The Gas Linkage And Gas Cylinder Replacement
The KF22 is delivered together with an elastic gas linkage which, on one end is connected to the valve of the device and one the other end to the 37mbar regulator (in the twist-on version) ready to be connected to the gas cylinder. - Page 10 Gas cylinder connection Twist-on connection Quick-release 1. Check if the bottle valve is TURNED OFF turning Remove the protection tip. Do not use any tools, it clockwise leave the tip hanging freely. 2. Remove the protection tip and store it for later use.
- Page 11 Disconnection of the gas cylinder Twist-on connection Quick-release Turn off the KF22 – put it into the OFF position. The main burner need to be turned off. 2. Turn the bottle valve into the OFF position 1. Turn the switch into the OFF position.
-
Page 12: Regulator Replacement
5 years. Allowed pressures: 30 mbar, 37 mbar (recommended), 50 mbar. Use only the regulators that comply with the EN16129 European Norm. 2. Turn off The KF22– the „OFF” position. The main burner need to be turned off. 3. Disconnect the regulator from the gas bottle (description above). -
Page 13: User's Manual
• KF22 is equipped with the anti-tilt valve which shuts the device down in case if the fireplace is tilted or collapsed. The valve automatically cuts off the gas supply to the controller and this extinguishes the flame. WARNING!!! make sure the anti-tilt valve is always installed in upward position. -
Page 14: Regulation Of The Flame Size
• Open the valve on gas cylinder. • Press the knob and while still pressing turn it counter-clockwise from position (1) to position (2) Fig 11 – Turning on the device • While keeping the knob still pressed start the flame by pressing the ignition button (3). Fig 12 –... -
Page 15: Device Shutdown
4.3 Device shutdown • To turn off the device, simultaneously press and turn the knob all the way clockwise ( 14). The gas supply will be cut and the flame on burner will be turned off. Fig 14 – Turning off the device •... -
Page 16: Checking For Gas Leaks
If the problem happens again please contact the dealer. 5.2 Checking the flame appearance. • Burn the KF22 on max flame height and check the appearance of the flame. • The flame should be evenly placed on the whole surface of the main burner. -
Page 17: Glass Screens Cleaning
WARRANTY Planika Sp. z o.o. grants the Client guarantee of quality for the smooth operation of the goods specified on the sales document. The warranty is determined for a given period from the date of purchase (based on the warranty card together with the receipt of purchase). -
Page 18: Troubleshooting
TROUBLESHOOTING Warning! Montage, upkeep and service need to be conducted by a qualified professional with appropriate qualification, an appropriate company or the gas supplier. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION CLOSE THE VALVE ON THE GAS CYLINDER IMMEDIATELY. DO NOT USE SMELL OF GAS THE DEVICE UNTIL LEAKS HAVE BEEN REMOVED. - Page 19 SELLER Name: Address: Tel/fax: Date of sale: Seller’s seal and signature BUYER Name: Address: Tel/fax: Date of purchase: The gas fireplace should be installed by a qualified Installer in accordance with the applicable national building regulations and in accordance with the guidelines contained in the Installation and User's Manuals. I hereby declare that having read the User's Manual and the Guarantee Conditions.
