Summary of Contents for Vista VA Series

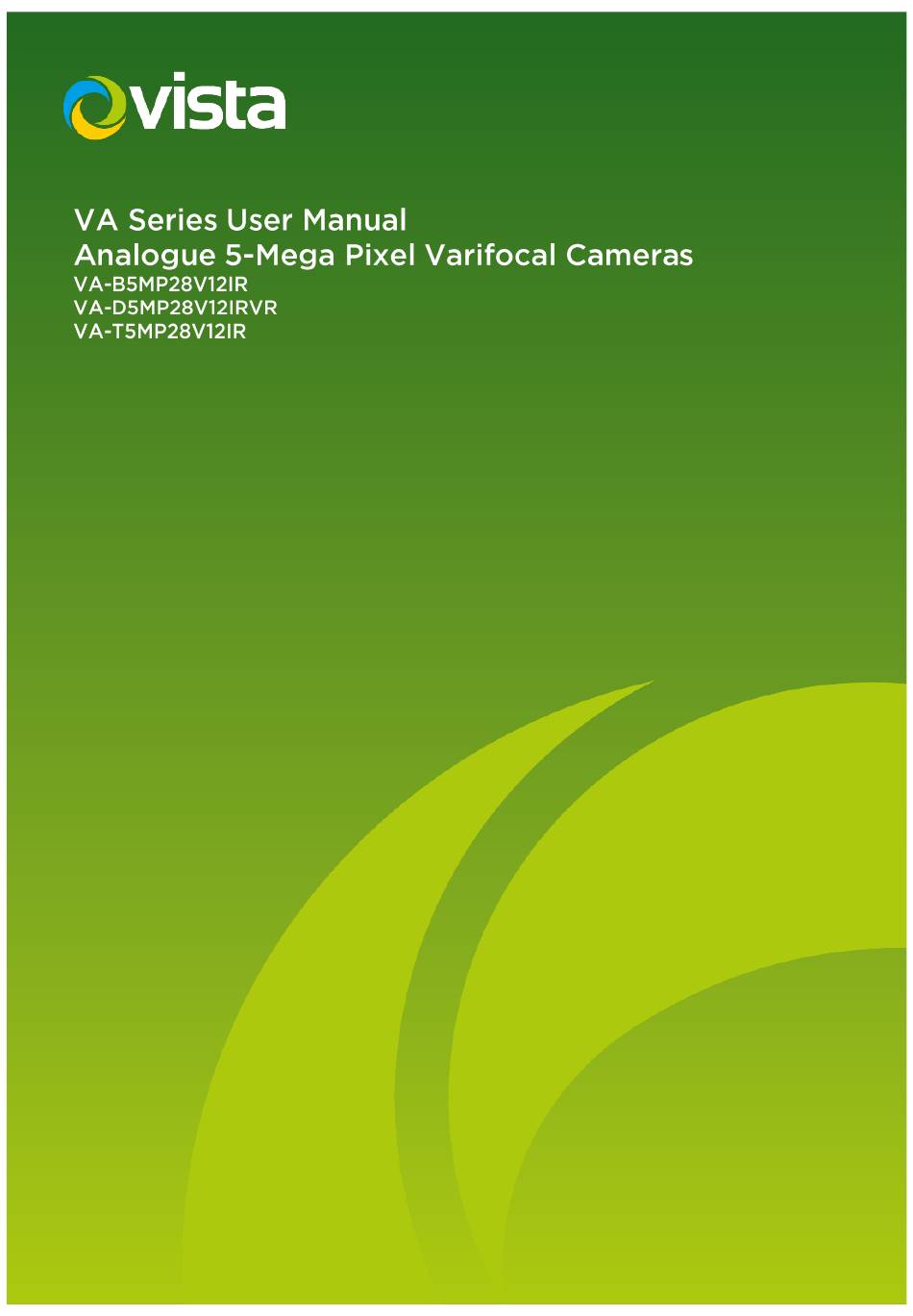

- Page 1 Please read this manual thoroughly before use and keep it handy for future reference. VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11...
- Page 2 Improper use of this equipment can cause severe bodily injury or equipment damage. ** Caution: Improper use of this equipment can cause equipment damage. Note: Contains important information about a product or procedure. VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11...
- Page 3 WARNINGS AND CAUTIONS: To reduce the risk of fire or electric shock, do not insert any metallic objects through the ventilation grills or other openings on the equipment. VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11...
-
Page 4: Important Safeguards

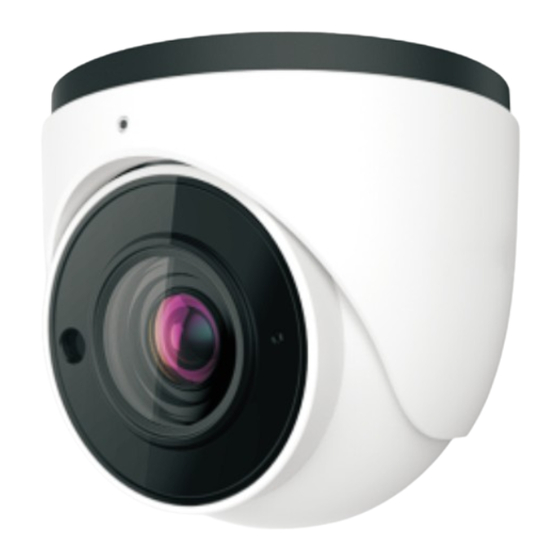

DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO. 15. IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only. VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11... - Page 5 Introduction The Vista VA 5MP analogue camera range provides compatibility with other DVRs and Hybrid recorders. They include 4-in-1 switchable video output (TVI/ AHD/CVI/CVBS) with a high-resolution 5MP sensor and IP 67 compliance for indoor and outdoor surveillance. Cameras in the range include:...
-
Page 6: Packing List
12VDC power source (adapter). See section title Power Supply Specifications. • Tools and additional fasteners (may be required) for mounting the camera. • BNC Video and power extension cable. • Screwdriver. VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11... -
Page 7: Installation
Refer to the relevant section below to fix your camera – using the template, or the cameras base as a guide for drilling holes. The mounting hardware provided is appropriate for most surfaces. However, depending on the surface materials, more appropriate fasteners may be required. VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11... - Page 8 For this series of camera, the optional junction box, can be used instead to mount the camera to the required surface or conduit. Now go to section titled “Configuring the camera OSD menu with DVR” VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11...
- Page 9 For this series of camera, the optional junction box, can be used instead to mount the camera to the required surface or conduit. Now go to section titled “Configuring the camera OSD menu with DVR” VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11...
- Page 10 Live View video streams. Open the OSD display menu If the camera is connected to a Vista VA-DVR, you can quickly setup the on-screen display features including the camera name, date and time formats using the OSD menu. First confirm the VA camera is correctly set for PTZ control on the VA-DVR;...
- Page 11 Now navigate the menus by clicking the PTZ direction keys (Up) or (Down) in the PTZ (Right) keys to select the menu to the left of the camera’s cursor. direction area. Click (Left) or VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11...
- Page 12 AWC→SET: Select AWC→SET to go enter the lock mode of white balance. The camera will now lock the reference value of red and blue under the current colour temperature and stops monitoring colour temperature from now on. VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11...
- Page 13 Select OUTPUT MODE by clicking (D) icon. Then click to go to the sub-menu. Note: the video mode can also be changed via the video mode button on the camera lead. VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11...
-
Page 14: Fault Finding
Make sure camera isn’t facing direct sunlight or Image flickers. fluorescent light, change the camera position. Power Supply Specifications Camera PSU Specification VA-B5MP28V12IR 12VDC @ 1Amp VA-D5MP28V12IRVR 12VDC @ 1Amp VA-T5MP28V12IR 12VDC @ 1Amp VA Series Analogue 5-Mega Pixel Varifocal Camera Manual Ver 1.0 2024-01-11...
