Summary of Contents for Vista VZM22INT600

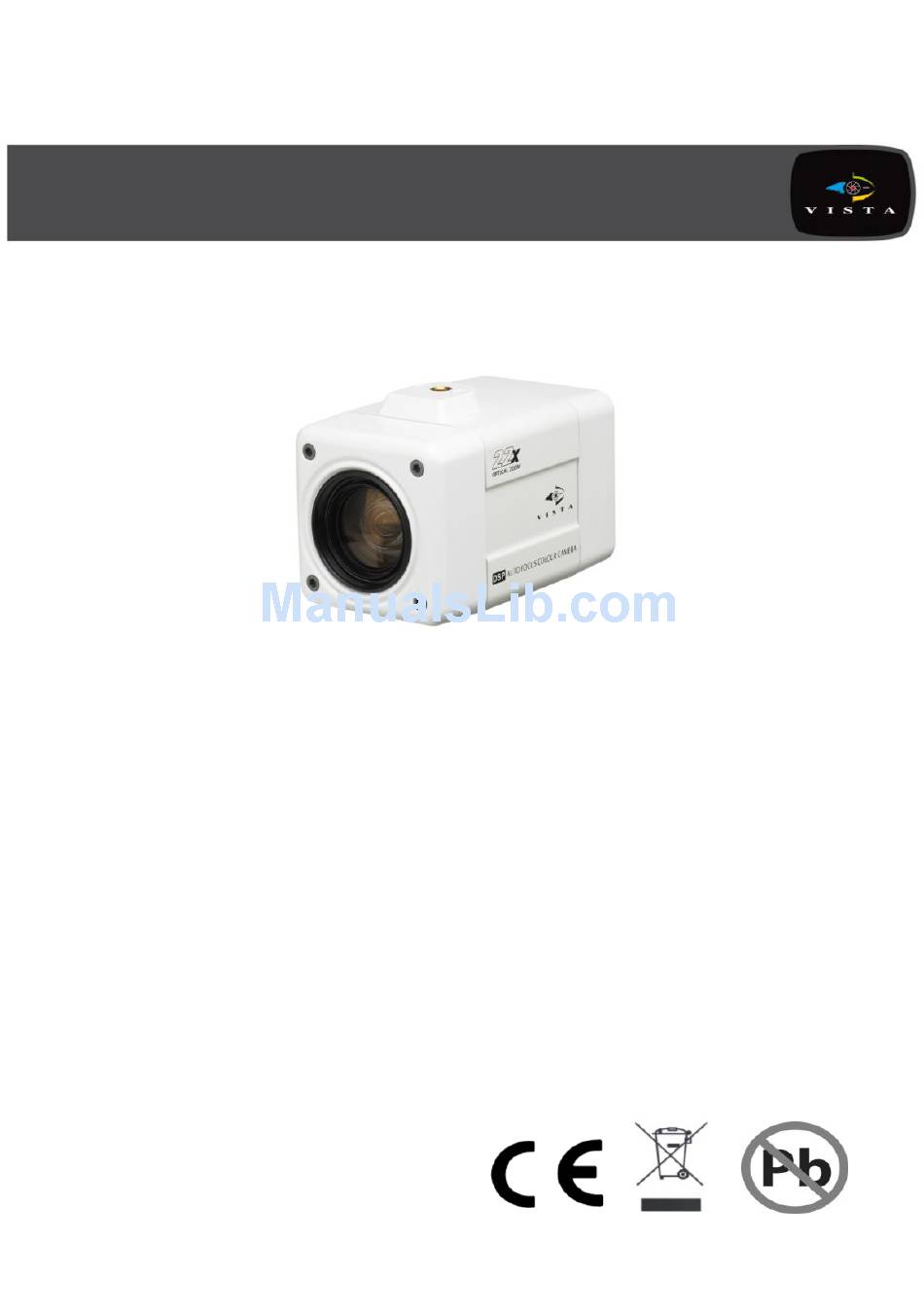

- Page 1 VZM22INT600 Manual MManualManual Set up and user manual for the VZM22INT600 camera...
- Page 2 Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: ...
- Page 3 RoHS Announcement All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
- Page 4 IMPORTANT SAFEGUARDS 1. READ AND RETAIN INSTRUCTIONS Read the instruction manual before operating the equipment. Retain the manual for future reference. 2. CLEANING Turn the unit off and unplug from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use harsh cleansers or aerosol cleaners. 3.
-
Page 5: Ce Compliance Statement
11. OVERLOADING Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 12. SERVICING Do not attempt to service the video monitor or equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. -
Page 6: Table Of Contents
TABLE OF CONTENTS INTRODUCTION -------------------------------------------------------------------------- 7 CONTENTS -------------------------------------------------------------------------------- 8 CAMERA OVERVIEW / CONNECTIONS ------------------------------------------ 8 CAMERA ADJUSTMENT / OSD ----------------------------------------------------- 12 TROUBLESHOOTING AND MAINTENANCE ------------------------------------- 20 DIMENSIONS ------------------------------------------------------------------------------ 21 SPECIFICATIONS ------------------------------------------------------------------------ 22... -
Page 7: Introduction
INTRODUCTION This camera provides high-quality images using SONY 1/4” CCD and digital Signal process LSI. Features: ● High performance SONY 1/4" 760H EXview HAD CCD ● 600TVL Colour & Monochrome resolutions ● 3.9mm ~ 85.8mm Zoom lens (f1.6 – wide / f3.7- tele) ●... -
Page 8: Contents
Perform the following steps to install the camera. PACKAGE CONTENTS VZM22INT600 Camera 12pin Interface Cable Instruction Manual CAMERA OVERVIEW / CONNECTIONS 1. Day & Night Zoom Lens Integrated lens with 22x optical and 16x digital zoom. - Page 9 Description Description 485- RS-485(-) RS-485(+) 485+ RS-232 TXD IN RS-232 RXD IN EXT-OUT External Out Ground EXT-IN External In A/D KEY A/D KEY M/D OUT Motion Far (-), Near (+) FOCUS Detection OUT Common Tele (-), Wide (+) ZOOM 9. TELE, WIDE Button Zoom control: Push "WIDE"...
- Page 10 (Note: MD+ EXT can only be used for alarm input/output. If using EXT to switch D/N mode from external source it will continuously zoom in and out) RS-485 CONNECTION The camera can be controlled remotely by one of the following RS485 protocols: Vista-485 Pelco P Pelco D Fastrax...
- Page 11 EXTERNAL LENS CONTROL NEAR(+) : External Power DC 3V to 12V (YELLOW) : GND (BLUE) FAR(-) : GND (YELLOW) : External Power DC 3V to 12V BNC (BLUE) TELE(+) : External DC 3V to 12V : GND (BLUE) WIDE(-) : GND (GREEN) : External DC 3V to 12V BNC (BLUE) EXTERNAL A/D KEY CONTROL...
-
Page 12: Camera Adjustment / Osd
CAMERA ADJUSTMENT / OSD OSD MAIN SCREEN 1. Camera title 2. Status of the focus mode 3. Status of the zoom position 4. Camera ID MAIN MENU FOCUS MODE Select auto, manual, push auto mode. DISTANCE Select minimum distance in focus between camera and object. - Page 13 WB (White Balance) MODE Select white balance mode. (AWB/WAWB/INDOOR/OUTDOOR/MANUAL/CRS) - AWB Auto white balance mode (2500~9500'K) - WAWB Wide range auto white balance mode (1800~10500'K) -INDOOR Indoor white balance mode -OUTDOOR Outdoor white balance mode -MANUAL Manual mode. You can change R and B Gain manually -CRS Colour rolling suppression mode R GAIN...
- Page 14 SHUTTER Select shutter speed. (1/50~1/100K) (Note: Can only be changed while in SHUT PRI & Manual mode) GAIN Gain control. (0~30DB) Digital slow shutter on/off MAX DSS Select maximum slow shutter value (x2~x128) FLICKERLESS Flickerless on/off BRIGHTNESS Adjust brightness level (0~70) BLC/WDR Either BLC or WDR can be used –...
- Page 15 MODE Select alarm and MD/FD mode (OFF/MD/EXT/FD/MD+EXT/FD+EXT) AREA SEL Select MD area number (1~4) Select MD/FD enable/disable DEFAULT Set MD area as default ADJ TOP/LEFT Adjust the location of the MD area with boundary top and left ADJ BOT/RIGHT Adjust the location of the MD area with boundary bottom and right SENSITIVITY Adjust the sensitivity of MD/FD area (MD: 1~10 / FD: 1~64)
- Page 16 SPECIAL SYNC Select internal or line lock mode. (DC power is internal sync only and not applicable in 12vDC) PHASE Adjust sync phase in line lock mode D/N MODE Select AUTO / COLOUR / BW / EXT mode of operation AUTO –...
- Page 17 BAUD RATE Select serial communication speed (2400/4800/9600/19200bps) PROTOCOL Select the operating protocol. (VISTA-485 / PELCO-P / PELCO-D / FASTRAX) DISP MODE Select display mode (ON / OFF / PUSH ON) ON – Permanently displayed OFF – Off PUSH ON – only active in alarm e.g. motion detection (MD)
- Page 18 TITLE Select camera title upto 26 characters ALARM TEXT If the alarm is occurred, the ALARM TEXT programmed at this menu will be displayed. As per camera title above, upto 26 characters can be used SAVE Save preset parameters of CAM SET MENU. This must be done if changes to the BAUD RATE or PROTOCOL are made...
-
Page 20: Troubleshooting And Maintenance
TROUBLESHOOTING AND MAINTENANCE TROUBLESHOOTING If problems occur, check the installation of the camera with the instructions in this manual and with the other equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. PROBLEM POSSIBLE SOLUTION Nothing appears on the... -
Page 21: Dimensions
DIMENSIONS... -
Page 22: Specifications
Preset 1 ~ 10 Zoom Tour Tour 1 Alarm Mode (On / Off (MD / EXT / MD+EXT / FD+EXT) RS-485 (Vista-485,Pelco-P, D, FastraxII,) / Camera Control ADKey (VZM22/REM) Baud Rate 2400 / 4800 / 9600 / 19200 Camera ID... - Page 23 Norbain SD Ltd, 210 Wharfedale Road, IQ Winnersh, Wokingham, Berkshire RG41 5TP United Kingdom Manual version 1.0 (this manual is subject to change without notice) 50302760A...
