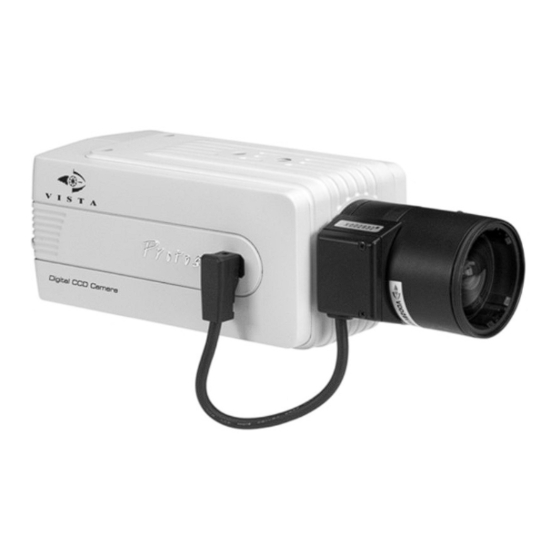

V
Protos
580/4 Installation Manual
Set up and user manual for the
VPC580/4CM
VPC580/4DN
VPC580/4WDR
Cameras

Advertisement

loading
Need help?

Need help?

Do you have a question about the VPC580/4CM and is the answer not in the manual?

Questions and answers

Summary of Contents for Vista VPC580/4CM

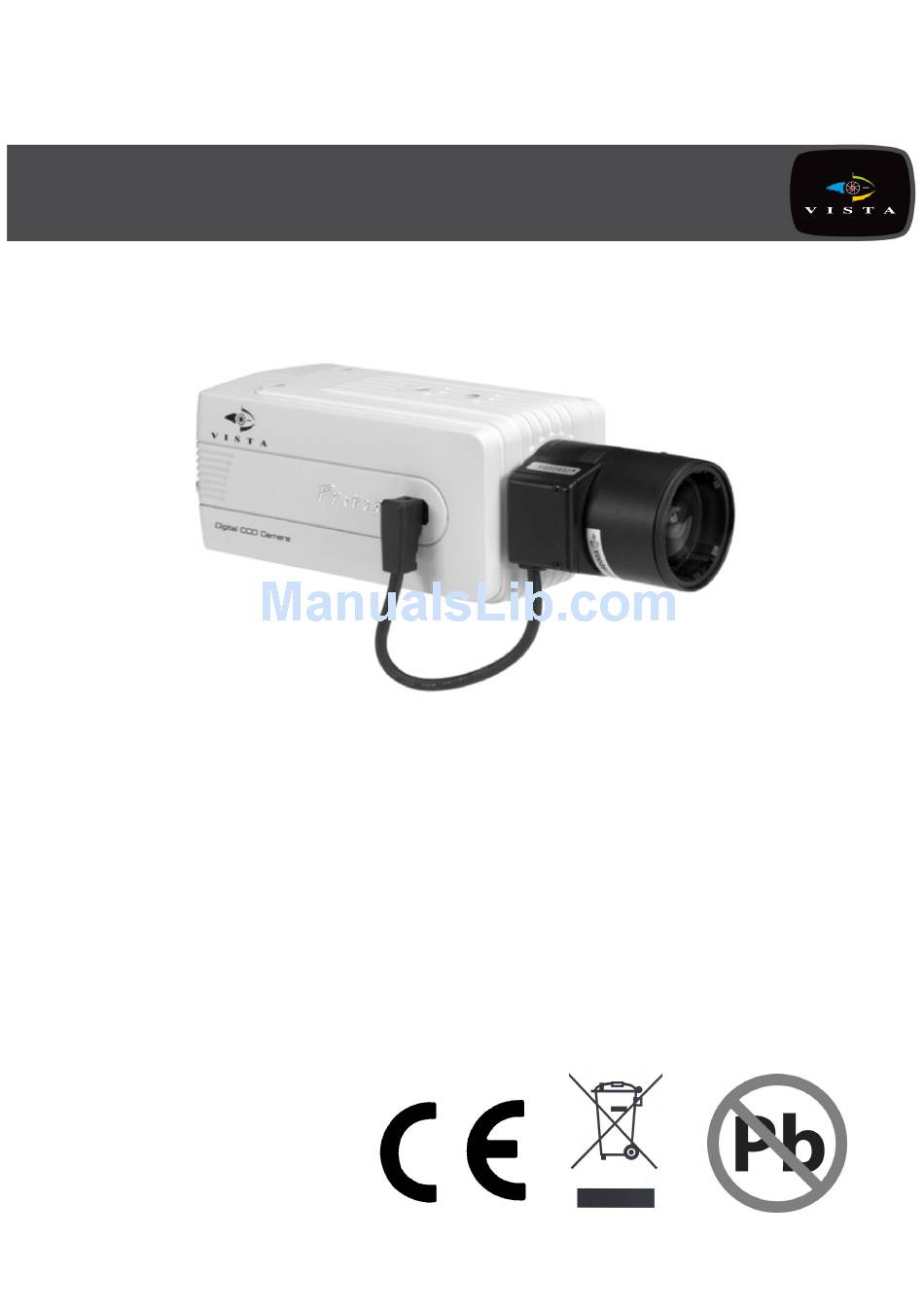

  • Page 1 Protos 580/4 Installation Manual Set up and user manual for the VPC580/4CM VPC580/4DN VPC580/4WDR Cameras...
  • Page 3 Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: A basic knowledge of CCTV systems and components A basic knowledge of electrical wiring and low-voltage electrical connections...
  • Page 4 RoHS Announcement All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
  • Page 5 IMPORTANT SAFEGUARDS 1. READ AND RETAIN INSTRUCTIONS Read the instruction manual before operating the equipment. Retain the manual for future reference. 2. CLEANING Turn the unit off and unplug from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use harsh cleansers or aerosol cleaners. 3.
  • Page 6 11. OVERLOADING Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 12. SERVICING Do not attempt to service the video monitor or equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
  • Page 7: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------------------------------------- 8 CAMERA OVERVIEW -------------------------------------------------------------------------------- 9 CONTENTS OF PACKAGE ------------------------------------------------------------------------- 10 CAMERA ADJUSTMENT ---------------------------------------------------------------------------- 10 CONTROL AND CONNECTIONS / DAY&NIGHT I/O TERMINALS----------------------- 15 LENS ----------------------------------------------------------------------------------------------------- 16 SPECIFICATIONS ------------------------------------------------------------------------------------- 17...
  • Page 8: Introduction

    INTRODUCTION Camera Model Features: ● 1/3” Super HAD CCD ● 580 lines (Colour) of resolution ● 0.5 Lux (Colour), 0.001Lux (Low-shutter) @ F1.2 Sensitivity ● 1/3” Super HAD CCD ● 580 lines (Colour), 700 lines (B/W) of resolution ● 0.5 Lux (Colour), 0.04 Lux (B/W), 0.001Lux (Low-shutter) @ F1.2 Sensitivity ●...
  • Page 9: Camera Overview

    CAMERA OVERVIEW SIDE VIEW TOP VIEW FRONT VIEW Left Button Up Button Enter Button Right Button Down Button UTP Video Output Terminal Day/Night External I/O Block Motion ALARM OUT RS-485 Power Indicator Video Out Connector (BNC) UTP / BNC Selection Switch (WDR only) AC/DC Compatible Input Terminal AC Power Cord REAR VIEW...
  • Page 10: Contents Of Package

    CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the colour camera and its accessories from the carton and verify that they were not damaged in shipment. The content of the package includes: Colour CCD camera Mini-DIN connector (for video-or dc-type auto-iris lens)
  • Page 11 <MAIN MENU> <AE MENU> BLC / WDR <WB MENU> MOTION DET LENS PRIVACY MODE MODE SPECIAL R GAIN SHUTTER EFFECT B GAIN CAM SET DC LEVEL/VIDEO ► EXIT◄ LEVEL/BRIGHTNESS /FLICKERLESS LOW SHUTTER MAX LOW-SHUT <BLC/WDR MENU> <MOTION DET MENU> <PRIVACY MENU> BLC MODE AREA SEL MASK SEL...
  • Page 12 <WB> Press the ENTER button to access the "WB" mode 1) MODE - AWB Set the colour temperature 2500ºK to 9500ºK - WAWB Wide range auto white balance mode - INDOOR Set the colour temperature to 3200ºK - OUTDOOR Set the colour temperature to 6300ºK - MANUAL Manual mode.
  • Page 13: Motion Det

    <MOTION DET> Press the ENTER button to access the "MOTION DET" mode 1) AREA SEL Select MD area number 2) FUNCTION Select MD ON/OFF 3) DEFAULT Set MD area as default Adjust the location of the MD area with boundary TOP and 4) ADJ TOP/LEFT LEFT (MD 1 - 4) 5) ADJ BOT/RIGHT...
  • Page 14 2) BPS Select serial communication speed (2400 / 4800 / 9600 /19200) 3) PROTOCOL Select operating protocol COMMAND: Camera controlled by RS-232C command VISTA: Vista protocol PELCO-D: Pelco-D protocol PELCO-P: Pelco-P protocol 4) DISP MODE On screen display is ON/OFF...
  • Page 15: Control And Connections / Day&Night I/O Terminals

    CONTROL AND CONNECTIONS/DAY&NIGHT I/O / ALARM OUT TERMINALS UTP VIDEO OUTPUT D&N I/O ALARM RS-485 RS-485+(RX) RS-485-(TX) Video Output (WDR Camera only) UTP : Unshielded Twisted Pair video Transmission for effective installation 1PIN: TP VIDEO OUTPUT 2PIN: TP VIDEO OUTPUT DAY&NIGHT I/O Terminals (DN/WDR Camera only) To allow the camera to force or be forced into Day/Night mode using external equipment (e.g.
  • Page 16: Lens

    LENS The lens is not supplied with this camera. Purchase a lens suitable for your requirements. These cameras accept both C-and CS-mount type lens. <Notes > For using main functions it is recommended to use Auto Iris Lens with DC ●...
  • Page 17: Specifications

    Video output 1.0 Vp-p (75 ohm, composite) S/N Ratio 50dB (AGC OFF) Camera Control RS485 (Vista, Pelco D, Pelco P) White Balance AWB / Indoor / Outdoor / Manual / WAWB Auto Exposure Auto / Manual Shutter / Flicker less...
  • Page 18 MEMO...
  • Page 19 Norbain SD Ltd, 210 Wharfedale Road, Winnersh Triangle, Wokingham, Berkshire. RG41 5TP United Kingdom 50302395C...
