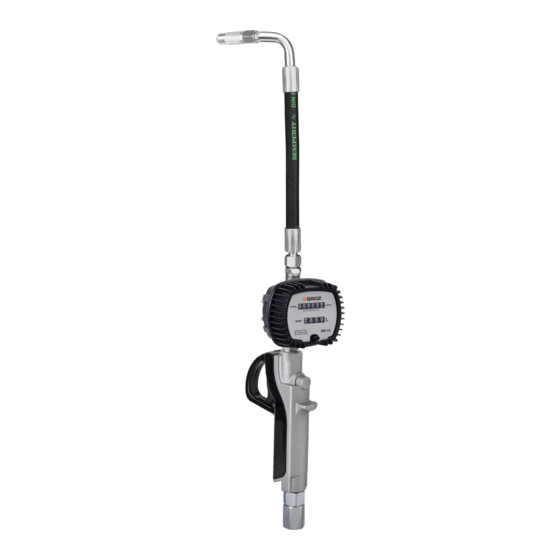

Oil Control Gun with
Mechanical Meter
Super accuracy
heavy duty gun
for controlling
fluid deliveries in
most demanding
applications.
Oval gear mechanism
High Reliability
Mechanical display
Aluminium Die cast
meter & gun body.
Built-in continuous
flow switch can be
activated for un-
attended dispensing.
Ergonomically
designed plastic grip
for convenient usage
Swivel at inlet for easy
maneuverability.
Strainer in the swivel
keeps contaminants,
dust, grit etc. away
from entering the gun.
SPECIFICATION
Meter Type
Mechanism
Inlet / Outlet Position
Inlet Threads
Meter accuracy
Repeatability
Burst Pressure
Pressure Loss
Max. Resettable Batch Total
Max. Non Resettable Totalizer
Least Count / Resolution
Max. Viscosity of Media
Option to Recalibrate by User
Protective Shroud on Meter
Weights & Measures Approved
Calibration Certificate Included
Water Resistance
In-Line Swivel
Outlet Diameter of Steel Spout
Inside Diameter of Hose Extension
Available in different
Combinations
WETTED
COMPONENTS
Aluminum, Steel,
Brass, Stainless
Steel, NBR &
Acetal
DO NOT USE WITH
Water based media,
Gasoline etc
RECOMMENDED USE
Oils with viscosity
upto 2000 cST
WORKING
FLOW
PRESSURE
RATE
UPTO
1000 PSI
1-30 LPM
(70 BAR)
(0.3-8 GPM)
TEMPERATURE
-10°C TO 60°C
(14°F TO 140°F)
Mechanical
Oval Gear
In-Line
1/2" BSPT (F) / 1/2" NPT (F)
± 1%
± 0.20%
3000 PSI (210 bar)
10 PSI (0.7 bar)
999.9 Litres or Quarts
9,99,999 Litres or Quarts
0.10 Litres or Quarts
2000 cST
No
Yes
No
No
IP55
1/2" (F)
1/2" (12.7 mm)
1/2" (12.7 mm)

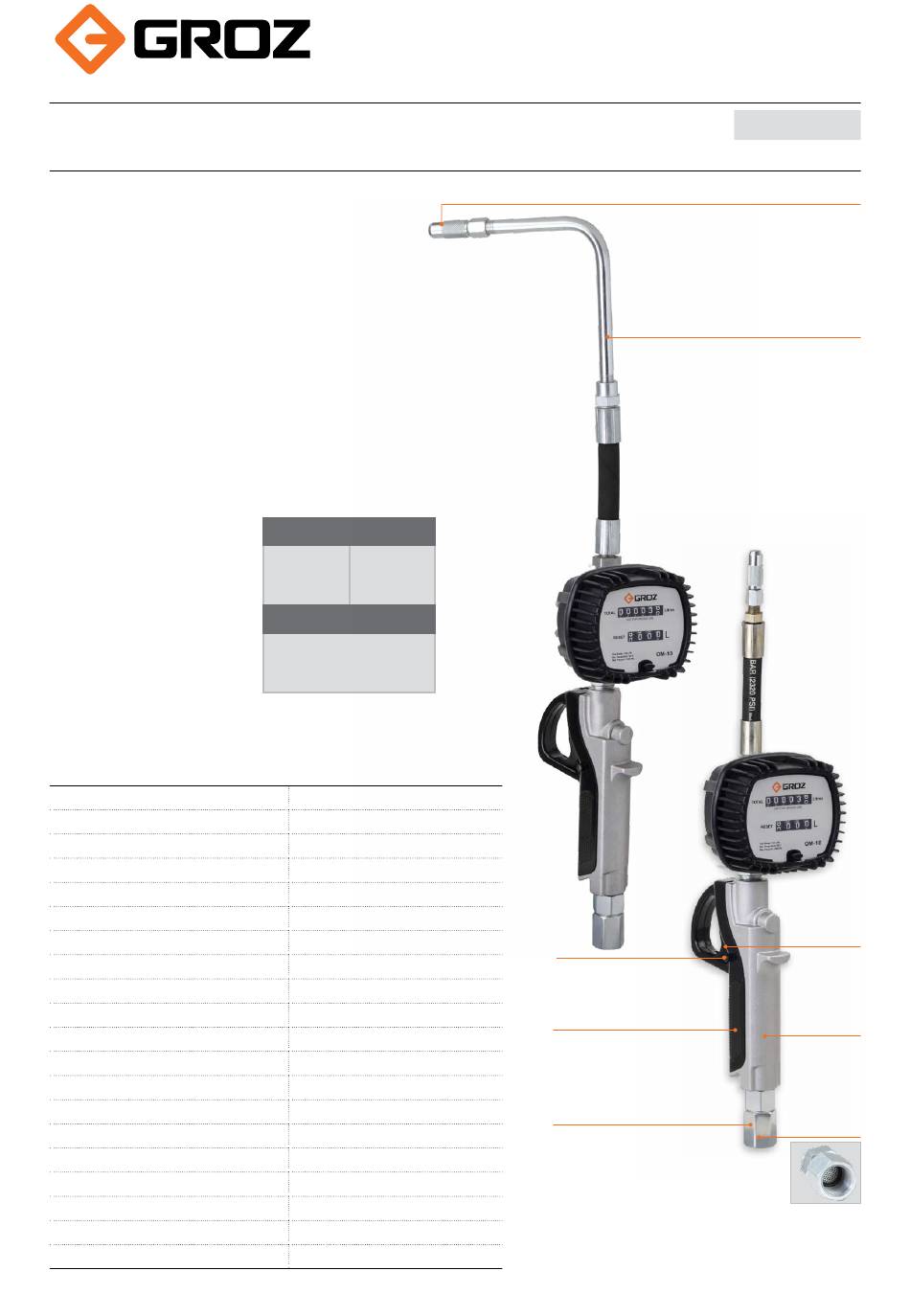

INSTRUCTION MANUAL
S2800, REV A
Continuous
Flow Switch
Plastic Shroud
Swivel
OM-10/OGN
Manual
Non Drip
Nozzle
Steel Extension
Trigger
Aluminium
Die Cast
Handle
Strainer
1
Advertisement
Table of Contents
Related Manuals for Groz OM-10/OGN
Summary of Contents for Groz OM-10/OGN
- Page 1 INSTRUCTION MANUAL S2800, REV A Oil Control Gun with OM-10/OGN Mechanical Meter Super accuracy Available in different Manual heavy duty gun Combinations Non Drip for controlling Nozzle fluid deliveries in WETTED most demanding COMPONENTS applications. Aluminum, Steel, Brass, Stainless Oval gear mechanism Steel, NBR &...
-
Page 2: Safety Information
• Control gun must be handled with care and bolts in a diagonal sequence must not dropped or thrown. as shown, using an Allen key • Thread sealant such as Teflon must be used (size 5) between threaded connection to ensure a leak proof connection. www.groz-tools.com... - Page 3 4. Remove the underside lid (Fig. 6) from the body. 5. Remove the gasket (Fig. 3) (Fig. 1) Protective Shroud (Fig. 2) Register Assembly 6. Use the pointed tip of a tool to remove the oval disk (Fig. 4) 7. Remove the oval gears (Fig.
-
Page 4: Exploded View
EXPLODED VIEW PART LIST REF NO. PARTS DESCRIPTION Oil control gun handle Swivel inlet Adaptor Hose assembly. Bend pipe Non drip nozzle Oil meter Continuous flow switch www.groz-tools.com... -
Page 5: Troubleshooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Insufficient accuracy Flow rate not correct Adjust the flow rate to the recommended value 1-30 LPM (0.3-8 GPM) Soiled or blocked meter Clean the meter body (refer “Cleaning of the body measuring chamber” section) Air in the fluid Locate and eliminate leaks in the inlet line Little or no discharge through meter... - Page 6 www.groz-tools.com...
- Page 8 This warranty does not apply to damage due directly or indirectly, to misuse, abuse, wear and tear, negligence or accident, repairs or alterations outside Groz plants, or to lack of maintenance. Groz shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special or consequential damages arising from the use of its products.
