Groz FM-20 Instruction Manual

Digital
Fuel Meter
Digital turbine meter designed to
measure the flow of low viscosity
fluids
Easy installation, both for in-line
as well as end of line applications;
with the advantage of Bi-
directional operation
Polyamide Turbine measuring
mechanism
Electronic Display powered by two
AAA 1.5 V batteries
Display can be rotated in four
different positions
Aluminum body and sealed
electronic card makes it suitable
for use in severe weather
conditions
Measures in Litres, Quarts, Pints &
Gallons
Easy user recalibration
WETTED COMPONENTS
Aluminum, Polyamide
RECOMMENDED USE
Diesel, Gasoline, Bio-Diesel,
Windshield Fluid, Water
DO NOT USE WITH
Oils
fEaTURES
Max. WORkINg
fLOW RaTE
PRESSURE
5-120 300 PSI
(20 BAR)
LPM
WORkINg TEMPERaTURE
RaNgE
−10°C to 50°C
(14°F to 122°F)
fLUIDS
DIESEL PETROL
WINDSHIELD
WaTER
fLUID
www.groz-tools.com
1" Port
SPECIfICaTIONS
Meter type
Meter MechanisM
inlet / Outlet pOsitiOn
Male / FeMale pOrt size
threads
FlOw rate
accuracy
repeatability
Max. wOrking pressure
burst pressure (Min.)
wOrking teMperature range
Max. resettable batch tOtal
Max. nOn resettable tOtalizer
least cOunt/ resOlutiOn
ViscOsity OF Media (range)
OptiOn tO recalibrate by user
BIO DIESEL
nO. OF pOsitiOns in which the display can be rOtated
prOtectiVe shrOud On Meter
water resistance
ce listed
FOr use with graVity FlOw
pOwer supply
pressure lOss
INSTRUCTION MANUAL
Meter Protective
Rubber Shroud
Reset
Calibration
Key
Key
S1730, REV D

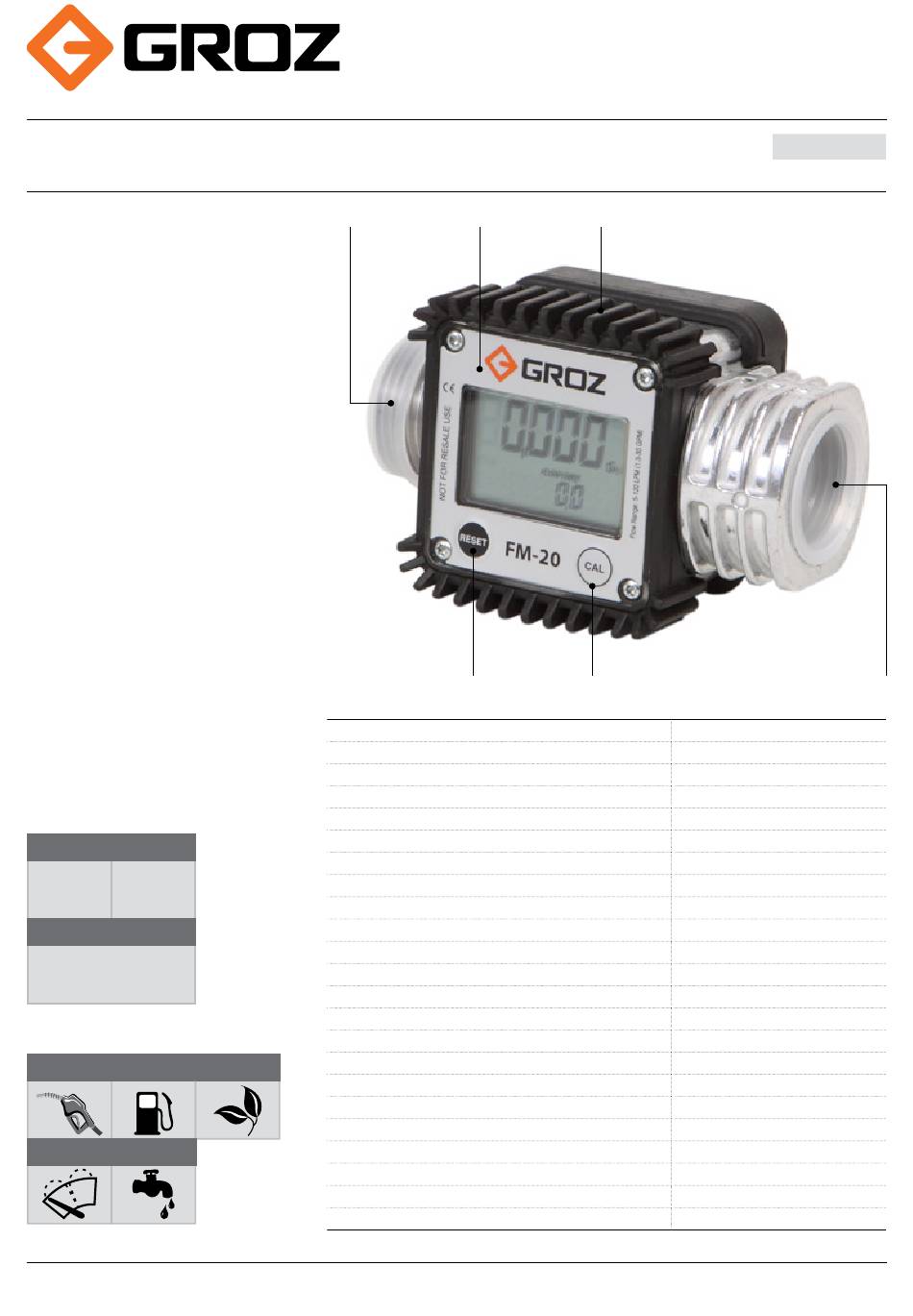

FM-20
Digital
Turbine
In-Line & End of the time
1"
BSP or NPT
5 to 120 LPM (1.3 to 32 GPM)
+/- 1%
+/- 0.30 %
300 PSI (20 BAR)
580 PSI (40 BAR)
-10°C to 50°C (14° to 122°F)
99999 Units
9,99,999 Units
0.001 Unit
5.35 cSt
Yes
4
YES
IP65
YES
YES (Minimum 4 feet head is required)
2 x 1.5V Alkaline batteries ( Size AAA )
0.5 PSI (0.04 BAR)
