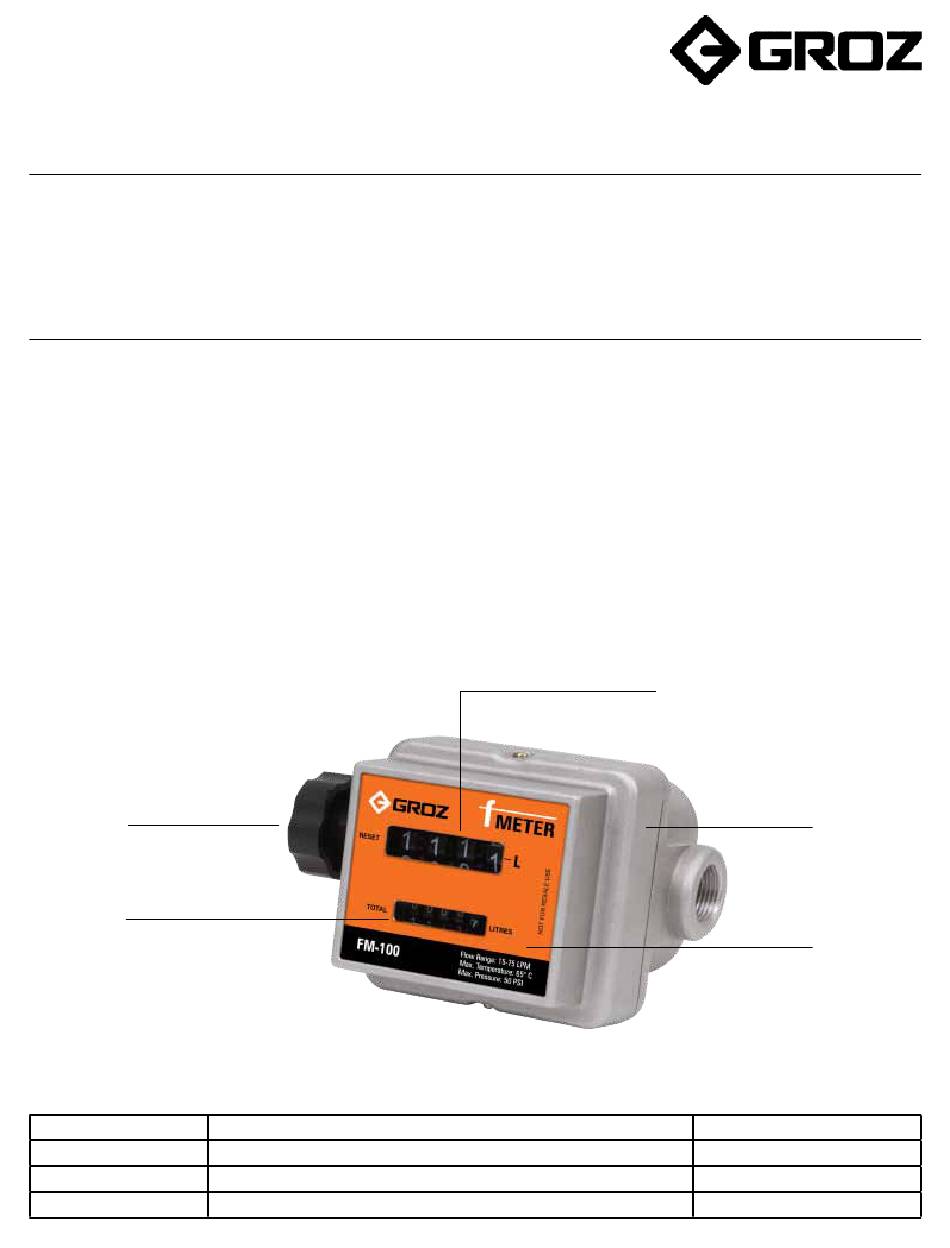

INSTRUCTION MANUAL

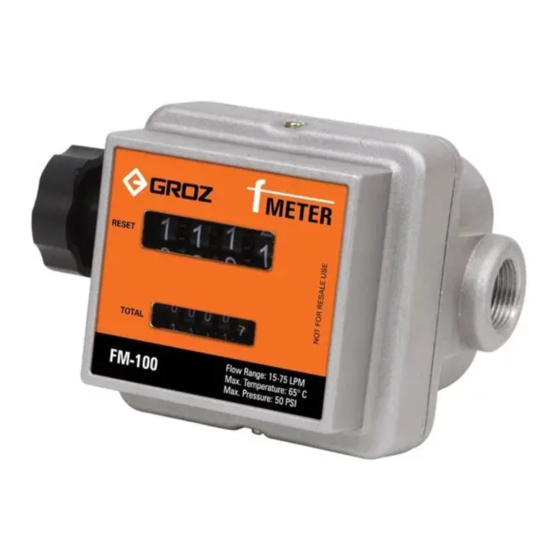

High Accuracy Mechanical Fuel meter
FM-100
Congratulations on purchase of this World Class High Accuracy Mechanical Fuel Meter!
• Worldclass Mechanical Fuel Meter, extremely compact, yet easy to read
• Robust Aluminum Die Construction
• 3 Port Design which allows the meter to be fitted In–Line or with the Inlet & outlet ports at Right Angle
• Nutating Disc Mechanism offers high tolerance to fuel contamination
• For use with Electric Fuel Pumps or gravity flow (with a minimum gravity head of 4')
• Register cap can be easily removed & rotated to every 90° orientation for display
• Easy user re calibration
• Works with both Fuels & Oils
• Available in Litre / Gallon version in a choice of ¾" or 1" threads
Reset Knob
Non Resettable
Totalizer
PARTS DESCRIPTION
REFERENCE NUMBER
1
2
3
Meter
Reset Knob
Meter Label
Resettable
Batch Totalizer
DESCRIPTION
1
S1960, Rev A
Meter
Meter Label
QUANTITY
1
1
1
Advertisement
Table of Contents
Related Manuals for Groz FM-100
Summary of Contents for Groz FM-100
- Page 1 INSTRUCTION MANUAL S1960, Rev A High Accuracy Mechanical Fuel meter FM-100 Congratulations on purchase of this World Class High Accuracy Mechanical Fuel Meter! • Worldclass Mechanical Fuel Meter, extremely compact, yet easy to read • Robust Aluminum Die Construction • 3 Port Design which allows the meter to be fitted In–Line or with the Inlet & outlet ports at Right Angle • Nutating Disc Mechanism offers high tolerance to fuel contamination...
- Page 2 INSTALLATION (Refer to Exploded View - Page 5 ) The meter can be installed in any position, on rigid pipelines or flexible hoses, directly on pumps or tanks. The meter can be fitted Inline In–Line or with the Inlet & outlet ports at Right Angle. Inlet & Outlet Port Inlet Port Outlet ports are marked with IN &...
- Page 3 METER CALIBRATION (Refer to Exploded View - Page 5 ) The meter is pre-calibrated in factory under standard conditions. A new calibration is necessary whenever there is a change in any Important of the following: • Media Viscosity OR For ensuring the accuracy of measurements, the flow • Flow Rate OR rate should never be kept below 20 LPM (5 GPM).
-
Page 4: Troubleshooting
CLEANING THE MEASURING CHAMBER (Refer to Exploded View - Page 5) Remove the knob (2), Meter cover (4) & Counter Assembly Use a soft brush to clean (7) by following steps 1 - 5 from the section: “How to rotate the Measuring Chamber the display”- on Page 2. -
Page 5: Exploded View
EXPLODED VIEW COMPONENT LIST REFERENCE DESCRIPTION QUANTITY NUMBER Meter Label Allen Bolts Reset Knob Meter Cover Cover Seal Allen Bolts Counter Assembly Screw Upper Chamber O Ring Nutating Disk Lower Chamber Housing seal Measuring Chamber O Ring Calibration Screw O Ring Bottom Plug... -
Page 6: Specifications
Village Kherki Daula, National Highway-8 Gurgaon-122001, Haryana, INDIA TEL +91.124.282.7700 / 221.4050 FAX +91.124.2827986 / 221.4224 FAX (USA) +1.509.271.7848 FAX (UK) +44.870.121.1854 E-MAIL info@groz-tools.com www.groz-tools.com The Groz name, Groz logo and the mark are trademarks of Groz Engineering Tools (P) Ltd. India...
