INSTRUCTION MANUAL

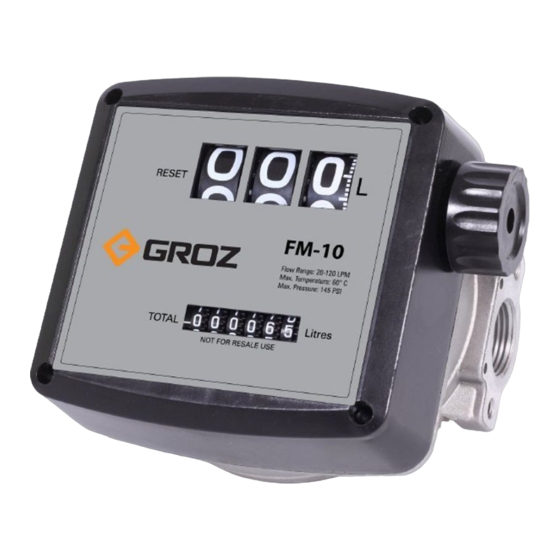

Mechanical Fuel Meter
FM-10
Congratulations on purchase of this World Class Mechanical Fuel Meter!
• High Accuracy Mechanical Flow meter, designed to
allow precise measurement of fluids compatible with the
component materials
• Designed for both in-line applications & gravity flow (with a
minimum gravity head of 4')
• Ideal for use with Electric Fuel Pumps
• Works with both fuels and oils
• Robust Aluminum Die Cast construction
• Available in Litre / Gallon version

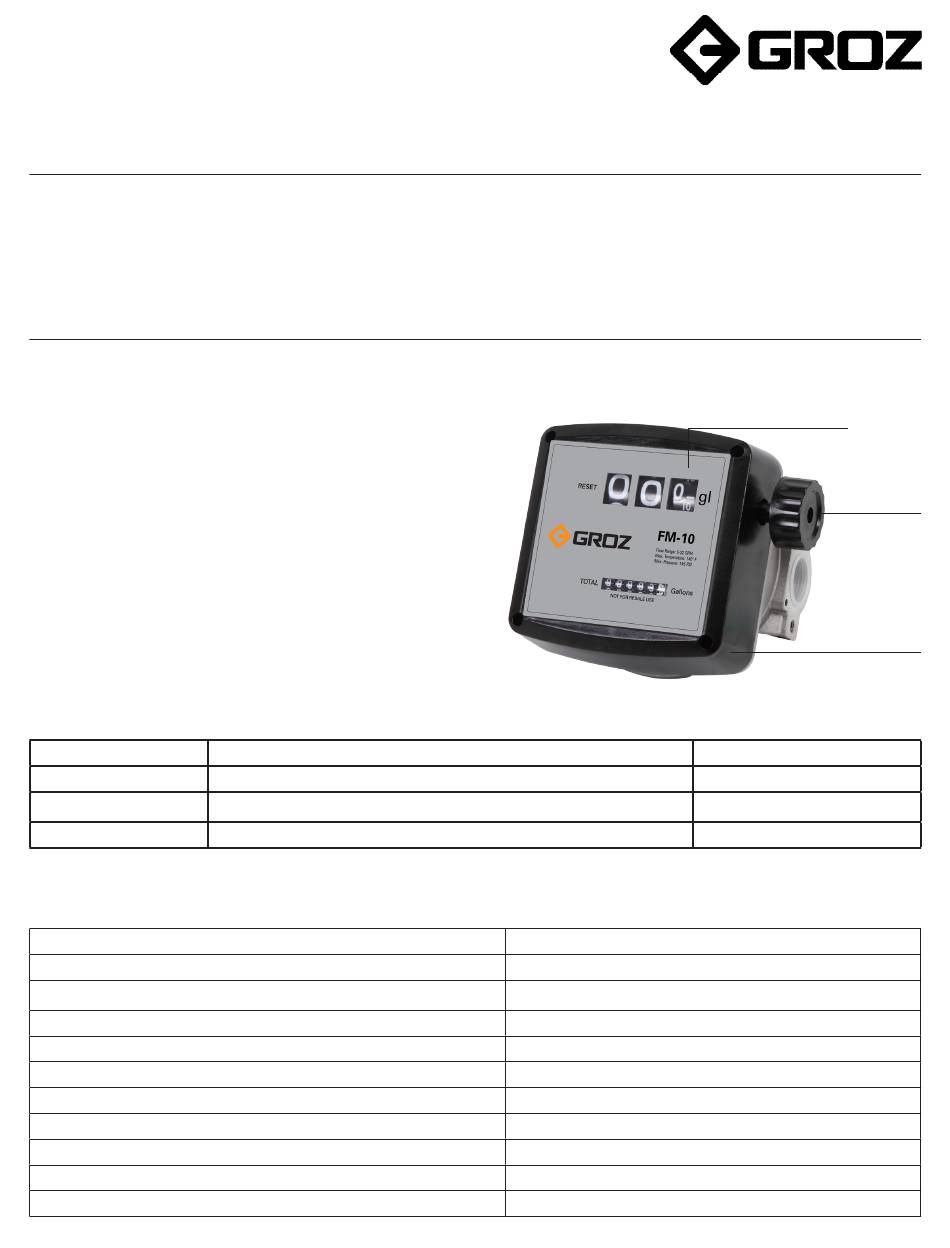

PARTS DESCRIPTION
REFERENCE NUMBER
1
2
3
SPECIFICATIONS
Meter Type
Mechanism
Inlet / Outlet Position
Inlet / Outlet
Threads
Flow Rate
Accuracy
Repeatability
Max. Working Pressure
Burst Pressure
Pressure Loss at 60 LPM (16 GPM) with Diesel
Meter Label
Reset Knob
Meter
DESCRIPTION
Mechanical
Nutating Disk
In-Line
1" (F) or 3/4" (F)
BSP or NPT
20 to 120 LPM (5 to 32 GPM)
+/- 1%
+/- 0.30%
145 PSI (10 BAR)
435 PSI (30 BAR)
3 PSI (0.20 BAR)
1
S1740, Rev A
Meter Label
Reset
Knob
Meter
QUANTITY
1
1
1
Advertisement
Table of Contents
Related Manuals for Groz FM-10
Summary of Contents for Groz FM-10
- Page 1 INSTRUCTION MANUAL S1740, Rev A Mechanical Fuel Meter FM-10 Congratulations on purchase of this World Class Mechanical Fuel Meter! Meter Label • High Accuracy Mechanical Flow meter, designed to allow precise measurement of fluids compatible with the Reset component materials Knob • Designed for both in-line applications &...
- Page 2 Working Temperature range -10°C to 60°C (14°F to 140°F) Max. Resettable Batch Total 999 Litres or 99.9 Gallons Max. Non Resettable Totalizer 999999 Litres or 99999.9 Gallons Least Count / Resolution 0.10 Litres or Gallons Filter/ Screen Included Max. Viscosity of Media 2000 cSt Option to Recalibrate by User Nr.
- Page 3 COMPONENT LIST REFERENCE NUMBER DESCRIPTION QUANTITY Meter Label Reset Knob Meter Cover Knob Plug Screw Meter Unit Screw Register Base Gear Unit Upper Half Chamber Nutating Disk Lower Half Chamber Measuring Chamber Seal Lower Body Calibration Screw + O-Ring Plug + Seal If solid particles enter the measuring chamber the correct working of the nutating disk may be affected.
- Page 4 Note Rotate the register base (8) in the desired position. Tighten the base with screws (7) and refit the Meter Unit (6) in the Always fix the plug with seal (17) to avoid leakage because new position. Make sure that the Total gears are moving the O Ring on the calibration screw (16) does not have smoothly.
- Page 5 CLEANING OF THE MEASURING CHAMBER Remove the knob (2) Use a soft brush or a by pulling it axially small tool (i.e a outwards. Remove screwdriver) to clean Meter cover, Meter the measuring Knob unit and Register base chamber. Be careful by following steps not to damage the 1 - 4 from the section:...
- Page 6 Village Kherki Daula, National Highway-8 Gurgaon-122001, Haryana, INDIA TEL +91.124.282.7700 / 221.4050 FAX +91.124.2827986 / 221.4224 FAX (USA) +1.509.271.7848 FAX (UK) +44.870.121.1854 E-MAIL info@groz-tools.com www.groz-tools.com The Groz name, Groz logo and the mark are trademarks of Groz Engineering Tools (P) Ltd. India...
