Details
287.1 mm
(11.30")
Sunlight readable
1x card reader slot
TM
Micro SD
Wiring
28.9 mm
82.7 mm
(1.14")
(3.26")
-15°C to +55°C
1.00 Kg
Kg
+5°F to +131°F
2.20 lbs
70°/50°, top/bottom
IPX6
70°/70°, left/right
IPX7
10.4 to 17.0 V DC
< 19.4 W (3 A fuse)
HOOK REVEAL 9
INSTALLATION GUIDE
Parts included
1.
Display unit
2.
Bracket mounting kit
3.
Cable and fuse kit
4.
SplitShot, TripleShot or
50/200 kHz Skimmer transducer
5.
Document package
Accessories (sold separately)
Sun cover
A.
part no.: 000-14176-001
Panel mounting kit
B.
part no.: 000-14189-001
For product manuals, technical
speci cations, certi cates and
declarations refer to the product
website:
www.lowrance.com
*988-12655-001*
1.
2.
3.
4.
5.
B.
A.
Advertisement
Related Manuals for Lowrance HOOK REVEAL 9
Summary of Contents for Lowrance HOOK REVEAL 9
- Page 1 Details 28.9 mm 82.7 mm 287.1 mm (1.14“) (3.26“) (11.30“) HOOK REVEAL 9 For product manuals, technical speci cations, certi cates and INSTALLATION GUIDE declarations refer to the product website: www.lowrance.com -15°C to +55°C 1.00 Kg Sunlight readable +5°F to +131°F 2.20 lbs...
- Page 2 Bracket mounting Panel mounting Recommended pilot holes. Material 10# screw Soft materials e.g. Plywood Ø 3.7-4.0 mm (5/32”) See panel mounting template for drilling and cutting details. Hard materials e.g. Fiberglass, Acrylic, Hardwoods Ø 4.1-4.7 mm (3/16”) Panel mounting kit is sold separately.
Need help?
Do you have a question about the HOOK REVEAL 9 and is the answer not in the manual?
Questions and answers

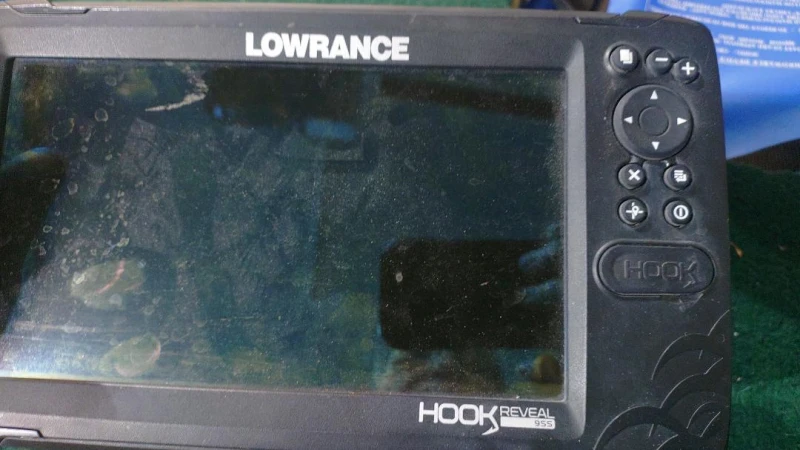

which series is the Reveal 955? I bought a boat that has one unmounted and cant find any info on it specifically on your website. I was wanting specs, an owners manual and installation guide. Thanks
