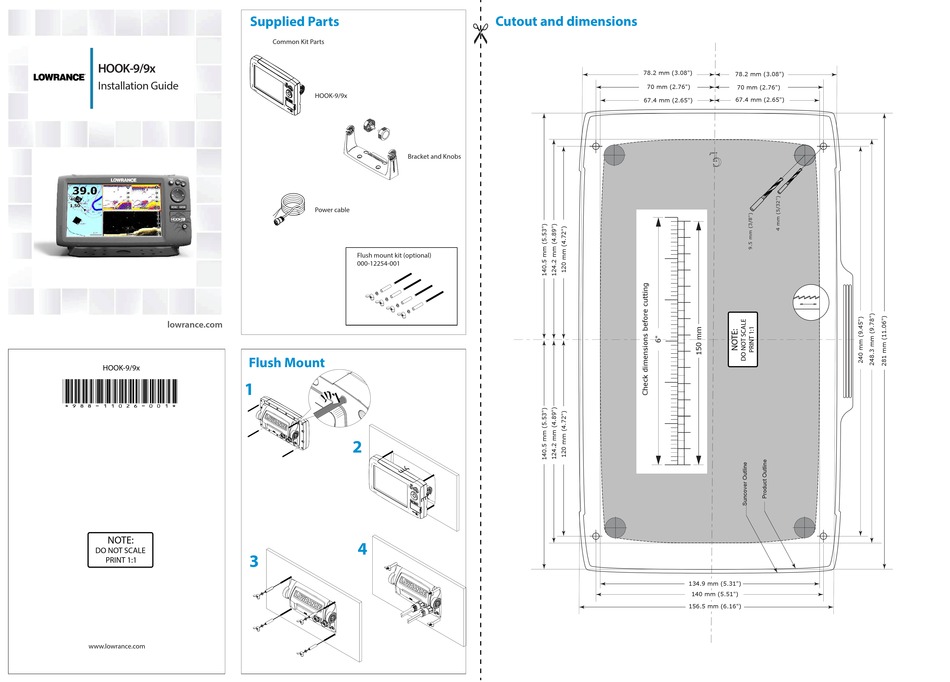

HOOK-9/9x
Installation Guide
lowrance.com
HOOK-9/9x
*988-11026-001*
NOTE:
DO NOT SCALE
PRINT 1:1
www.lowrance.com
Supplied Parts
Common Kit Parts
HOOK-9/9x
Bracket and Knobs
Power cable
Flush mount kit (optional)
000-12254-001
Flush Mount
1
2
4
3
Cutout and dimensions
78.2 mm (3.08")
70 mm (2.76")
67.4 mm (2.65")
78.2 mm (3.08")
70 mm (2.76")
67.4 mm (2.65")
134.9 mm (5.31")
140 mm (5.51")
156.5 mm (6.16")
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lowrance HOOK-9/9x
Summary of Contents for Lowrance HOOK-9/9x
- Page 1 Supplied Parts Cutout and dimensions Common Kit Parts HOOK-9/9x 78.2 mm (3.08") 78.2 mm (3.08") Installation Guide 70 mm (2.76") 70 mm (2.76") HOOK-9/9x 67.4 mm (2.65") 67.4 mm (2.65") Bracket and Knobs Power cable Flush mount kit (optional) 000-12254-001 lowrance.com...
- Page 2 Flush Mount Wiring IMPORTANT. Do not use this template if it has been rescaled by copying or printing. If this is not the original, or is a print from a file, please check the dimension lines below are to scale before use. IMPORTANT.
