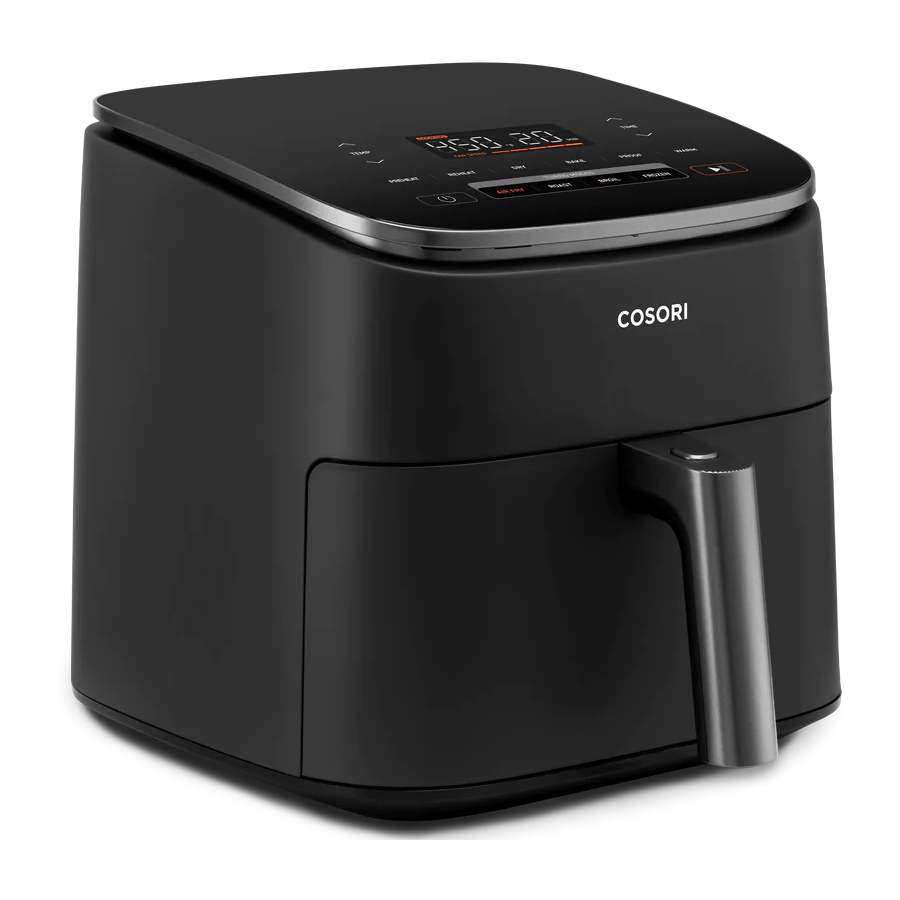

COSORI TurboBlaze CAF-DC601-KUS - 6.0-Quart Air Fryer Manual

Get Creative with COSORI

Download the free VeSync app to access original recipes and video tutorials from the COSORI chefs, interact with our online community, and more!

explore our digital recipe gallery
cosori.com

enjoy weekly, featured recipes
made exclusively by our in-house chefs

Package Contents

1 x TurboBlaze 6.0-Quart Air Fryer
1 x Crisper Plate
1 x User Manual
1 x Recipe Book

Specifications

Model	CAF-DC601-KUS
Power Supply	AC 120V, 60Hz
Rated Power	1,725W
Capacity	6 qt / 5.7 L (serves 3–5 people)
Temperature Range	90°–450°F / 30°–230°C
Time Range	1 min–24 hr
Dimensions (including handle)	11.8 x 14.4 x 11.9 in / 30.0 x 36.5 x 30.1 cm
Dimensions (not including handle)	11.8 x 11.8 x 11.9 in / 30.0 x 30.0 x 30.1 cm
Weight	13.2 lb / 6 kg

GETTING TO KNOW YOUR PRODUCT

Your COSORI Air Fryer uses a DC motor which heats up the air fryer quicker, cooks faster, and allows for precise temperature and fan control, so your food cooks exactly the way you want it. With user-friendly one-touch controls, a nonstick basket, and an intuitive, safe design, the COSORI TurboBlaze Air Fryer is the star of your kitchen.

Note:

• Do not try to open the top of the air fryer. This is not a lid.
• The basket and crisper plate are made of aluminum metal with nonstick coating.

Device Diagram

1. Air Inlet
2. Control Screen
3. Silicone Stoppers
4. Crisper Plate
5. Basket Release Button
6. Basket Handle
7. Basket
8. Heating Elements
9. Power Cord
10. Air Outlet

Display Diagram

Note: When you tap a button to use a function, it will turn orange to show that it is selected.

Control Panel

Cooking Functions

Display

Display Messages

BEFORE FIRST USE

Setting Up

1. Remove and discard all packaging from the air fryer, including any temporary stickers and the protective cover fitted over the power plug.
2. Place the air fryer on a stable, level, heatresistant surface. Keep away from areas that can be damaged by steam (such as walls or cupboards).
   Note: Leave 5 inches / 13 cm of space behind and above the air fryer. [Figure 1.1] Leave enough room in front of the air fryer to remove the basket.

3. Wash both the basket and crisper plate thoroughly, using either a dishwasher or a non-abrasive sponge.
4. Wipe the inside and outside of the air fryer with a slightly moist cloth. Dry with a towel.
5. Place the crisper plate back into the basket. Tilt the crisper plate to insert one side first, then press down on the other side.
6. Place the basket inside the air fryer.

Test Run

A test run will help you become familiar with your air fryer, make sure it's working correctly, and clean it of possible residues in the process.

1. Make sure the air fryer basket is empty and plug in the air fryer.
2. Tap AIR FRY. The display will show "385°F" and "10 MIN".
3. Tap to begin. When finished, the air fryer will beep and the display will show "End".
4. Press the basket release button and remove the basket. Let the basket cool completely for 10–30 minutes.

Note:

• Use caution when turning the basket over after cooking, as the hot crisper plate may fall out and create a safety hazard.
• Do not unscrew the basket handle from the basket.

Silicone Stoppers

• The crisper plate contains 4 silicone stoppers made of food-safe material. These stoppers keep the plate fitted to the bottom of the basket.
• When placing the crisper plate into the basket, tilt the crisper plate to insert one side first, then press down on the other side. [Figure 1.2]


Note: Forcing the crisper plate into the basket incorrectly may cause damage.

• Make sure children do not play with the silicone stoppers or swallow them.

USING YOUR UNIT

Note:

• Do not place anything on top of your air fryer. This will disrupt airflow and cause poor air frying results. [Figure 2.1]

• An air fryer is not a deep fryer. Do not fill the basket with oil, frying fat, or any liquid.
• When taking the basket out of the air fryer, be careful of hot steam.

Preheating

We recommend preheating before placing food inside the air fryer, unless your air fryer is already hot. Food will not cook thoroughly without preheating.

1. Tap to turn on the display.
2. Tap PREHEAT. The display will show "400°F" and "4 MIN".
3. Optionally, tap or to change the temperature. The time will adjust automatically.
4. Tap to begin preheating.
5. When the time has finished, the air fryer will beep and the display will show "End".

Note:

• If no buttons are pressed for 30 minutes, the air fryer will clear all settings and turn off.
• Preheat uses a fan speed of 4.
• When adjusting the temperature, the time will automatically adjust based on the chart below.

Temperature	Time (Minutes)
345°–450°F / 175°–230°C	4
240°–340°F / 115°–170°C	3
170°–235°F / 75°–110°C	2

Cooking Functions

Using a cooking function is the easiest way to air fry. Functions are programmed with an ideal time, temperature, and fan speed for cooking certain foods, see Cooking Chart.
All cooking functions' time and temperature can be adjusted.

To customize a cooking function:

1. Select the function's button you want to customize.
2. Tap or to change the function's time and temperature.
3. To save, press and hold the function's button for 3 seconds until you hear a beep.

Note:

• Press and hold or to rapidly increase or decrease the time or temperature.
• Fan speed cannot be customized.

To reset all cooking functions:

• Press and hold for 15 seconds.

Turbo Modes

• Turbo Modes cooking functions (Air Fry, Roast, Broil, Frozen) quickly cook food using the highest fan speed (5).
• We recommend using the crisper plate for all Turbo Modes functions to take full advantage of the 360° air flow when cooking.

Air Frying

1. Place the crisper plate into the basket. The crisper plate allows excess oil to drip down to the bottom of the basket.
   Note: The crisper plate may not be used for certain recipes, such as muffins and breads.
2. Preheat your air fryer (see Preheating).
3. When the air fryer beeps and the display shows "End", add food to the basket.
4. Select a cooking function.
   Note: Cooking functions are programmed with an ideal time, temperature, and fan speed for cooking certain foods. The air fryer will default to the Air Fry function if no other function is selected.
5. Optionally, change the temperature and time by tapping or . You can do this anytime during cooking.
6. Tap to begin air frying.
7. The air fryer will beep when finished.
   The display will show

   • Optionally, tap WARM. Tap or to change the time (1–60 minutes).
8. Take the basket out of the air fryer, being careful of hot steam. Use tongs or heatsafe utensils to remove the food from the basket.
9. Allow to cool before cleaning.

Cooking Chart

Note: Results may vary. For recipes and cooking inspiration, check out the VeSync app and Recipe Book.

Function		Default Temperature	Default Time	Temperature Range	Time Range	Fan Speed
Turbo Modes	Air Fry	385°F / 195°C	10 min	300°–450°F / 150°–230°C	1–60 min	5
	Roast	425°F / 220°C	12 min	350°–450°F / 175°–230°C	1–60 min	5
	Broil	450°F / 230°C	5 min	425°–450°F / 220°–230°C	1–30 min	5
	Frozen	390°F / 200°C	14 min	300°–450°F / 150°–230°C	1–30 min	5
Reheat		390°F / 200°C	5 min	300°–425°F / 150°–220°C	1–60 min	4
Bake		330°F / 165°C	20 min	260°–400°F / 125°–205°C	1–60 min	3
Dehydrate ("DRY")		135°F / 55°C	6 hr	100°–200°F / 35°–95°C	1–24 hr	1
Proof		90°F / 30°C	1 hr	90°–110°F / 30°–45°C	1–12 hr	1
Preheat		400°F / 205°C	4 min (auto adjust)	170°–450°F / 75°–230°C	-	4
Keep Warm ("WARM")		170°F / 75°C	30 min	–	1–60 min	2

*See Cooking Tips for more information.

Cooking Tips

Overfilling

• If the basket is overfilled, food will cook unevenly.

Using Oil

• Adding a small amount of oil to your food will make it crispier. Use no more than 2 US tbsp / 30 mL of oil.
• Oil sprays are excellent for applying small amounts of oil evenly to all food items.

Food Tips

• You can air fry any frozen foods or goods that can be baked in an oven.
• The Frozen function is ideal for small or breaded items, such as nuggets, meatballs, and pot stickers.
• To make cakes, hand pies, or any food with filling or batter, place food in a heat-safe container before placing in the basket.
• Air frying high-fat foods will cause fat to collect underneath the crisper plate. To avoid excess smoke while cooking, pour out fat drippings after cooking.
• Liquid-marinated foods create splatter and excess smoke. Pat these foods dry before air frying.
• Refer to the Cooking Chart to select the ideal cooking function for your recipe.

French Fries

• Add ½–1 US tbsp / 8–15 mL oil for crispiness.
• When making fries from raw potatoes, soak uncooked fries in water for 15 minutes to remove starch prior to frying. Pat dry with a towel before adding oil.
• Cut uncooked fries smaller for crispier results. Try cutting fries into ¼- by 3-inch / 0.6- by 7.6-cm strips.

Note: For more tips and recipes, check out the VeSync app and COSORI website.

More Functions

Switching Temperature Units

• Press and hold TEMP and for 3 seconds.
• The temperature unit will change from Fahrenheit to Celsius.
• Repeat to switch back to Fahrenheit.

Pausing

• Tap to pause cooking. The air fryer will stop heating, and will blink until you tap again to resume cooking.
• After 30 minutes of inactivity, the air fryer will turn off.
• This function allows you to pause the cooking program without removing the basket from the air fryer.

Automatically Resume Cooking

• If you pull out the basket, the air fryer will pause cooking automatically. The display will turn off temporarily as a safety feature.
• When you return the basket, the air fryer will automatically resume cooking based on your previous settings.

Automatic Shutoff

• If the air fryer has no active functions, the air fryer will clear all settings and turn off after 30 minutes of inactivity.

Overheat Protection

• If the air fryer overheats, it will automatically shut down as a safety feature.
• Let the air fryer cool down completely before using it again.

CARE & MAINTENANCE

Note:

• Always clean the air fryer basket and crisper plate after every use.
• Lining the basket with foil (except the crisper plate) may make cleanup easier.

1. Turn off and unplug the air fryer. Allow it to cool completely before cleaning. Pull out the basket for faster cooling.
2. Wipe the outside of the air fryer with a moist cloth, if necessary.
3. The basket and crisper plate are dishwasher-safe. You can also wash the basket and crisper plate with hot, soapy water and a non-abrasive sponge. Soak if necessary.
   Note: The basket and crisper plate have a nonstick coating. Avoid using metal utensils and abrasive cleaning materials.
4. For stubborn grease:
   1. In a small bowl, mix 2 US tbsp / 30 g of baking soda and 1 US tbsp / 15 mL of water to form a spreadable paste.
   2. Use a sponge to spread the paste on the basket and crisper plate and scrub. Let the basket and crisper plate sit for 15 minutes before rinsing.
   3. Wash basket with soap and water before using.
5. Clean the inside of the air fryer with a slightly moist, non-abrasive sponge or cloth. Do not immerse in water. If needed, clean the heating coil to remove food debris. [Figure 3.1]

6. Dry before using.

Note: Make sure the heating coil is completely dry before turning on the air fryer.

ACCESSORIES

Additional and replacement accessories are available for your air fryer. For more information, contact Customer Support (see Customer Support).

TROUBLESHOOTING

Problem	Possible Solution
The device will not turn on	Make sure the air fryer is plugged in.
	Push the basket securely into the air fryer.
Food is not completely cooked	Place smaller batches of food items into the basket. If the basket is overstuffed, then food will be undercooked.
	Increase cooking temperature or time.
Food is not crispy after air frying	Spraying or brushing a small amount of oil on food can increase crispiness (see Cooking Tips).
French fries are not cooked correctly	See French Fries.
Basket will not slide into the unit securely	Make sure the basket is not overfilled with food.
White smoke or steam is coming out of the air fryer.	The air fryer may produce some white smoke or steam when you use it for the first time or during cooking. This is normal.
	Make sure the basket and the inside of the air fryer are cleaned properly and not greasy.
	Cooking greasy foods will cause oil to collect beneath the crisper plate. This oil will produce white smoke, and the basket may be hotter than usual. This is normal and should not affect cooking. Handle the basket with care.
Dark smoke is coming out of the unit	Immediately unplug your air fryer. Dark smoke means that food is burning or there is a circuit problem. Wait for smoke to clear before pulling the basket out. If the cause was not burnt food, contact Customer Support (see Customer Support).
The device has a plastic smell	Any air fryer may have a plastic smell from the manufacturing process. This is normal. Follow the instructions for a Test Run to get rid of the plastic smell. If a plastic smell is still present, please contact Customer Support (see Customer Support).
Display shows Error Code E01/E21	There is an open circuit in the temperature monitor. Contact Customer Support (see Customer Support).
Display shows Error Code E02/E22	There is a short circuit in the temperature monitor. Contact Customer Support (see Customer Support).
Display shows Error Code E04	The air fryer has been plugged into a 220–240V outlet. Turn off and unplug the air fryer. Only use the air fryer with 120V, 60Hz outlets.

If your problem is not listed, please contact Customer Support (see Customer Support).

IMPORTANT SAFEGUARDS

READ AND SAVE THESE INSTRUCTIONS
Follow basic safety precautions when using your air fryer. Read all instructions.

Key Safety Points

• Do not touch hot surfaces. Use handle.
• Use caution when turning the basket over after cooking, as the hot crisper plate may fall out and create a safety hazard.
• Do not block any ventilation openings. Hot steam is released through openings. Keep your hands and face clear of openings.
•
  The hot crisper plate may fall out when turning the basket over.

Note:

• Firmly insert the crisper plate into the basket to reduce the chance of it falling out.
• Always use tongs to carefully remove hot food.

General Safety

• To protect against electric shock, do not immerse the air fryer housing, cord, or plug in water or other liquids.
• Closely supervise children near your air fryer.
• Unplug when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not use your air fryer if it is damaged, not working, or if the cord or plug is damaged. Contact Customer Support (see Customer Support).
• Do not use third-party replacement parts or accessories, as this may cause injuries.
• Do not use outdoors.
• Do not place the air fryer or any of its parts on a stove, near gas or electric burners, or in a heated oven.
• Be extremely cautious when moving your air fryer (or removing the basket) if it contains hot oil or other hot liquids.
• Always place the crisper plate on a heat-resistant surface after removing it from the basket.
• Do not clean with metal scouring pads. Metal fragments can break off the pad and touch electrical parts, creating a risk of electric shock.
• Do not place anything on top of your air fryer. Do not store anything inside your air fryer.
• This air fryer is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the air fryer by a person responsible for their safety.
• Do not allow children to clean or perform maintenance on the air fryer unless they are supervised.
• Children should be supervised to ensure that they do not play with the air fryer.
• This air fryer is not intended to be operated by means of an external timer or separate remote-control system.
• Only use your air fryer as directed in this manual.
• Not for commercial use. Household use only.

While Air Frying

• An air fryer works with hot air only. Never fill the basket with oil or fat.
• Never use your air fryer without the basket in place.
• Do not place oversized foods or metal utensils into your air fryer.
•
  Do not overfill the air fryer basket. Heaping amounts of food may touch the heating coils and cause a fire hazard.
• Do not touch accessories (including the crisper plate) during or immediately after air frying.
• Do not place paper, cardboard, non-heat-resistant plastic, or similar materials into your air fryer.
• Never put baking or parchment paper into the air fryer without food on top. Air circulation can cause paper to lift and touch heating coils.
• Always use heat-safe containers. Be extremely cautious if using containers that aren't metal or glass.
• Keep your air fryer away from flammable materials (curtains, tablecloths, etc.). Use on a flat, stable, heat-resistant surface away from heat sources or liquids.
• Immediately turn off and unplug your air fryer if you see dark smoke coming out. White smoke is normal, caused by heating fat or food splashing, but dark smoke means that food is burning or there is a circuit problem. Wait for the smoke to clear before pulling the basket out. If the cause was not burnt food, contact Customer Support (See Customer Support).
• To turn the air fryer off, press once. The air fryer will beep, and all of the buttons will shut off except , which will turn orange.
• To unplug, grab the plug and pull from the outlet. Never pull from the power cord.
• Do not leave your air fryer unattended while in use.

Power & Cord

• Turn off the air fryer before removing the plug from the outlet.
• Do not let the power cord (or any extension cord) hang over the edge of a table or counter, or touch hot surfaces.
• Remove and discard the plug's protective cover to prevent a choking hazard.
• Never use an outlet below the counter when plugging in your air fryer.
• Your air fryer has a polarized plug (one prong is wider than the other), which fits into a polarized outlet only one way. If the plug does not fit, reverse the plug. If it still does not fit, do not use the plug in that outlet. Do not alter the plug in any way.
• Your air fryer should only be used with 120V, 60Hz electrical systems. Do not plug into another type of outlet.
• Keep the air fryer and its cord out of reach of children.
• A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Extension Cords

• Longer extension cords are available and may be used if care is exercised in their use. If a longer extension cord is used:
• The marked electrical rating of the extension cord should be at least as great as the electrical rating of the air fryer.
• The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
•
  If the power-supply cord is damaged, it must be replaced by Arovast or similarly qualified persons in order to avoid an electric or fire hazard. Please contact Customer Support (See Customer Support).

Electromagnetic Fields (EMF)

The COSORI Air Fryer complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Note: Items marked with the following symbol may reach high temperatures and should be handled carefully.

Hot surface.

SAVE THESE INSTRUCTIONS

WARRANTY INFORMATION

This warranty is made by:
AROVAST CORPORATION
1202 N. Miller St., Suite A
Anaheim, CA 92806, USA

CUSTOMER SUPPORT

If you have any questions or concerns about your new product, please contact our helpful Customer Support Team.

Arovast Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806, USA

Email: support@cosori.com
Toll-Free: 1-888-402-1684

Support Hours
Mon–Fri, 9:00 am–5:00 pm PST/PDT

*Please have your invoice and order ID ready before contacting Customer Support.

Questions or Concerns?
Mon–Fri, 9:00 am–5:00 pm PST/PDT
support@cosori.com | 1-888-402-1684

Documents / Resources

References

• COSORI - Air Fryers, Toaster Ovens, Food Dehydrators, Recipes and more

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download COSORI TurboBlaze CAF-DC601-KUS - 6.0-Quart Air Fryer Manual
