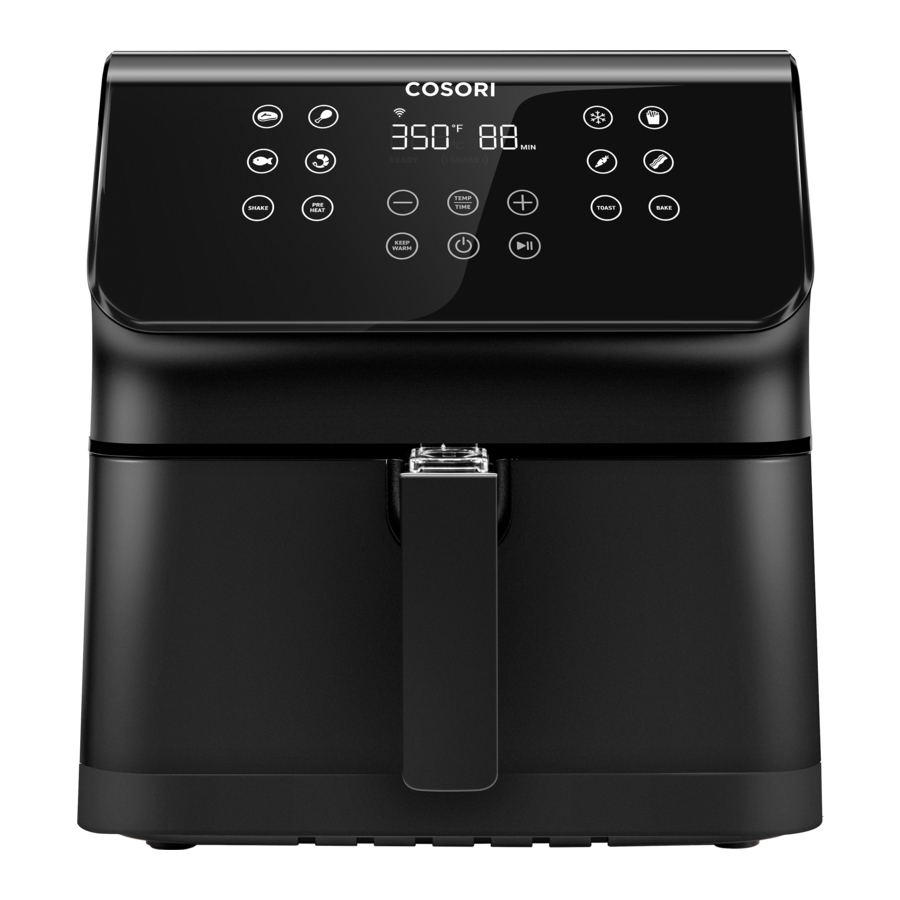

COSORI Smart CS358-AF Series - 5.8-Quart Air Fryer Manual

Package Contents

1 x Smart 5.8-Quart Air Fryer
1 x Recipe Book
1 x Quick Reference Guide
1 x User Manual

Specifications

Power Supply	AC 120V, 60Hz
Rated Power	1700W
Capacity	5.8 qt / 5.5 L (serves 3-5 people)
Temperature Range	170°–400°F / 77°–204°C
Time Range	1–60 min
Dimensions	11.8 x 13.8 x 12.6 in / 30 x 35 x 32 cm
Weight	12.3 lb / 5.6 kg

Note: To access additional smart air fryer functions, download the free VeSync app.

READ AND SAVETHESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

Follow basic safety precautions when using your air fryer. Read all instructions.

Key Safety Points

Do not touch hot surfaces. Use handle.

Only press the basket release button with the baskets resting flat on a counter or any level, heat-resistant surface.
The handle is attached to the inner basket, not the outer basket. When you press the basket release button, the outer basket will drop.

Do not block any ventilation openings. Hot steam is released through openings. Keep your hands and face clear of openings.

General Safety

• Do not immerse the air fryer housing or plug in water or liquid.
• Closely supervise children near your air fryer.
• Unplug when not in use, and before cleaning. Allow to cool before putting on or taking off parts.
• Do not use your air fryer if it is damaged, not working, or if the cord or plug is damaged. Contact Customer Support.
• Do not use third-party replacement parts or accessories, as this may cause injuries.
• Do not use outdoors.
• Do not place the air fryer or any of its parts on a stove, near gas or electric burners, or in a heated oven.
• Be extremely cautious when moving your air fryer (or removing the baskets) if it contains hot oil or other hot liquids.
• Do not clean with metal scouring pads. Metal fragments can break off the pad and touch electrical parts, creating a risk of electric shock.
• Do not place anything on top of your air fryer. Do not store anything inside your air fryer.
• Only use your air fryer as directed in this manual.
• Not for commercial use. Household use only.

While Air Frying

• An air fryer works with hot air only. Never fill the baskets with oil or fat.
• Never use your air fryer without the baskets in place.
• Do not place oversized foods or metal utensils into your air fryer.
• Do not place paper, cardboard, non-heat-resistant plastic, or similar materials into your air fryer. You may use parchment paper or foil.
• Never put baking or parchment paper into the air fryer without food on top. Air circulation can cause paper to lift and touch heating coils.
• Always use heat-safe containers. Be extremely cautious if using containers that aren't metal or glass.
• Keep your air fryer away from flammable materials (curtains, tablecloths, etc). Use on a flat, stable, heat-resistant surface away from heat sources or liquids.
• Immediately turn off and unplug your air fryer if you see dark smoke coming out. White smoke is normal, caused by heating fat or food splashing, but dark smoke means that food is burning or there is a circuit problem. Wait for smoke to clear before pulling the baskets out. If the cause was not burnt food, contact Customer Support.
• Do not leave your air fryer unattended while in use.

Plug & Cord

• Your air fryer has a polarized plug (one prong is wider than the other), which fits into a polarized outlet only one way. If the plug does not fit, reverse the plug. If it still does not fit, do not use the plug in that outlet. Do not alter the plug in any way.
• Do not let the power cord (or any extension cord) hang over the edge of a table or counter, or touch hot surfaces.
• Your air fryer should only be used with 120V, 60Hz electrical systems. Do not plug into another type of outlet.


Note: This air fryer uses a short power-supply cord to reduce the risk of entangling or tripping. Use extension cords with care. The marked electrical rating of the extension cord must be as great as the rating of the fryer.

Electromagnetic Fields (EMF)
The Cosori Smart Air Fryer complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

GETTING TO KNOW YOUR SMART AIR FRYER

Your Cosori Smart Air Fryer uses rapid 360° air circulation technology to cook with little-to-no oil for quick, crispy, delicious food with up to 85% fewer calories than deep fryers. With user-friendly, one-touch controls, nonstick baskets, and an intuitive, safe design, the Cosori Smart Air Fryer is the star of your kitchen.

Air Fryer Diagram

Note:

• Do not try to open the top of the air fryer. It is not a lid.
• The baskets are made of aluminum metal with nonstick coating. They are PFOA-free and BPA-free.

1. Air Inlet
2. Control Screen
3. Inner Basket
4. Outer Basket
5. Basket Handle
6. Sliding Button Guard
7. Basket Release Button
8. Housing Handles
9. Air Outlet
10. Power Cord

DISPLAY DIAGRAM

Note:

• When you press a button to use a function or program, it will turn blue to show that it's active. Pressing again will deselect the function or program. [Figure 1.1]

  Figure 1.1
• To save or reset presets, see Preset Settings.

Presets

Note: This turns the Shake Reminder on/off, and is not a preset.

Control Panel

Note: Press and hold to configure your air fryer. See the VeSync in-app instructions for more information.

Display

Note: This indicates app configuration status. See the VeSync in-app instructions for more information.

DISPLAY MESSAGES

Cooking program has ended.

Reminder to shake or flip food.

Air fryer is preheated and ready to start cooking.

BEFORE FIRST USE

Setting Up

1. Remove all packaging and temporary stickers from the air fryer.
2. Place the air fryer on a stable, level, heatresistant surface. Keep away from areas that can be damaged by steam (such as walls or cupboards). |
   Note: Leave 5 in / 13 cm of space behind and above the air fryer. [Figure 2.1]
   Leave enough room to remove the baskets.

   Figure 2.1
3. Pull the basket handle to remove the baskets. Remove all plastic from the baskets.
4. Press the basket release button to separate the inner basket from the outer basket.
5. Wash both baskets thoroughly, using either a dishwasher or a non-abrasive sponge.
6. Wipe the inside and outside of the air fryer with a slightly moist cloth. Dry with a towel.
7. Put the baskets back inside the air fryer.

Test Run

A test run will help you become familiar with your air fryer, make sure it's working correctly, and clean it of possible residues.

1. Make sure the air fryer baskets are empty, then plug in the air fryer.
2. Press Preheat. The display will show "400°F" and "5 MIN".
3. Press to begin preheating. When preheating is done, the air fryer will beep.
4. Pull out the baskets and let them cool for 5 minutes. Then place the empty baskets back in the air fryer.
5. Press to select the Steak preset. The display will show "400°F" and "6 MIN".
6. Press Temp/Time twice. The time will blink on the display. Press the - button once to change the time to 5 minutes.
7. Press to begin. When finished, the air fryer will beep.
8. Pull out the baskets. This time, let the baskets cool completely for 10–30 minutes.

Basket Tips

• Only separate the baskets to clean or after cooking.
• The button guard protects the release button from being pressed accidentally. Slide the button guard forward to press the basket release button. [Figure 2.2]

  Figure 2.2
• Never press the release button while carrying the baskets.
• Only press the basket release button with the baskets resting on a counter, or any level, heat-resistant surface.
• The handle is attached to the inner basket, not the outer basket. [Figure 2.3] When you press the release button, the outer basket will drop.

  Figure 2.3

Note:

• Do not unscrew the basket handle from the baskets.
• To order accessories, please contact Customer Support.

Rubber Stopper

• The inner basket contains a rubber stopper made of safe, FDA-approved material. This stopper prevents the inner basket from directly touching the outer basket and, in rare cases, damaging the non-stick coating on the baskets.
• The stopper can safely be removed based on user preference. For easy removal, start from the bottom of the inner basket and pull out one side of the stopper at a time. [Figure 2.4]

  Figure 2.4
• If you want to place the rubber stopper back in the inner basket, first soak it in water. [Figure 2.5] Then push the stopper back in through the bottom of the basket. Push in one side of the stopper at a time.

  Figure 2.5

VeSync App Setup

Note: Due to ongoing updates and improvements, the VeSync app may be slightly different than shown in the manual. In case of any differences, follow the in-app instructions.

1. To download the VeSync app, scan the QR code or search "VeSync" in the Apple App Store^® or Google Play Store.






   Note: For Android^™ users, choose "Allow" to use VeSync.
2. Open the VeSync app. If you already have an account, tap Log In. To create a new account, tap Sign Up.
   Note: You must create your own VeSync account to use third-party services and products. These will not work with a guest account. With a VeSync account, you can also allow your family and friends to control your smart air fryer.
3. Tap + and select your smart air fryer.
4. Follow the in-app instructions to set up your smart air fryer.

Note:

• You can change the name and icon at any time by going to the smart air fryer screen and tapping .
• You can use the VeSync app to connect your smart air fryer to Amazon Alexa or Google Assistant™.

USING YOUR SMART AIR FRYER

Note: You can use the VeSync app to monitor cooking, follow in-app recipes, and access additional features.
For a list of smart features, see VeSync App Features.

Preheating

We recommend preheating before placing food into the air fryer, unless your air fryer is already hot. Food will not cook thoroughly without preheating.

1. Plug in. Press to turn on the display.
2. Press Preheat. The display will show "400°F" and "5 MIN".
3. Optionally, press the + or – buttons to change the temperature. The time will adjust automatically.

Temperature	Time
400°F / 204°C	5 minutes
390°F / 199°C	5 minutes
380°F / 193°C	5 minutes
370°F / 188°C	4 minutes
360°F / 182°C	4 minutes
350°F / 177°C	4 minutes
340°F / 171°C	4 minutes
330°F / 166°C and below	3 minutes

4. Press to begin preheating.
5. When preheating is done, the air fryer will beep 3 times. The display will show the set preheat temperature. [Figure 3.1]

   Figure 3.1

Note: If no buttons are pressed for 3 minutes, the air fryer will clear all settings and go into standby.

Air Frying

Note:

• Do not place anything on top of your air fryer. This will disrupt airflow and cause poor air frying results. [Figure 3.2]

  Figure 3.2

• An air fryer is not a deep fryer. Do not fill the baskets with oil, frying fat, or any liquid.
• When taking the baskets out of the air fryer, be careful of hot steam, and do not press the basket release button.

Preset Settings

Using a preset is the easiest way to air fry. Presets are programmed with an ideal time and temperature for cooking certain foods.

• You can customize a preset's time (1–60 minutes), temperature (170°–400°F / 77°–204°C), and Shake Reminder, unless noted.

Note: You can use multiple presets in one cooking session using the VeSync app.

• To change a preset's default settings:
  1. Choose a preset and adjust the time and/or temperature. Optionally, add or remove the Shake Reminder by pressing SHAKE.
  2. Press and hold the preset icon until the air fryer beeps 1 time.

Note: You can customize the time for the Shake Reminder using the VeSync app.

• To reset a preset:
  • Without making changes, press and hold both the preset icon and Temp/Time for 3 seconds until the air fryer beeps 1 time.
• To reset all presets:
  • Press and hold both + and – for 3 seconds until the air fryer beeps 1 time.

Results may vary. Check out our Quick Reference Guide and Recipe Book for a guide to customizing presets for perfect results.

Preset	Symbol	Default Temperature	Default Time	Shake Reminder?*
Steak		400°F / 204°C	6 minutes	-
Chicken		380°F / 193°C	23 minutes	-
Seafood		350°F / 177°C	8 minutes	-
Shrimp		370°F / 188°C	6 minutes	((SHAKE))
Bacon		320°F / 160°C	8 minutes	-
Frozen Foods		380°F / 193°C	8 minutes	((SHAKE))
French Fries**		380°F / 193°C	25 minutes	((SHAKE))
Vegetables		320°F / 160°C	8 minutes	((SHAKE))
Toast		320°F / 160°C	8 minutes	-
Bake		300°F / 149°C	35 minutes	-
Preheat		400°F / 204°C	5 minutes (auto adjust)	-
Keep Warm		170°F / 77°C	5 minutes	-

* See Shaking Food.
** See Cooking Guide for tips on air frying french fries

Air Frying

1. Preheat your air fryer.
2. When your air fryer displays "READY", add food to the baskets.
3. Select a preset.
4. Optionally, customize the preset's temperature and time, and add a Shake Reminder. You can do this anytime during cooking.
   1. Press Temp/Time to switch between controlling temperature or time. The temperature or time will blink on the display.
   2. Press the + or – buttons to change the temperature (170°–400°F / 77°–204°C) or time (1–60 minutes).

Note:

• You can also set a custom time and temperature without choosing a preset.
• You can use multiple presets in one cooking session using the VeSync app.

Note:

• To rapidly increase or decrease time or temperature, press and hold the + or – buttons.
• If you do not press Temp/Time, pressing + or – will automatically change the temperature.

3. Press SHAKE to add or remove a Shake Reminder during cooking.

5. Press to begin air frying.
6. When Shake Reminder is turned on, it will appear halfway through the cooking time (unless customized using the VeSync app). The air fryer will beep 5 times, and ((SHAKE)) will blink on the display.
   1. Take the baskets out of the air fryer, being careful of hot steam. The air fryer will pause cooking automatically, and the display will turn off until the baskets are replaced.
   2. Shake or flip the food. Be careful not to press the basket release button.
   3. Put the baskets back into the air fryer.
      Note: See Shaking Food .
7. The air fryer will beep 3 times when finished. The display will show:

8. Optionally, press Keep Warm. Press the + or – buttons to change the time (1–60 minutes).
9. Take the baskets out of the air fryer, being careful of hot steam.
10. Remove the inner basket from the outer basket to serve food. When separating baskets:
    1. Make sure the baskets are resting on a flat surface.
    2. Watch for hot oil or fat collected in the outer basket. To avoid splashing, drain oil before replacing inner basket. [Figure 3.3]

       Figure 3.3

11. Allow to cool before cleaning.

Shaking Food

How to Shake

• During cooking, take the baskets out of the air fryer and shake, mix, or flip the food.
  1. To shake food:
     1. Hold the baskets just above a heat-resistant surface for safety purposes. Do not press the basket release button.
     2. Shake the baskets.
  2. If the baskets are too heavy to shake:
     1. Place the baskets on a heatresistant holder or surface.
     2. Separate the baskets. Make sure no liquids are dripping from the inner basket.
     3. Carefully shake the inner basket.
        Note: Do not use this method if there is a risk of hot liquids splashing.
  3. If the baskets are too heavy to shake and there are hot liquids present:
     1. Place the baskets on a heatresistant holder or surface.
     2. Use tongs to mix or flip the food.
• When you take the baskets out, the air fryer will pause cooking automatically. As a safety feature, the display will turn off until the baskets are replaced.
• When you replace the baskets, cooking will automatically resume.
• Avoid shaking longer than 30 seconds, as the air fryer may start to cool down.

What to Shake

• Small foods that are stacked, such as fries or nuggets, will usually need shaking.
• Without shaking, food may not be crispy or evenly cooked.
• You can flip other food, such as steak, to ensure even browning.

When to Shake

• Shake or flip food once halfway through cooking, or more if desired.
• The Shake Reminder is designed to remind you to check on your food. Tap SHAKE to turn on the Shake Reminder. Certain presets use the Shake Reminder automatically (see Preset Settings.
• The Shake Reminder will appear halfway through cooking time. This can be changed using the VeSync app.

Shake Reminder

• The Shake Reminder will alert you with 5 beeps, and "((SHAKE))" will blink on the display.
• If you do not remove the baskets, the Shake Reminder will beep again after 1 minute and the display will show a solid "((SHAKE))".
• The Shake Reminder will go away once you take out the baskets.

Cooking Guide

Overfilling

• If the baskets are overfilled, food will cook unevenly.
• Baskets should not be filled over the "MAX" line in the inner basket. [Figure 3.4]
  Do not pack in food.
  Do not overfill

  Figure 3.4

Using Oil

• Adding a small amount of oil to your food will make it crispier. Use no more than 2 US tbsp / 30 mL of oil.
• Oil sprays are excellent for applying small amounts of oil evenly to all food items.

Food Tips

• You can air fry any frozen foods or goods that can be baked in an oven.
• To make cakes, hand pies, or any food with filling or batter, place food in a heatsafe container before placing it in the baskets.
• Air frying high-fat foods will cause fat to drip to the bottom of the baskets. To avoid excess smoke while cooking, pour out fat drippings after cooking.
• Liquid-marinated foods create splatter and excess smoke. Pat these foods dry before air frying.

French Fries

• Add ½–1 US tbsp / 8–15 mL oil for crispiness.
• When making fries from raw potatoes, soak uncooked fries in water for 15 minutes to remove starch. Pat dry with a towel before adding oil.
• Cut uncooked fries smaller for crispier results. Try cutting fries into ¼- by 3-inch / 0.6- by 7.6-cm strips.

Note: For more from the Cosori Kitchen, check out our Recipe Book and Tips from the Chef.

More Functions

Switching Temperature Units

1. Press and hold Temp/Time for 3 seconds.
2. The air fryer will beep once, and the temperature unit will change from Fahrenheit to Celsius.
3. Repeat to switch back to Fahrenheit.

Pausing

• Press to pause cooking. The air fryer will stop heating, and will blink until you press again to resume cooking.
• After 30 minutes of inactivity, the air fryer will turn off.
• This function allows you to pause the cooking program without removing the baskets from the air fryer.

Automatically Resume Cooking

• If you pull out the baskets, the air fryer will pause automatically. The display will turn off temporarily as a safety feature.
• When you return the baskets, the air fryer will automatically resume based on your previous settings.

Automatic Shutoff

• If the air fryer has no active cooking programs, it will clear all settings and turn off after 3 minutes of inactivity.

Overheat Protection

• If the air fryer overheats, it will automatically shut down as a safety feature.
• Let the air fryer cool down completely before using it again.

VeSync App Features

The VeSync app allows you to access additional smart air fryer functions, including those listed below.

Remote Control

• All smart air fryer functions can be controlled remotely, except for starting cooking (to comply with UL safety regulations).
• Cooking progress can be monitored from a distance.

Preset Customization

• The time that the Shake Reminder appears during cooking can be customized.
• New custom presets can be created.

Custom Cooking Programs

• Multiple presets can be combined to make customized cooking programs for multi-phase cooking.

In-App Recipes

• Pre-programmed recipes made by Cosori's in-house chefs are available in the app. These recipes automatically set the recommended time and temperature.
• Create and save custom recipes.

Third-Party Voice Control

• Compatible with Amazon Alexa and Google Assistant^™ for voice commands.

Note: The VeSync app is continually updated and app features will expand.

ACCESSORIES

You can purchase accessories for your smart air fryer from Cosori's online store. Go to cosori.com for more information.

If you have any questions, please contact Customer Support.

CARE & MAINTENANCE

Note:

• Always clean the air fryer baskets and interior after every use.
• Lining the outer basket with foil may make cleanup easier.

1. Turn off and unplug the air fryer. Allow it to cool completely before cleaning. Pull out the baskets for faster cooling.
2. Wipe the outside of the air fryer with a moist cloth, if necessary.
3. The baskets are dishwasher safe. You can also wash the baskets with hot, soapy water and a non-abrasive sponge. Soak if necessary.
   Note: The baskets have a nonstick coating. Avoid using metal utensils and abrasive cleaning materials. Figure 4.1
4. For stubborn grease:
   1. In a small bowl, mix 2 US tbsp / 30 mL of baking soda and 1 US tbsp / 15 mL of water to form a spreadable paste.
   2. Use a sponge to spread the paste on the baskets and scrub. Let the baskets sit for 15 minutes before rinsing.
   3. Wash baskets with soap and water before using.
5. Clean the inside of the air fryer with a slightly moist, non-abrasive sponge or cloth. Do not immerse in water. [Figure 4.1] If needed, clean the heating coil to remove food debris.

   Figure 4.1
6. Dry before using.

Note: Make sure the heating coil is completely dry before turning on the air fryer.

TROUBLESHOOTING

Problem	Possible Solution
The air fryer will not turn on.	Make sure the air fryer is plugged in.
	Push the baskets securely into the air fryer.
Food is not completely cooked.	Place smaller batches of food into the inner basket. If the basket is overstuffed, then food will be undercooked.
	Increase cooking temperature or time.
Food is cooked unevenly.	Foods that are stacked on top of each other or close to each other need to be shaken or flipped during cooking (see Shaking Food).
Food is not crispy after air frying.	Spraying or brushing on a small amount of oil can increase crispiness (see Cooking Guide).
French fries are not cooked correctly.	See French Fries.
Baskets will not slide into the air fryer securely.	Make sure the inner basket is not overfilled.
	Make sure the inner basket is securely inside the outer basket.
White smoke or steam is coming out of the air fryer.	The air fryer may produce some white smoke or steam when you use it for the first time or during cooking. This is normal.
	Make sure the baskets and the inside of the air fryer are cleaned properly and not greasy.
	Cooking greasy foods will cause oil to leak into the outer basket. This oil will produce white smoke, and the baskets may be hotter than usual. This is normal, and should not affect cooking. Handle baskets with care.
Dark smoke is coming out of the air fryer.	Immediately unplug your air fryer. Dark smoke means that food is burning or there is a circuit problem. Wait for smoke to clear before pulling the baskets out. If the cause was not burnt food, contact Customer Support.
The air fryer has a plastic smell.	Any air fryer may have a plastic smell from the manufacturing process. This is normal. Follow the instructions for a Test Run (page 9) to get rid of the plastic smell. If a plastic smell is still present, please contact Customer Support.
Display shows Error Code "E1".	There is an open circuit in the temperature monitor. Contact Customer Support .
Display shows Error Code "E2".	There is a short circuit in the temperature monitor. Contact Customer Support.
Display shows Error Code "E3".	The air fryer's overheat protection has activated. Turn off and unplug the air fryer and allow it to cool completely. If the display continues to show "E3", contact Customer Support.
Display shows Error Code "E4".	The air fryer has been plugged into a 220–240V outlet. Unplug the air fryer. Only use the air fryer with 120V, 60Hz outlets.

If your problem is not listed, please contact Customer Support.

SHOW US WHAT YOU'RE MAKING

We hope this manual has been helpful. We can't wait to see your beautiful results, and we think you'll want to share glam shots! Our community awaits your uploads—just pick your platform of choice below. Snap, tag, and hashtag away, Cosori chef!

#iCookCosori

@cosoricooks

Cosori Appliances

Considering what to cook? Many recipe ideas are available, both from us and the Cosori community.

MORE COSORI PRODUCTS

If you're happy with this air fryer, the line doesn't stop here. Check out www.cosori.com for a line of all our beautiful and thoughtfully designed cookware. They might be right at home in your kitchen, too!

the Cosori Cooks Community on Facebook facebook.com/groups/cosoricooks

our recipe gallery www.cosori.com/recipes

weekly, featured recipes made exclusively by our in-house chefs

CONTACT OUR CHEFS
Our helpful, in-house chefs are ready to assist you with any questions you might have!
Email: recipes@cosori.com
Toll-Free: (888) 402-1684
M-F, 9:00 am–5:00 pm PST/PDT

Documents / Resources

References

• App Store - Apple
• Google Play
• COSORI - Air Fryers, Toaster Ovens, Food Dehydrators, Recipes and more
• COSORI - Air Fryers, Toaster Ovens, Food Dehydrators, Recipes and more
• http://facebook.com/groups/cosoricooks
• COSORI Recipes Using Air Fryers, Pressure Cooker, Ovens, and Food Dehydrators

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download COSORI Smart CS358-AF Series - 5.8-Quart Air Fryer Manual
