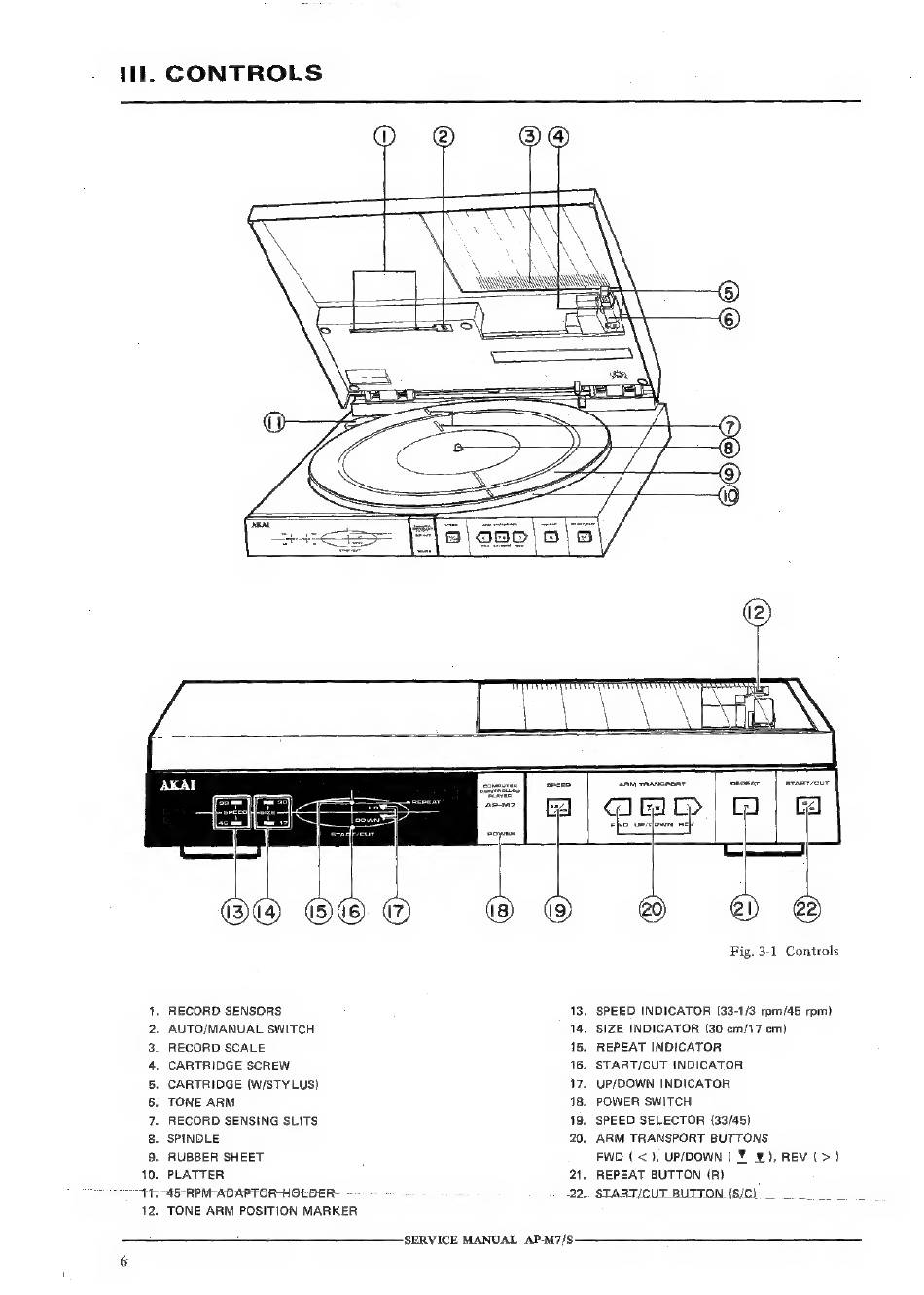

tl. CONTROLS
never
>
. RECORD SENSORS
. AUTO/MANUAL SWITCH
. RECORD SCALE
. CARTRIDGE SCREW
. CARTRIDGE (W/STYLUS)
TONE ARM
. RECORD SENSING SLITS
. SPINDLE
} . RUBBER SHEET
. PLATTER
"41.45 RPM-ADAPTOR HOLDER:
12. TONE ARM POSITION MARKER
SOON AnDRONS
|
a,
22.
SERVICE MANUAL AP-M7/S:
Fig. 3-1 Controls
. SPEED INDICATOR (33-1/3 rpm/45 rpm)
. SIZE INDICATOR (30 cm/17 cm)
. REPEAT INDICATOR
. START/CUT INDICATOR
. UP/DOWN INDICATOR
. POWER SWITCH
. SPEED SELECTOR (33/45)
| . ARM TRANSPORT BUTTONS
FWD ( <), UP/DOWN ( ¥ ¥), REV(>)
REPEAT BUTTON (R)
START/CUT._ BUTTON {S/C)
