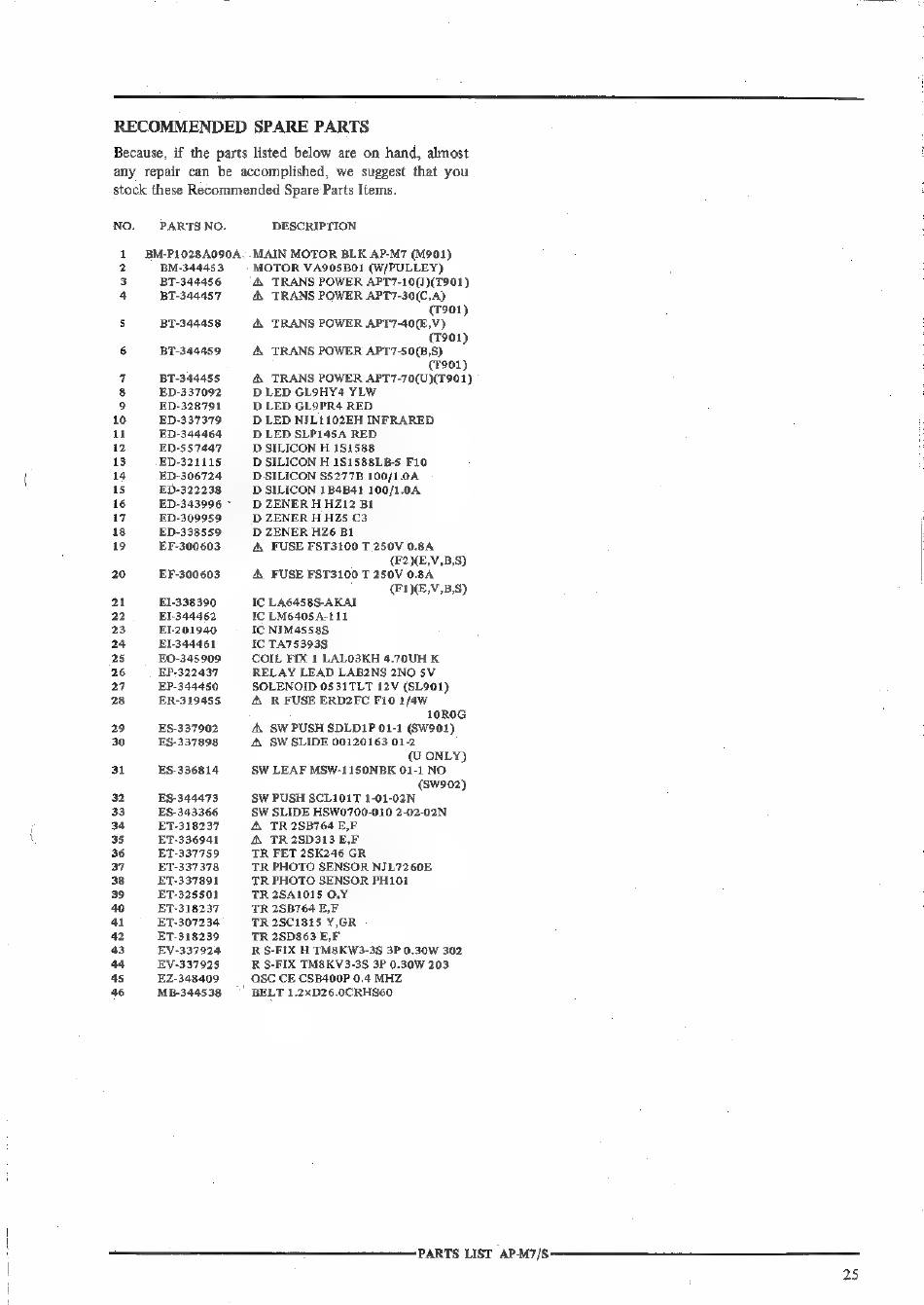

RECOMMENDED SPARE PARTS
Because, if the parts listed below are on hand, almost
any repair can be accomplished, we suggest that you
stock these Recommended Spare Parts Items.
NO. PARTS NO. DESCRIPTION
1 BM-P1028A090A_ MAIN MOTOR BLK AP-M7 (M901)
2 BM-344453 | MOTOR VA905B01 (W/PULLEY)
3 BT-344456 A TRANS POWER APT7-10())(T901)
4 BT-344457_ A: TRANS POWER APT7-30(C,A)
(7901)
5 BT-344458 4. TRANS POWER APT7-40(E,V)
(1901)
6 BT-344459 A TRANS POWER APT7-50(B,S)
(7901)
7 BT-344455 4. TRANS POWER APT7-70(U)(T901)
8 ED-337092 D LED GL9HY4 YLW
9 ED-328791 D LED GL9PR4 RED
10 ED-337379 D LED NJL1102EH INFRARED
Ww ED-344464 D LED SLP145A RED
12 ED-557447 D SILICON H 181588
13 ED-321115 D SILICON H 1S81588LB-5 F10
14 ED-306724 D SILICON $5277B 100/1.0A
15 ED-322238 D SILICON 1B4B41 100/1.0A,
16 ED-343996 * =D ZENERHHZ12 B1
17 ED-309959 D ZENER H HZS5 C3
18 ED-338559 D ZENER HZ6 B1
19 EF-300603 A FUSE FST3100 T 250V 0.8A
(F2)(E,V,B,S)
20 EF-300603 A. FUSE FST3100 T 250V 0.8A
(FI)E,V,B,S)
21 EI-338390 IC LA6458S-AKAI
22 EI-344462 IC LM640SA-111
23 EI-201940 IC NJM4558S
24 EI-344461 IC TA75393S
25 EO-345909 COIL FIX 1 LALO3KH 4.70UH K
26 EP-322437 RELAY LEAD LAB2NS 2NO SV
27 EP-344450 SOLENOID 0531TLT 12V (SL901)
28 ER-319455 4 R FUSE ERD2FC Fi0 1/4W
10R0G
29 ES-337902 A. SW PUSH SDLD1P 01-1 (SW901)
30 ES-337898 A SW SLIDE 00120163 01-2
( ONLY)
31 ES-336814 SW LEAF MSW-1150NBK 01-1 NO
(sw902)
32 ES-344473 SW PUSH SCL101T 1-01-02N
33: ES-343366 SW SLIDE HSW0700-010 2-02-02N
34 «ET-318237 A TR 2SB764E,F
35 ET-336941 A _TR 2SD313 E,F
36 ——-ET-337759 |—s TR FET 28K246 GR
37 ET-337378 | TR PHOTO SENSOR NJL7260E
38 ET-337891 | TR PHOTO SENSOR PH101
39 ET-325501 TR 2SA1015 0,Y
40 ET-318237 TR 2SB764 E,F
41 ET-307234 TR 2SC1815 Y,GR
42 ET-318239 TR 2SD863 E,F
43 EV-337924 R S-FIX H TM8KW3-3S 3P 0,30W 302
44 EV-337925 R S-FIX TM8KV3-38 3P 0.30W 203
45 EZ-348409 OSC CE CSB400P 0.4 MHZ
46 MB-344538 9 BELT 1.2xD26.0CRHS60
