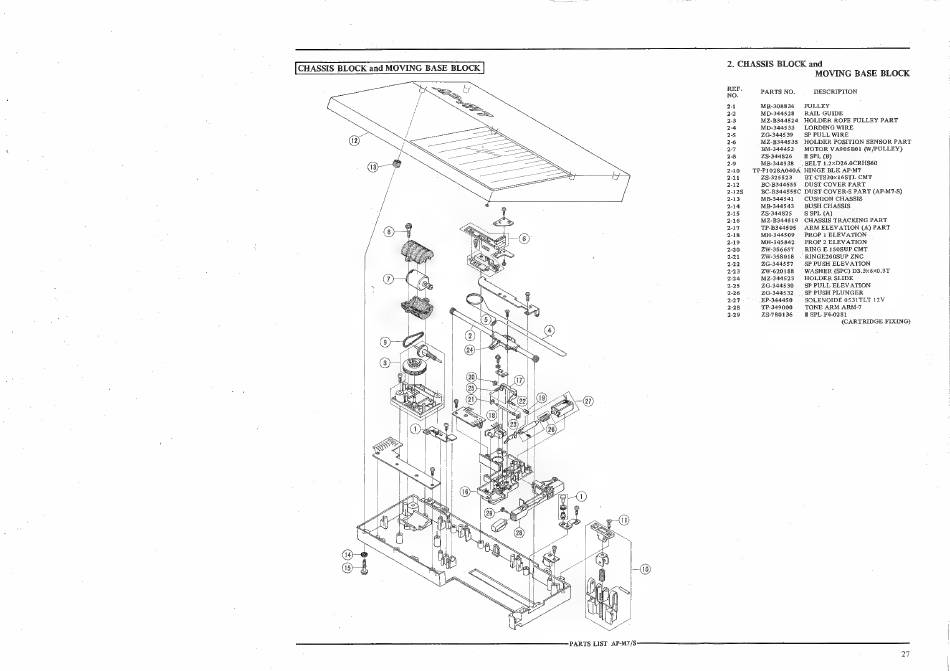

Akai AP-M7 Service Manual page 27

2. CHASSIS BLOCK and
MOVING BASE BLOCK
REF.
NO. PARTS NO. DESCRIPTION
24 MR-308836 PULLEY
22 MD-344528 RAIL GUIDE
2-3 MZ-B344524 HOLDER ROPE PULLEY PART
2-4 MD-344533 LORDING WIRE
25 ZG-344539 SP PULL WIRE
2-6 MZ-B344535 HOLDER POSITION SENSOR PART
2-7 BM-344453_ MOTOR VA905B01 (W/PULLEY)
28 2S8-344826 S SPL (B)
2-9 MB-344538 — BELT 1.2xD26.0CRHS60
2-10 TP-P1028A040A HINGE BLK AP-M7
2-11 ZS-325523 BT CTS30x16STL CMT
2-12 BC-B344555 DUST COVER PART
2-128 BC-B344555C DUST COVER-S PART (AP-M7-S)
2-13 MB-344541 CUSHION CHASSIS
2-14 MB-344543 BUSH CHASSIS.
2-15 2S-344825 S SPL (A)
2-16 MZ-B344519 CHASSIS TRACKING PART
2-17 TP-B344505 ARM ELEVATION (A) PART
2-48 MH-344509 PROP 1 ELEVATION
2-19 MH-345842 PROP 2 ELEVATION
2:20 ZW-356657 RING E 150SUP CMT
221 ZW-358018 | RINGE200SUP ZNC
2:22 ZG-344557 SP PUSH ELEVATION
2-23 ZW-620188 | WASHER (SPC) D3.3x6x0.3T
224 MZ-344523 HOLDER SLIDE
2-25 ZG-344530 SP PULL ELEVATION
2-26 ZG-344532 SP PUSH PLUNGER
2-27 EP-344450 = SOLENOIDE 0531TLT 12V
2-28 TP-349000 TONE ARM ARM-7
2-29 ZS-780136 S SPL F4-0281
(CARTRIDGE FIXING) i
PARTS LIST AP-M7/S
27
