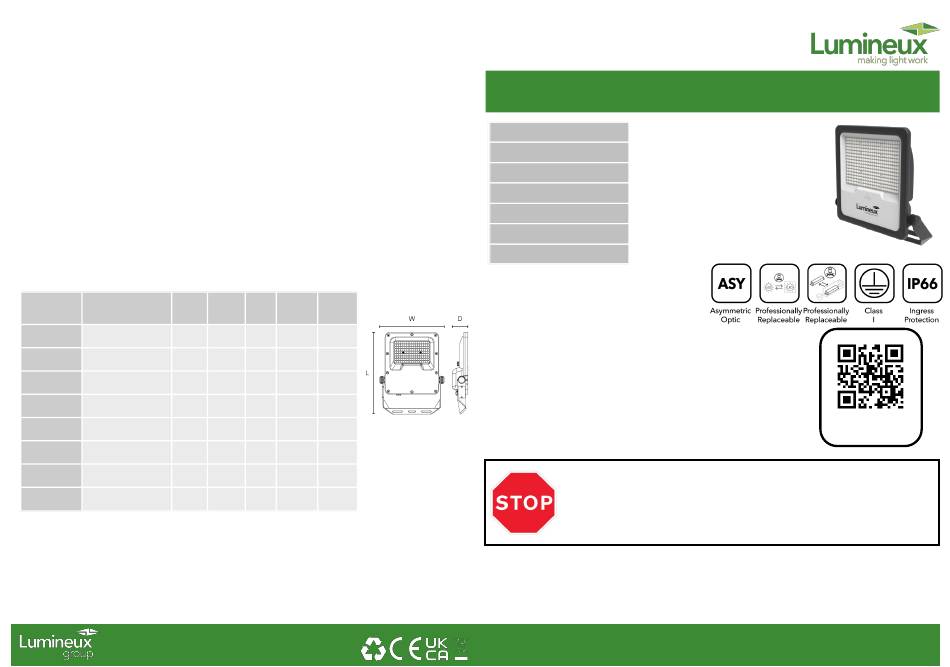

Lumineux Frankly Plus Installation Instructions

Dimensions:
Part No. Description L
(mm)
430974 Frankly Plus 30W 344
430975 Frankly Plus 50W 344
430976 Frankly Plus 100W 390
430977 Frankly Plus 150W 419
430978 Frankly Plus 150W 419
430979 Frankly Plus 200W 459
430980 Frankly Plus 240W 499
430981 Frankly Plus 300W 499
End Of Life Disposal:
Disassembly instructions for end of life disposal available on website.
Disposal of Electronic Equipment WEEE Directive 2002/96/EC This product falls within the scope of the
Waste Electrical & Electronic Equipment Directive (WEEE), which means the product should not be
disposed of as normal household waste. Please recycle where facilities exist or check with your Local
Authority. RoHS – All components and materials used in this product are RoHS 2002/95/EC compliant.
Specifications may change from time to time. The information contained in this leaflet is for guidance only
and should not be considered as always accurate and should be treated as not representative.
Manby Park, Manby, Louth, Lincolnshire, LN11 8UT
Lumineux Group is a trading name of B&T Associates Ltd.
W D Weight EPA
(mm) (mm) (kg) (m²)
269 65 1.97 0.07
269 65 1.97 0.07
317 65 3.2 0.095
349 65 3.8 0.117
349 65 3.8 0.117
387 65 4.7 0.141
441 70 5.82 0.183
441 70 5.9 0.183
Installation Instructions
Frankly Plus Floodlight
Input
Power
Operating Temp
Connection Type
Emergency Option
Control Connection
Light Source Energy Rating
Box Contents:
• Frankly Plus
Tools Required For Installation:
•
Wire Strippers /Cutters
•
Hex Key (8mm for 30W-50W
10mm for 100W-300W)
READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLATION
This product must be installed by a qualified electrician or competent person,
and in accordance with current building and IET wiring regulations.
Warranty:
This luminaire is warranted for a period of Years from the date of purchase**. The warranty could be
invalidated should the light fitting not be installed according to these instructions, outside the scope of the
specification or if the product has been altered or tampered with in any way. Please see website for terms
and conditions.
Rev L1.0 241880
www.lumineux.co.uk
120-240V AC 50/60Hz
30/50/100/150/200/240/300W
-30ºC—+45ºC STD, -20°C— +45°C DD
Flying Lead
430964 & 430978
N/A
A
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
IMPORTANT:
5
Scan for more
Information.
Technical Helpline:
+44(0)1507 328031
