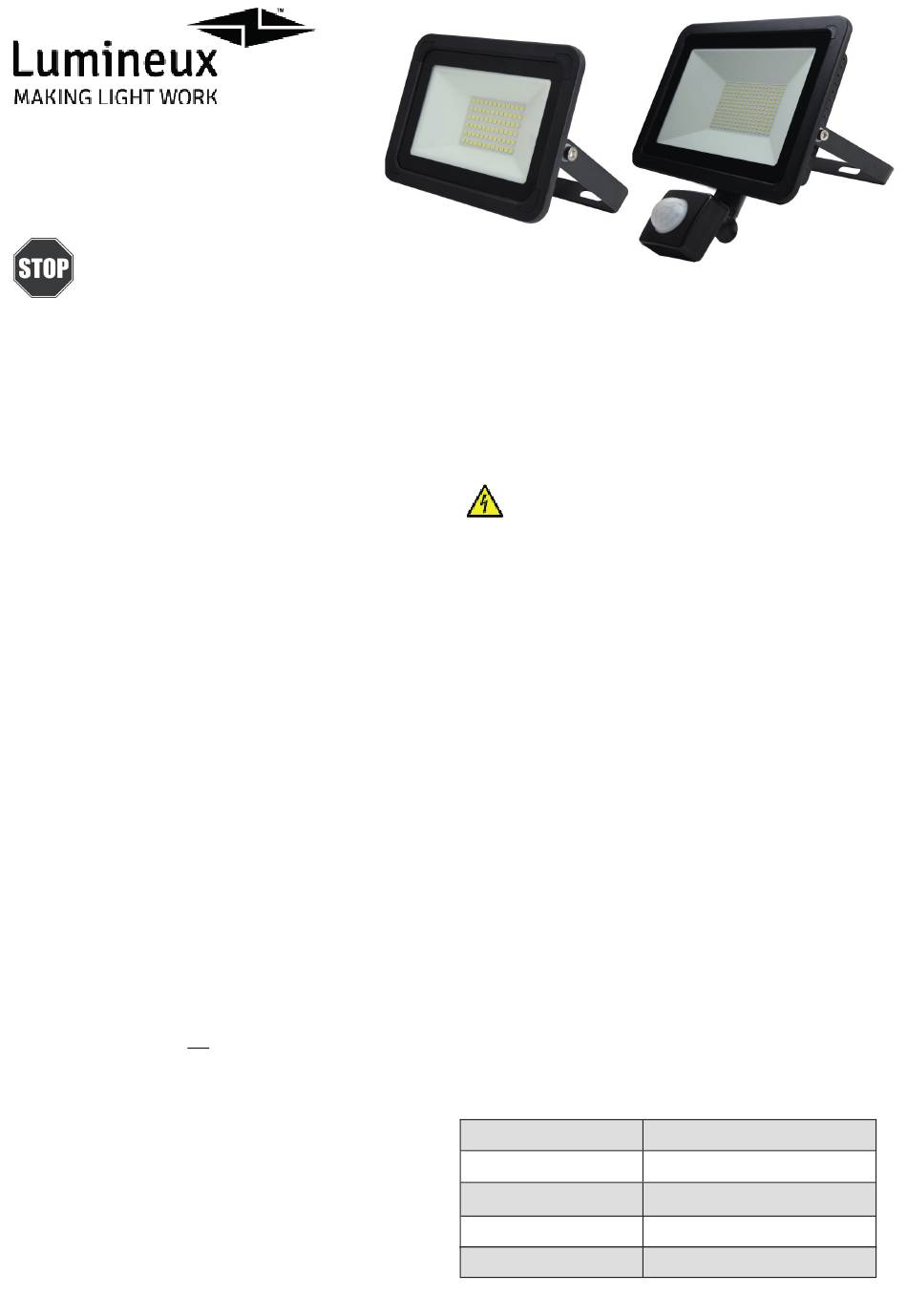

Lumineux LIFFORD Quick Start Manual

LIFFORD Floodlight
10W - 100W Standard
10W - 80W PIR
READ THESE INSTRUCTIONS THOROUGHLY BEFORE
INSTALLATION KEEP THESE INSTRUCTIONS FOR
IMPORTANT: This product must be installed by a qualified
electrician or competent person, and in accordance with
current building and IEE wiring regulations.
GENERAL:
This lighting fixture is designed for permanent connection to fixed
wiring which must have suitable circuit protection by the means of the
appropriate MCB or fuse.
The product is suitable for installation on surfaces with normal
flammability e.g. wood, plasterboard and masonry. It is not suitable for
highly flammable surfaces such as polystyrene or textiles.
LED Chips can be susceptible to damage by vapours, gases, etc emitted
by other materials, especially rubber, which can cause a reduction in
light output performance.
Therefore DO NOT introduce any parts such as alternative grommets
etc. to the inside of this fixture, other than what has been provided.
Failing to observe this and any damage caused thereby, may invalidate
the warranty.
MAINTENANCE:
To avoid personal injury or damage to equipment, disconnect the
power to the light fitting before conducting any maintenance
WARNING: No user serviceable parts inside of the fixture, risk of
electric shock.
Clean the lens periodically as needed to ensure continued light output
performance. Clean only with non-abrasive cloth and mild detergent if
required.
WARRANTY:
This luminaire is warranted for a period of 3 years from the date of
purchase. The warranty could be invalidated should the light fitting not
be installed according to these instructions, outside the scope of the
specification or the product has been altered or tampered with in any
way. Please see website for terms and conditions.
DISPOSAL:
The light source of this unit is not replaceable; when the light source
reaches its end of life the whole luminaire shall be replaced.
Disposal of Electronic Equipment WEEE Directive 2002/96/EC This
product falls within the scope of the Waste Electrical & Electronic
Equipment Directive (WEEE), which means the product should not be
disposed of as normal household waste. Please recycle where facilities
exist or check with your Local Authority . RoHS – All components and
materials used in this product are RoHS 2002/95/EC compliant.
*Specifications may change from time to time. The information
contained in this leaflet is for guidance only and should not be consid-
ered as always accurate and should be treated as not representative.
FUTURE REFERENCE
UNPACKING:
This lighting fixture has been properly packed to avoid damage
during transit. Before commencing with the installation carefully
inspect the luminaire to confirm there is no damage. DO NOT
INSTALL if any damage has occurred to the fixture or any of its
components.
CARTON CONTENTS:
• •
Fixture Instruction Sheet
INSTALLATION :
WARNING: Risk of damage to the light fitting! Isolate the AC
power before proceeding.
1. Select the position as required for the floodlight.
2. Remove the mounting bracket from the floodlight (bracket can
be left on the fitting)
3. Secure the luminaire mounting bracket to the surface location
using the appropriate screws and wall plugs. (2)
4. Re-assemble the luminaire to the fixing bracket using the original
fasteners and ensuring no cables are trapped between the bracket
and the light fitting. (3)
5. Connect the floodlight to the AC supply, with an appropriate
junction box or connection fitting, making sure any exposed
connections and joints are sufficiently weatherproofed. Use an
IP65 rated junction box if located outside.
6. Make the electrical connections as follows: (4)
BROWN = LIVE
BLUE = NEUTRAL
GREEN/YELLOW = EARTH
7. Adjust the angle of the floodlight by the retaining/adjustment
bolt, making sure the bolt is re-tightened when completed.
Do not exceeding the mounting angle limits (5).
8. Switch the AC power on to check the light fitting illuminates.
9. (PIR Model) Adjust PIR settings to your preference.
PRODUCT SPECIFICATIONS:
Luminaire Type:
Model
Operating Temp:
IP Rating:
Input Voltage
LED Floodlight
Lifford
-20°C to +30°
IP65
220-240VAC
