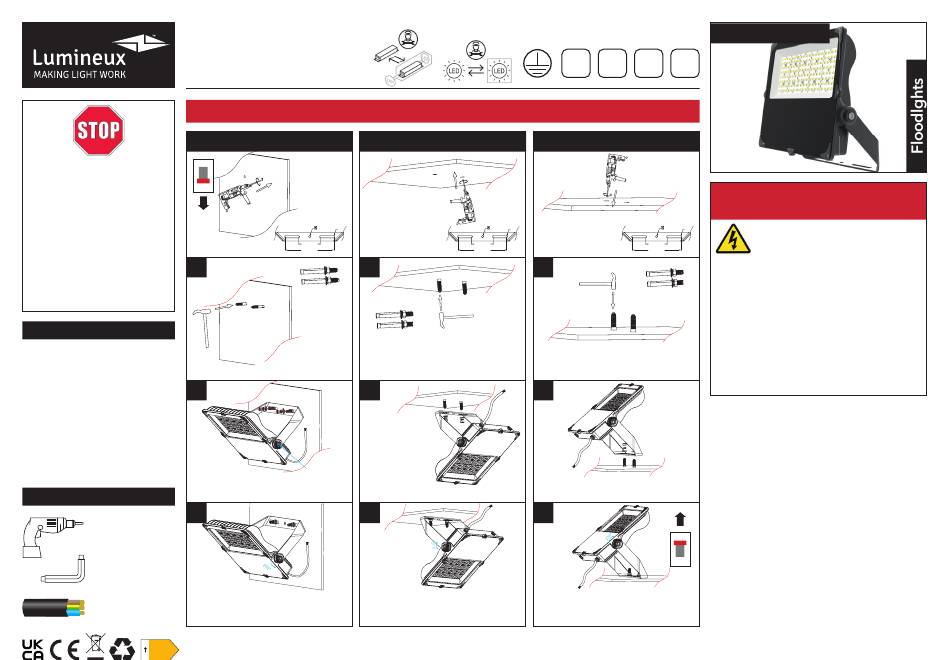

Lumineux Frankly Plus Installation Instructions

Frankly Plus
Floodlights
1: Wall installation
READ THESE INSTRUCTIONS on
THOROUGHLY BEFORE
off
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
IMPORTANT:
This product must be installed
2
by a qualifi ed electrician or
competent person, and in
accordance with current building
and IET wiring regulations.
BOX CONTENTS
This lighting fi xture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the
3
luminaire to confi rm there is no
damage. DO NOT INSTALL if any
damage has occurred to the fi xture
or any of its components.
• Light Fitting
• Instruction Manual
• Brackets
Loosen gear adjustment screws on left & right
sides, then align the mounting holes of the bracket
TOOLS REQUIRED
4
• Drill /
Screwdriver
• 8mm Allen Key
Tighten mounting bracket screws then adjust
the illumination angle of the lamp. Lock the gear
• Cable
adjustment screw and connect the power AC
input line on the lamp to the mains. Complete!
A
E E Manby Business Park, Manby, Lincolnshire, LN11 8UT
Lumineux is a B&T Associates Ltd company.
G
INSTALLATION INSTRUCTIONS
1: Ceiling installation
Drill two holes in
the wall with an
electric hammer.
Use an electric hammer
11.00
R5.50 to drill two holes in the
ceiling.
100.00
220.00
2
Anchor bolts
Use a hammer
to drive the two
anchor bolts into
Anchor bolts
the previously
drilled holes.
Use a hammer to drive the two anchor bolts into
3
AC Input
Loosen gear adjustment
screws on left & right
Gear adjustment
sides, then align the
screw
mounting holes of
the bracket with the
two expansion screws and tighten.
with the two expansion screws and tighten.
4
AC Input
Tighten mounting bracket screws then adjust
the illumination angle of the lamp. Lock the gear
adjustment screw and connect the power AC
input line on the lamp to the mains. Complete!
100W, 150W, 200W, 240W, 300W & 400W
IP66
1: Ground installation
Drill two holes in the
11.00
R5.50 fl oor with an electric
hammer.
100.00
220.00
2
Use a hammer to drive the two anchor bolts into
the previously drilled holes. the previously drilled holes.
3
AC Input
Loosen gear adjustment screws on left & right sides,
then align the mounting holes of the bracket with
the two expansion screws and tighten.
4
AC Input
AC Input
Tighten mounting bracket screws then adjust
the illumination angle of the lamp. Lock the gear
adjustment screw and connect the power AC
input line on the lamp to the mains. Complete!
Technical Helpline: +44 (0)1507 328031
Frankly Plus
50,000
5 YR
IK08
Warranty
Hours
PLEASE READ THESE INSTRUCTIONS
BEFORE INSTALLATION.
11.00
WARNING: Risk of electric shock! Isolate
R5.50
the mains power before proceeding.
100.00
220.00
• Turn off the mains power before performing
inspections, installation, or removal
• Verify that the supply voltage is correct by
Anchor bolts
comparing it with the luminaire label information
• It is the installers responsibility to ensure installation
is suitable for the total load of the luminaire(s). The
supply cable, fuses/circuit brakers must be correctly
rated for the electrical load and considering for any
transient inrush currents that may occur
• Do not perform insulation strength or resistance
tests on installed luminarie(s) connected
AC Input
on
off
