Lumineux Tring RGBW 10W Manual

Tring
RGBW
Floodlights
1
READ THESE INSTRUCTIONS
THOROUGHLY BEFORE
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
IMPORTANT:
This product must be installed
by a qualifi ed electrician or
competent person, and in
accordance with current building
and IET wiring regulations.
BOX CONTENTS
This lighting fi xture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the
4
luminaire to confi rm there is no
damage. DO NOT INSTALL if any
damage has occurred to the fi xture
or any of its components.
• Light Fitting
• Instruction Manual
• Fixing Kit
TOOLS REQUIRED
• Drill
• 5mm Hex Key
• Cable
A
G G Manby Business Park, Manby, Lincolnshire, LN11 8UT
G Lumineux is a B&T Associates Ltd company.

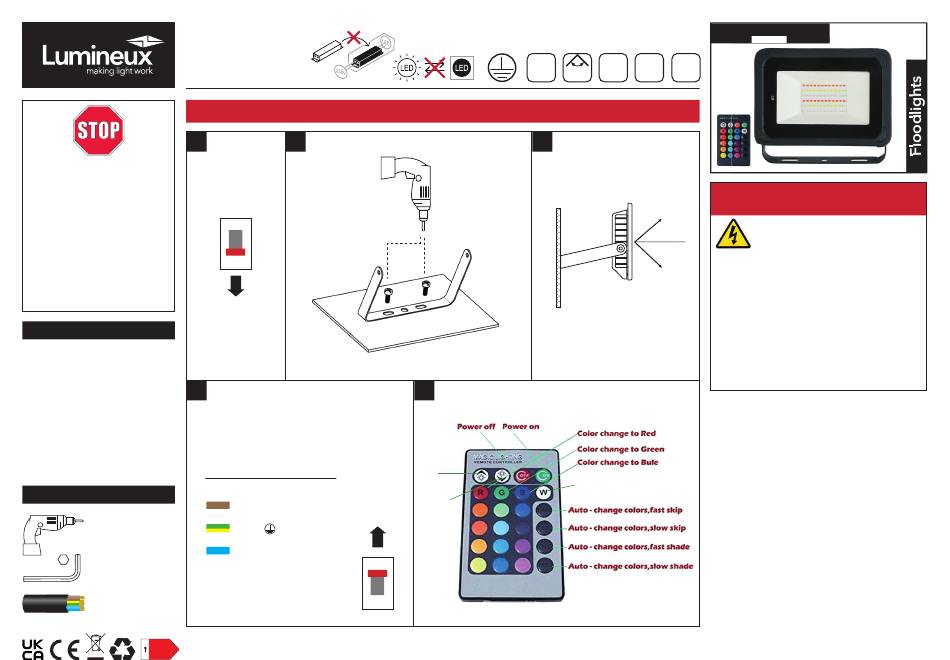

INSTALLATION INSTRUCTIONS
2
on
off
Electrical connection wiring
LIVE (L) = Brown
Earth ( ) = Yellow/Green
NEUTRAL (N) = Blue
on
off
10W, 20W, 30W & 50W
IP65
120º
3
5
Dim
Up
White
Dim
Down
Technical Helpline: +44 (0)1507 328031
Tring Tring
30,000 80 3 YR
CRI
Hours Warranty
PLEASE READ THESE INSTRUCTIONS
BEFORE INSTALLATION.
WARNING: Risk of electric shock! Isolate
45° 45°
the mains power before proceeding.
45° 45°
• Turn off the mains power before performing
inspections, installation, or removal
• Verify that the supply voltage is correct by
comparing it with the luminaire label information
• It is the installers responsibility to ensure installation
is suitable for the total load of the luminaire(s). The
supply cable, fuses/circuit brakers must be correctly
rated for the electrical load and considering for any
transient inrush currents that may occur
• Do not perform insulation strength or resistance
tests on installed luminarie(s) connected
1. Disconnect mains supply
2. Detach adjustable bracket from the light
fi tting and fi x to the desired surface.
Re-attach the bracket
3. Adjust the angle to suit and tighten bracket
screws. IMPORTANT: make sure to not
exceed the angle shown
4. Connect wires as shown and then reconnect
mains supply and test
5. Remote control operation
www.lumineux.co.uk
