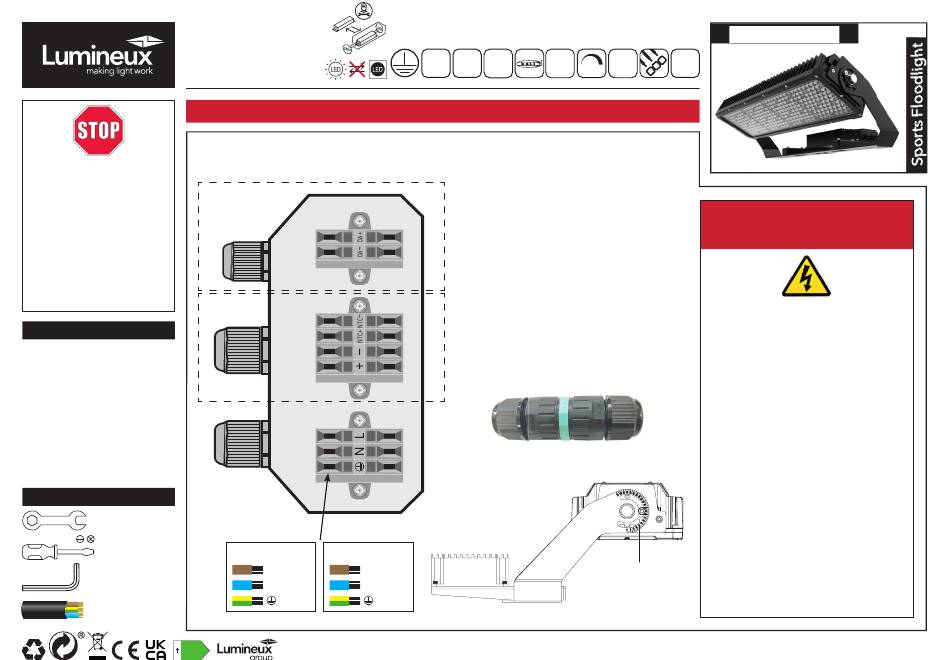

Lumineux Carsington Plus Installation Instructions

Carsington Plus
600W Sports
Floodlight
Installation must be conducted by a qualifi ed electrician.
We would recommend using an appropriate safety chain. (Not supplied). See reverse for product weight.

READ THESE INSTRUCTIONS

THOROUGHLY BEFORE
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.

IMPORTANT:

This product must be installed
by a qualifi ed electrician or
competent person, and in
accordance with current building
and IET wiring regulations.

BOX CONTENTS

This lighting fi xture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the
luminaire to confi rm there is no
damage. DO NOT INSTALL if any
damage has occurred to the fi xture
or any of its components.
• Light Fitting
• Instruction Manual
• Control Gear
• Inline Connector

TOOLS REQUIRED

• 36mm Spanner
• Screwdriver
• Hex key
6mm & 8mm
• Cable
A
B B
G
INSTALLATION INSTRUCTIONS
DC
AC
230V Install 415V Install
L L
Live Phase 1
N N
Neutral Phase 2
Earth Earth
Manby Park, Manby, Louth, Lincolnshire, LN11 8UT
Lumineux Group is a trading name of B&T Associates Ltd.
140
70
IP66 IK09
CRI LMCW
Dimmable*
Loosen the 4 cover screws and remove cover.
DALI
For DALI install using the allocated
terminal block with H05RN-F 2 core
1.0mm² to the desired length of your install.
NTC
No connection.
REMOTE DRIVER BOX
For installing driver box remotely, use inline
connector supplied and H07RN-F 2 core
1.5mm² to the length of your desired install.
Inline connector (supplied)
Angle of fi tting can be
altered by loosening the
hex bolt and rotating the
lamp to desired angle.
Technical Helpline:
+44 (0)1507 328031
600W
Carsington Plus Carsington Plus
>54,000 5 YR
Warranty
Hours
PLEASE READ THESE INSTRUCTIONS
BEFORE INSTALLATION.
WARNING
Risk of electric shock! Isolate the mains
power before proceeding.
• Turn off the mains power before
performing inspections, installation,
or removal
• Verify that the supply voltage is
correct by comparing it with the
luminaire label information
• It is the installers responsibility to
ensure installation is suitable for
the total load of the luminaire(s).
The supply cable, fuses/circuit
brakers must be correctly rated for
the electrical load and considering
for any transient inrush currents that
may occur
• Do not perform insulation strength
or resistance tests on installed
luminaire(s) connected
www.lumineux.co.uk
