Counterweight Kit

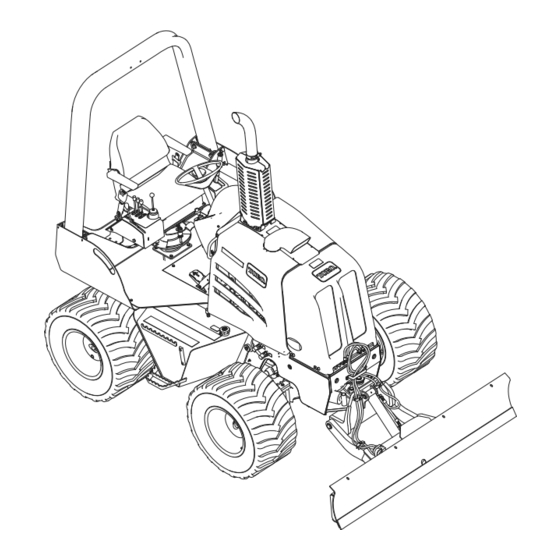

RT600 Traction Unit
Model No. 25439
Model No. 25439E
Safety
This product contains a chemical or chemicals known to the State of California to
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
No parts required
Mounting frame
Bolt (1-1/4 x 3-1/2 inch)
Washer (1-1/4 inch)
Counterweight
Rod
Washer (5/8 inch)
Locknut (5/8 inch)
Preparing the Machine
1. Move the machine to a level surface.
2. Set the parking brake and lower the attachments to
the ground
3. Shut off the machine and remove the key.
4. If a front-mounted attachment such as the backhoe
or cable carrier is installed on the machine, remove
the attachment; refer to the Operator's Manual for the
attachment.
© 2013—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
WARNING
CALIFORNIA
Proposition 65 Warning
cause cancer, birth defects, or reproductive harm.
Qty.
–
1
4
4
13
1
2
2
Register at www.Toro.com.
Prepare the machine.
Install the mounting frame.
Install the counterweights.
Installing the Mounting Frame
Note: Your lifting equipment must have a lift capacity of
136 kg (300 lb).
Note: Remove all counterweight kit hardware and weights
from the mounting frame prior to installation of the
counterweight kit. Each counterweight weighs approximately
29.9 kg (66 lb).
1. Remove the 2 locknuts (5/8 inch), 2 washers (5/8
inch), and rod that secure the counterweights to the
mounting frame.
Note: Retain the locknuts, washers, and rod for
installation in step 2 of Installing the Counterweights.
Original Instructions (EN)
All Rights Reserved *3377-972* B
Printed in the USA
Form No. 3377-972 Rev B
Installation Instructions
Use
Advertisement
Related Manuals for Toro RT600
Summary of Contents for Toro RT600
- Page 1 Form No. 3377-972 Rev B Counterweight Kit RT600 Traction Unit Model No. 25439 Model No. 25439E Installation Instructions Safety WARNING CALIFORNIA Proposition 65 Warning This product contains a chemical or chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
- Page 2 2. Using the lifting equipment, remove the counterweights 5. Install the bolts (1-1/4 x 3-1/2 inch) and washers from the mounting frame. (1-1/4) that fasten the mounting frame to the machine (Figure 2), and hand tighten all of the bolts. 3.
- Page 3 Installing the Counterweights 2. Secure the counterweight(s) to the mounting frame with the rod, washers, and locknuts that you removed 1. Use the lifting equipment to lift and install one or more in step 1 of Preparing the Machine; refer to Figure 4. of the counterweights onto the mounting frame;...
