Installation and Operating Instructions
Dimensions:
Operating voltage:
Power consumption of control unit:
Switching
capacity:
Degree of protection:
Level sensor:
Ambient temperature:
Air humidity:
Memory card:
Internet port:
Filter control unit with LAN port
Part no. 310.000.0590
Technical data
(depends on operating mode)
Pump:
Heater:
dosing system:
Auxiliary output:
12V Safety extra-low voltage (SELV)
Compatible pumps
230V single-phase pump
(rated current up to 8A)
Speck ECO-Touch-Pro pump
Speck Badu-90-ECO-VS pump
Speck Badu-90-ECO-Motion pump
Pentair IntelliFlo pump
Pentair SuperFlo pump
Zodiac FloPro VS pump
UWE PMM pump
220mm x 285mm x 85mm
1/N/PE 230V 50Hz
approx.5VA
max. 8A / 1,1 kW (AC3)
max. 3A / 0,4 kW (AC3)
max. 3A / 0,4 kW (AC3)
max. 3A / 0,4 kW (AC3)
IP 40
0-40°C
0-95% non-condensing
Micro SD
LAN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OSF POOLcontrol-35-smart
Summary of Contents for OSF POOLcontrol-35-smart
-
Page 1: Technical Data

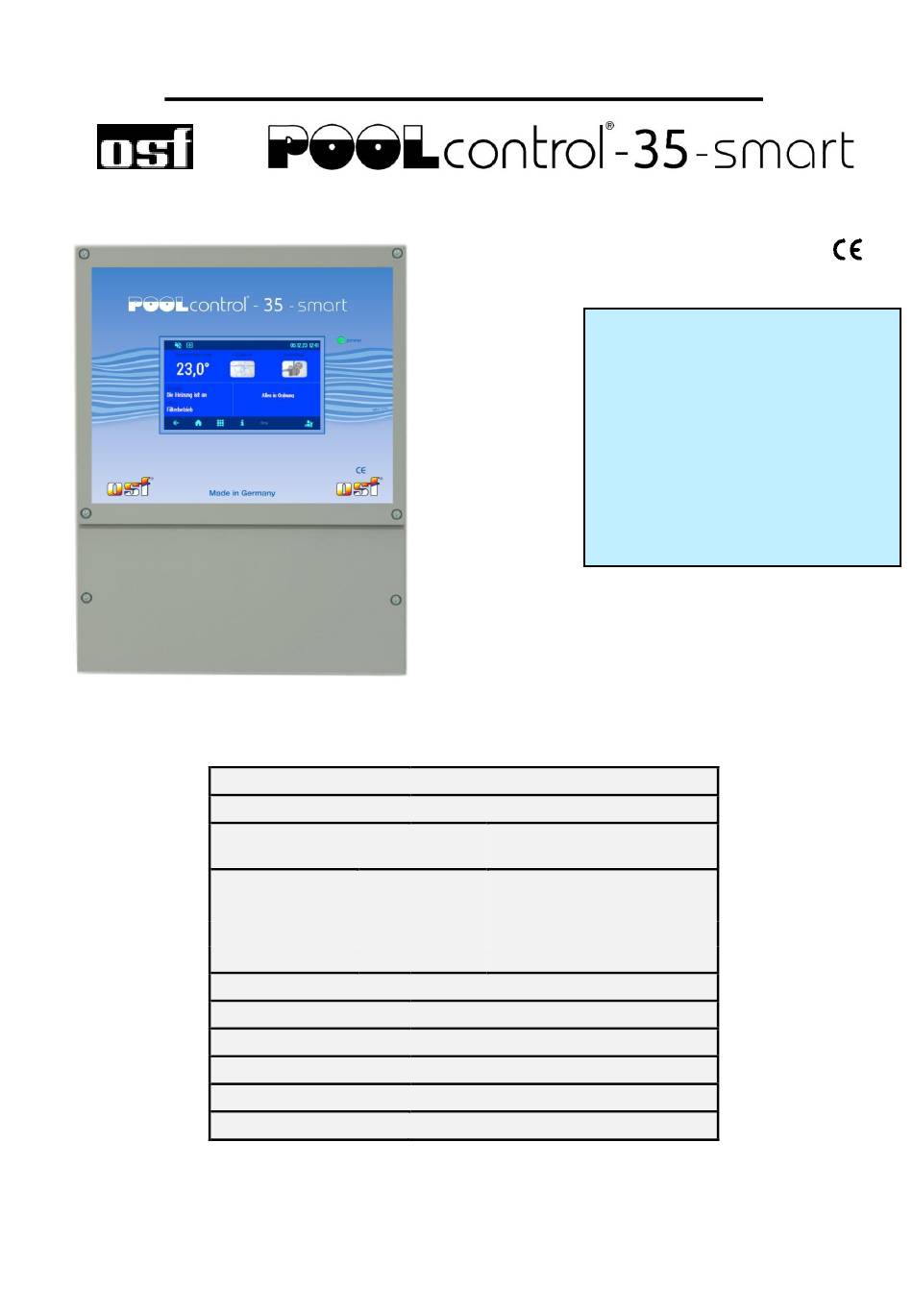

Installation and Operating Instructions Filter control unit with LAN port Part no. 310.000.0590 Compatible pumps 230V single-phase pump (rated current up to 8A) Speck ECO-Touch-Pro pump Speck Badu-90-ECO-VS pump Speck Badu-90-ECO-Motion pump Pentair IntelliFlo pump Pentair SuperFlo pump Zodiac FloPro VS pump UWE PMM pump Technical data Dimensions:... -
Page 2: Table Of Contents
Operating Manual POOL-Control-35-smart Page 2 (40) Contents Technical data ........................1 Contents ..........................2 Function ..........................5 Installation ........................... 5 Fuses ............................ 5 Electrical connection ......................6 Low-voltage lines ............................... 6 Connecting the power supply for a 230V single-phase pump (without speed control) ........6 Connecting the power supply for a Speck ECO-Touch-Pro pump.............. - Page 3 Operating Manual POOL-Control-35-smart Page 3 (40) Solenoid valve for topping up the water level ....................13 Display ..........................14 Parental control ............................... 14 Professional mode (Service engineer level) ....................14 Switching on the PC-35-smart......................... 15 Switching off the PC-35-smart......................... 15 Operating mode selection ..........................
- Page 4 Configuration of the water detector ......................27 Internet connection ......................28 Testing the internet connection ........................28 Using the osf communication server ....................... 28 Communication server for pool owners ................. 29 Registering a new device with the server ....................30 Communication server for pool installers ..............31 Registering a new control unit with the server ..................31...
-
Page 5: Function

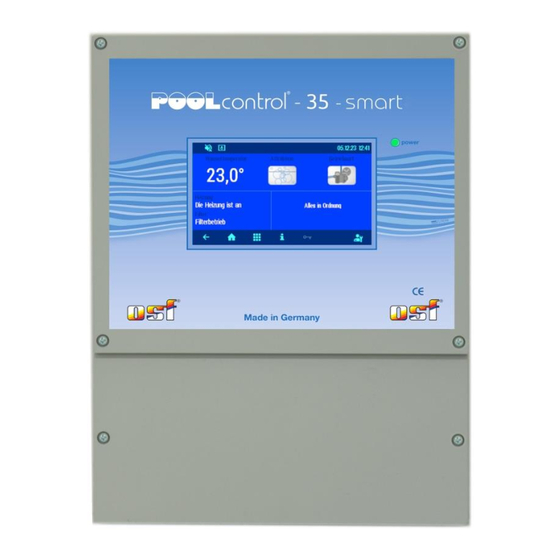

Operating Manual POOL-Control-35-smart Page 5 (40) Function PC-35-smart control unit lets you time the on/off cycles of a filtration pump based on a user- programmable daily or weekly schedule. A 230V single-phase pump or a variable-speed pump may be used as the filtration pump (see wiring diagrams). -
Page 6: Electrical Connection
Operating Manual POOL-Control-35-smart Page 6 (40) Electrical connection The control unit must be mounted such that it is protected from moisture in accordance with its degree of protection. The ambient temperature must lie between 0° C and + 40° C and should vary as little as possible. -
Page 7: Connecting The Power Supply For A Speck Eco-Vs Pump
Operating Manual POOL-Control-35-smart Page 7 (40) Connecting the power supply for a Speck ECO-VS pump A Speck ECO-VS pump can be connected directly to the PC-35- smart unit. Connect the speed controller to terminals 20-25. The mains power supply to the pump must be provided separately, not via the PC-35-smart. -
Page 8: Connecting The Power Supply For A Pentair Intelliflo Pump
Operating Manual POOL-Control-35-smart Page 8 (40) Connecting the power supply for a Pentair IntelliFlo pump An IntelliFlo pump can be controlled by the PC-35-smart using the Pentair Intellicom controller. The mains power supply to the pump must be provided separately, not via the PC-35-smart. -
Page 9: Connecting The Power Supply For A Uwe Pmm Pump
Operating Manual POOL-Control-35-smart Page 9 (40) Connecting the power supply for a UWE PMM pump A UWE PMM pump can be controlled by the PC-35-smart. The mains power supply to the pump must be provided separately, not via the PC-35-smart. The option Filter pump - type: variable pump must be selected for the filter pump in the configuration menu. -
Page 10: Connecting The Slide Valves For Backwashing
Operating Manual POOL-Control-35-smart Page 10 (40) Connecting the slide valves for backwashing A 230V slide valve for the backwash function can be connected to terminals U5 and N. A 230V slide valve for the rinsing function can be connected to terminals U6 and N. Both valves are controlled by the internal backwash controller. -
Page 11: Connection Of A Button For The Auxiliary Output
Operating Manual POOL-Control-35-smart Page 11 (40) Connection of a button for the auxiliary output A button (e.g. osf EL button) can be connected to the auxiliary input, terminals 30 and 31, to switch the auxiliary output. The terminals carry a safety extra low voltage. -
Page 12: Connecting A Leak Monitoring / Drain-Monitoring Switch
Operating Manual POOL-Control-35-smart Page 12 (40) Connecting a leak monitoring / drain-monitoring switch A water sensor WD-1 can be connected to terminals 36 and 37 for leak monitoring (flooding notification). Alternatively, a flow sensor for monitoring the water flow in the drain and triggering an alarm in the event of a fault can be connected between terminals 36 and 37 instead of the factory- fitted link. -
Page 13: Level Control For Pools With Skimmer
Operating manual Pool-Control-35-smart Page: 13 (40) Level control for pools with skimmer mini float switch can be used as the sensor for skimmer pools. The float switch lead can be extended with a cable (2x0.75mm²) of up to 30m in length. Please note that the connection must be absolutely watertight. -
Page 14: Display
Operating manual Pool-Control-35-smart Page: 14 (40) Display Operating light Status bar green = ON red = OFF Control bar Network Water supply Heating Filter pump Time / date connection Operating mode Back, User status Cancel without (Normal / Professional / saving Child lock) Home... -
Page 15: Switching On The Pc-35-Smart
Operating manual Pool-Control-35-smart Page: 15 (40) Switching on the PC-35-smart When the PC-35-smart is off, the operating light is red. To switch on the unit, touch any point on the screen for at least 3 seconds. Switching off the PC-35-smart The button for switching off the control unit is located on the “Operating mode”... -
Page 16: Settings For Eco Mode
Operating manual Pool-Control-35-smart Page: 16 (40) Settings for ECO mode Tap the “Menu” button Press the “eco mode settings” button Temperature reduction in eco mode Set the desired water temperature using the on- screen keyboard. Then press the “OK” button to save the temperature. -
Page 17: Programming The Filtration Timer
Operating manual Pool-Control-35-smart Page: 17 (40) Programming the filtration timer Press the “Total filter times” button. Press the “add new time” button. By pressing the corresponding buttons, the day of the week, hour and minute are entered for the switch-on time and the switch-off time. -
Page 18: Setting The Eco Filter Times
Operating manual Pool-Control-35-smart Page: 18 (40) All the programmed switching times are displayed in the table Setting the ECO filter times Tap the “Menu” button Press the “auto filter settings” button Timer for backwashing Water temperature Timer for eco mode Timer for filtration Automatic –... -
Page 19: Backwashing With Slide Valves
Operating manual Pool-Control-35-smart Page: 19 (40) Backwashing with slide valves Tap the “Menu” button Press the “auto filter settings” button Timer for backwashing Water temperature Timer for eco mode Timer for filtration Auto - OFF Editing Backwash times Press the “Backwash time” button By pressing this button you can switch between the operating modes AUTO... -
Page 20: Party Mode Settings
Operating manual Pool-Control-35-smart Page: 20 (40) Party mode settings In party mode, the swimming pool system is switched on even if the timer has switched off. This means that the filter system can be temporarily switched to continuous operation without changing the programming of the filter timer. -
Page 21: Pump Locked" Error Message
System information page The system information page displays data that is particularly important for network operation. Press the “Back” button IP address DEVICE ID ID number for the osf communication server Software version of each circuit board... -
Page 22: Service Settings
Operating manual Pool-Control-35-smart Page: 22 (40) Service settings By pressing this button in the main menu you switch to the service area. The settings here may only be changed by a trained specialist. Alarm settings In this menu you can set which fault indicators are issued as an acoustic alarm, via email or using the floating relay contact. -
Page 23: Temperature Increase Solar Heating
Operating manual Pool-Control-35-smart Page: 23 (40) the heat exchanger. Temperature increase solar heating The solar operation temperature increase determines how far the swimming pool water is heated above the set value when the solar heating is in operation in order to store energy for times without solar radiation. -
Page 24: Time Monitoring For Refilling
Operating manual Pool-Control-35-smart Page: 24 (40) Time monitoring for refilling In this line you can set whether the automatic top-up is stopped after an adjustable maximum duration for safety reasons in order to avoid overfilling if the water level sensor malfunctions. Time limit for refilling In this line you can set the maximum duration of the water top-up that elapses until the time monitoring responds. -
Page 25: Configuration Of The Control In Professional Mode
Operating manual Pool-Control-35-smart Page: 25 (40) Configuration of the control in professional mode When commissioning, the control must be configured for the respective swimming pool to ensure proper functionality. To protect the configuration from accidental adjustment, these settings can only be operated in professional mode. -
Page 26: Configuration Of Backwashing
Operating manual Pool-Control-35-smart Page: 26 (40) Configuration of backwashing It must be stated here whether a Eurotronik-10 or slide valves are used for backwashing or whether the backwashing is carried out manually. Configuration of level control Here you must specify whether a solenoid valve for water replenishment is connected. -
Page 27: Configuration Of The Air Temperature Sensor
Operating manual Pool-Control-35-smart Page: 27 (40) Configuration of the air temperature sensor Here you can specify whether an air temperature sensor is connected and what it should be used for. Configuration of the water detector Here you can specify whether a water detector is connected and what it should be used for. -
Page 28: Internet Connection
Testing the internet connection The connection of the device to the Internet and to the osf communication servers can be easily checked by calling the osf Device Finder. You can reach the device finder at the following address: https://osfdevice.de/b/finder/index.php... -
Page 29: Communication Server For Pool Owners
Devices.osf.de years. For new installations, however, we recommend the “mypool.osf.de” and “service.osf.de” servers, and “devices2.osf.de” Communication server for pool owners You can access this osf communication server at the address mypool.osf.de You must first register as a new user:... -
Page 30: Registering A New Device With The Server
Once you have personally registered, you can log in and then register your new device in your user profile. Each web-enabled osf control unit has a DEVICE ID (identification number). This DEVICE ID must be entered in the correct column in order to register the device with the communication server. You can find the DEVICE ID of your device displayed on its system information page (see above). -
Page 31: Communication Server For Pool Installers
Once you have personally registered, you can log in and then register your new device in your user profile. Each web-enabled osf control unit has a DEVICE ID (identification number). This DEVICE ID must be entered in the correct column in order to register the device with the communication server. You can find the DEVICE ID of your device displayed on its system information page (see above). - Page 32 Fault indicators are highlighted for each pool individually. To display and operate a specific device via the communication server, simply press the associated button for this device: Customer name Connected to the osf communication server The Paradise- Therme baths contain 4 web-...
-
Page 33: Communication Server With Technical View
Once you have personally registered, you can log in and then register your new device in your user profile. Each web-enabled osf control unit has a DEVICE ID (identification number). This DEVICE ID must be entered in the correct column in order to register the device with the communication server. You can find the DEVICE ID of your device displayed on its system information page (see above). -
Page 34: Changing The Pin (Password)
Operating manual Pool-Control-35-smart Page: 34 (40) Complete the form Enter the DEVICE ID Your device is now displayed in your Device panel and can be operated via the communications server: In order to use the communication server, the option "Internet connection via communication server" must be enabled in the control unit itself (default factory setting): Changing the PIN (password) The PC-35-smart contains 2-level password protection for access via the LAN. -
Page 35: Naming The Unit
Naming the unit Entering an e-mail address In order to be able to identify different control units during online access, each osf device has a facility for assigning a name. The PC-35-smart is able to send any fault indicator messages via e-mail. The control unit must be connected to the Internet for this feature to work. -
Page 36: Update
Operating manual Pool-Control-35-smart Page: 36 (40) Update The PC-35-smart has a software update facility. The PC-35-smart must be connected to the Internet for updating to work. You can perform the update via the WEB interface of the communication server. Checking for updates You can use this function to check whether an update is available for your device. -
Page 37: Interfacing With Building Automation Systems
Operating manual Pool-Control-35-smart Page: 37 (40) Interfacing with building automation systems The Pool Control-35-smart contains an HTTP web server, which is designed to allow the control unit to be operated using any web browser from any web-enabled terminal. The HTML pages generated by this web server can also be accessed by a building automation system and can be interpreted for display on EIB visualization devices. - Page 38 Operating manual Pool-Control-35-smart Page: 38 (40) The most important operating data can also be read out in compact JSON format using the predefined "INFOS.JSN" file. This standardized file format can be processed by many control systems. Example: Description: "device":"PC-35-smart", device name "devnum":"6", firmware serial number "softfw":"28",...
- Page 39 Operating manual Pool-Control-35-smart Page: 39 (40) Variables available for communication with the building management system (as of April 15th, 2024): Name Read/ Format Value range Info Write „####“ „0000“ - 0003 user-PIN Login „9999“ 0013 Status text heating ASCII text 0015 Status text filtration ASCII text...
-
Page 40: Operating Manual Pool-Control-35-Smart
Relax and enjoy your swimming pool! Further information can be found on the Internet at the following address: https://osf.de/download/documents/documents.php?device=PC-35 Hansjürgen Meier Elektrotechnik und Elektronik GmbH & Co KG Eichendorffstraße 6 D-32339 Espelkamp E-Mail: info@osf.de Internet: www.osf.de Subject to changes 04/2024...
