Installation and Operating Instructions
Dimensions:
Operating voltage:
Power consumption of control unit:
Switching capacity:
Degree of protection:
Air humidity:
Ambient temperature:

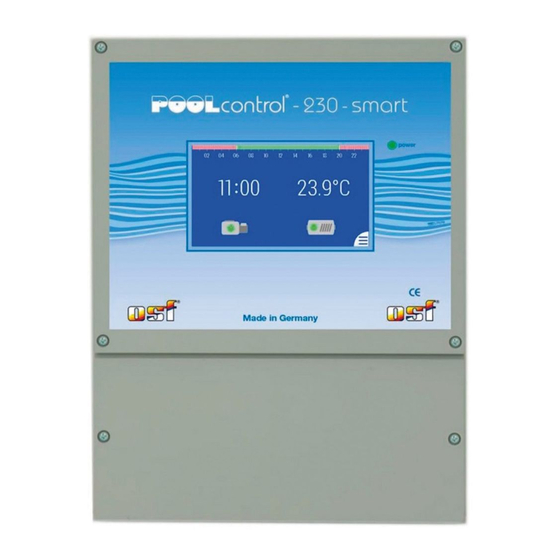

PC-230-smart
with Internet facility
Part no. 310.000.1230
Technical data
220mm x 285mm x 85mm
Pump:
Heating:
230V 50Hz
1,5VA approx.
max. 1,0 kW (AC3)
max.0,4kW (AC3)
IP 40
0-95% non condensing
0-40°C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OSF PC-230-smart
Summary of Contents for OSF PC-230-smart
-
Page 1: Technical Data

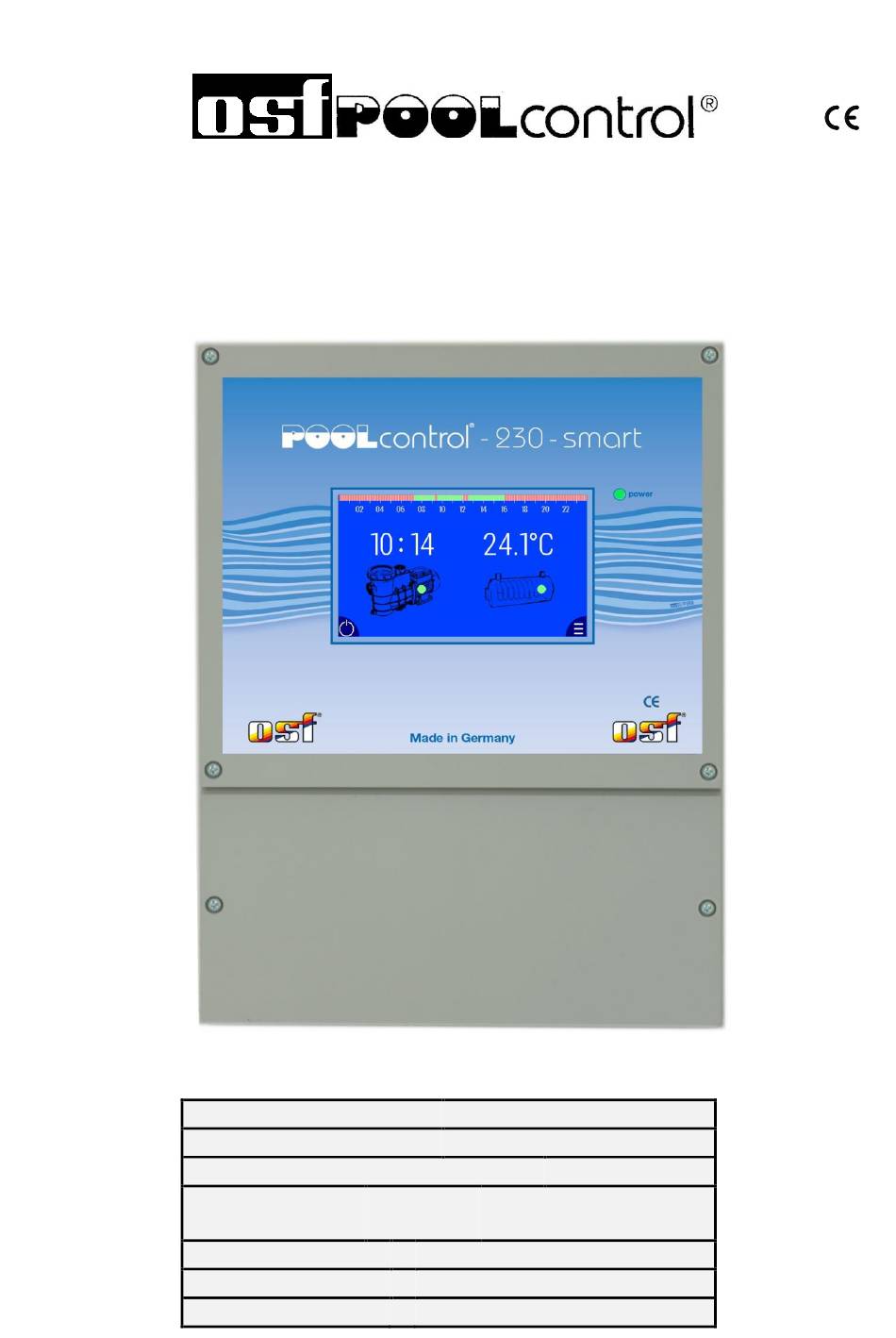

Installation and Operating Instructions PC-230-smart with Internet facility Part no. 310.000.1230 Technical data Dimensions: 220mm x 285mm x 85mm Operating voltage: 230V 50Hz Power consumption of control unit: 1,5VA approx. Switching capacity: Pump: max. 1,0 kW (AC3) Heating: max.0,4kW (AC3) -
Page 2: Table Of Contents
Resistance values of the temperature sensor ..............5 Operation ............................6 Touchscreen..........................6 Switching the PC-230-smart on and off ................. 6 Changing the operating mode of the filtration pump............6 Changing the heating operating mode .................. 7 Setting the required temperature ................... 7 Setting the time ........................ -
Page 3: Function
Installation and Operating Instructions PC-230-smart Page 3 (10) Function PC-230-smart filter control unit can be used to control the on/off times of a 230V AC single-phase filtration. The PC-230-smart features the latest touchscreen technology, which can be used to configure the following functions: a) Switching the system on and off. -
Page 4: Electrical Connection
Closing the contact between terminals 11 and 12 automatically activates the filtration pump, the temperature regulation and the dosing equipment. On the terminals 21 and 22 there is a floating contact for dosing systems. The contact is closed, if the PC-230-smart is in filtration. -
Page 5: Internet Connection
Installation and Operating Instructions PC-230-smart Page 5 (10) Internet connection Information about the network connection, the connection to the Internet and the operation of the integrated web server can be found on the Internet at the following address: https://osf.de/download/documents/documents.php?device=PC-230-smart Temperature control system The electronic temperature control system and the temperature sensor have been calibrated to work correctly together. -
Page 6: Operation
Operating mode: green = ON grey = OFF = Fault Switching the PC-230-smart on and off Press the button to switch on the unit. Press the button to switch off the unit. Changing the operating mode of the filtration pump The "Filtration pump"... -
Page 7: Changing The Heating Operating Mode
Installation and Operating Instructions PC-230-smart Page 7 (10) Changing the heating operating mode The "Heating" button can be used to select the operating mode ON/ AUTO/ OFF. runs permanently as long as the filter pump is running AUTO runs under temperature control ... -
Page 8: Changing The Settings In The Main Menu
Installation and Operating Instructions PC-230-smart Page 8 (10) Changing the settings in the Main menu Press the button to open the "Main menu". This menu can be used to obtain the following information and/or to make relevant settings: - System info... -
Page 9: Change The Network Settings
Installation and Operating Instructions PC-230-smart Page 9 (10) In the “Time settings” menu, the following settings can be altered by pressing the relevant button: - Automatic Internet time - Internet time zone - Automatic summertime/wintertime changeover. selected deselected Press the button to return to the "Main menu”. -
Page 10: Pc-230-Smart Combined With Nr-12-Trs-2 And Eurotronik-10
Installation and Operating Instructions PC-230-smart Page 10 (10) PC-230-smart combined with NR-12-TRS-2 and EUROTRONIK-10 Water level controller for With Internet access Backwash controller overflow pools with spillway EUROTRONIK - 10 Subject to changes! April 21...
