NRS Healthcare NUVO L70294 User Instructions

L70294
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in
a safe place for future reference.
1. INTENDED USE
To assist those who have difficulty in lowering onto, or rising from a standard toilet. They can also be used
in conjunction with a raised toilet seat. An optional floor fixing kit is also available (L70324).
2. SAFETY
WARNING: The maximum user weight must not be
more than 254 kg (40 st).
DO NOT: Attempt to stand or climb on the product.
MAKE SURE: All legs are set at equal height to
avoid rocking.
3. UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
3.1 Contents:
1. Frame Assembly x 1
2. Leg Extensions with Ferrules x 4
3. E-clips x 4
4. ASSEMBLY
This product is supplied fully assembled.
5. INSTALLATION
Adjust the height for the toilet and user before
installation.
USER INSTRUCTIONS

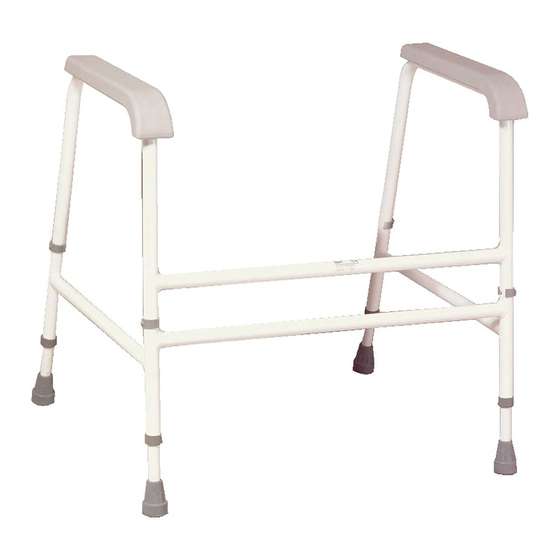

NUVO EXTRA WIDE TOILET FRAME
NUVO Extra Wide Toilet Frame
Maximum User Weight
5.1 Adjust the Height
1. Remove the 4 x leg extension E-clips.
2. Slide the leg extensions to the required height,
align the holes and replace the E-clips.
3. Place the toilet frame around the toilet.
Note: Make sure the seat and toilet frame are fully
secure before use.
5.2 Fitting the Optional Floor Fixing Kit L70324
Please refer to the user instructions provided with
the optional floor fixing kit.
6. MAINTENANCE
Check that all fixing clips are inserted correctly and
that there is no excessive movement.
If a floor fixing kit has been fitted, check the fixing
screws are secure.
Inspect the product regularly for signs of wear or
damage, pay particular attention to the condition of
the ferrules.
Any suspected faults or damage should immediately
be reported to the supplier and the product taken out
of use.
7. CLEANING INSTRUCTIONS
Please check the suitability of the cleaning products
before use. Do not use abrasive cleaners or cloths
as these could permanently damage the surface and
invalidate any warranty.
Regularly clean with a non-abrasive cleaner.
To disinfect, wipe with a dilute bleach solution, and
rinse thoroughly with fresh water.
This product is suitable for thermal decontamination
and can be steam cleaned or autoclaved on cleaning
cycles up to 70°C.
Allow product to fully dry prior to use/storage.
1
40st
254kg
