Summary of Contents for OBO Bettermann UDHOME2

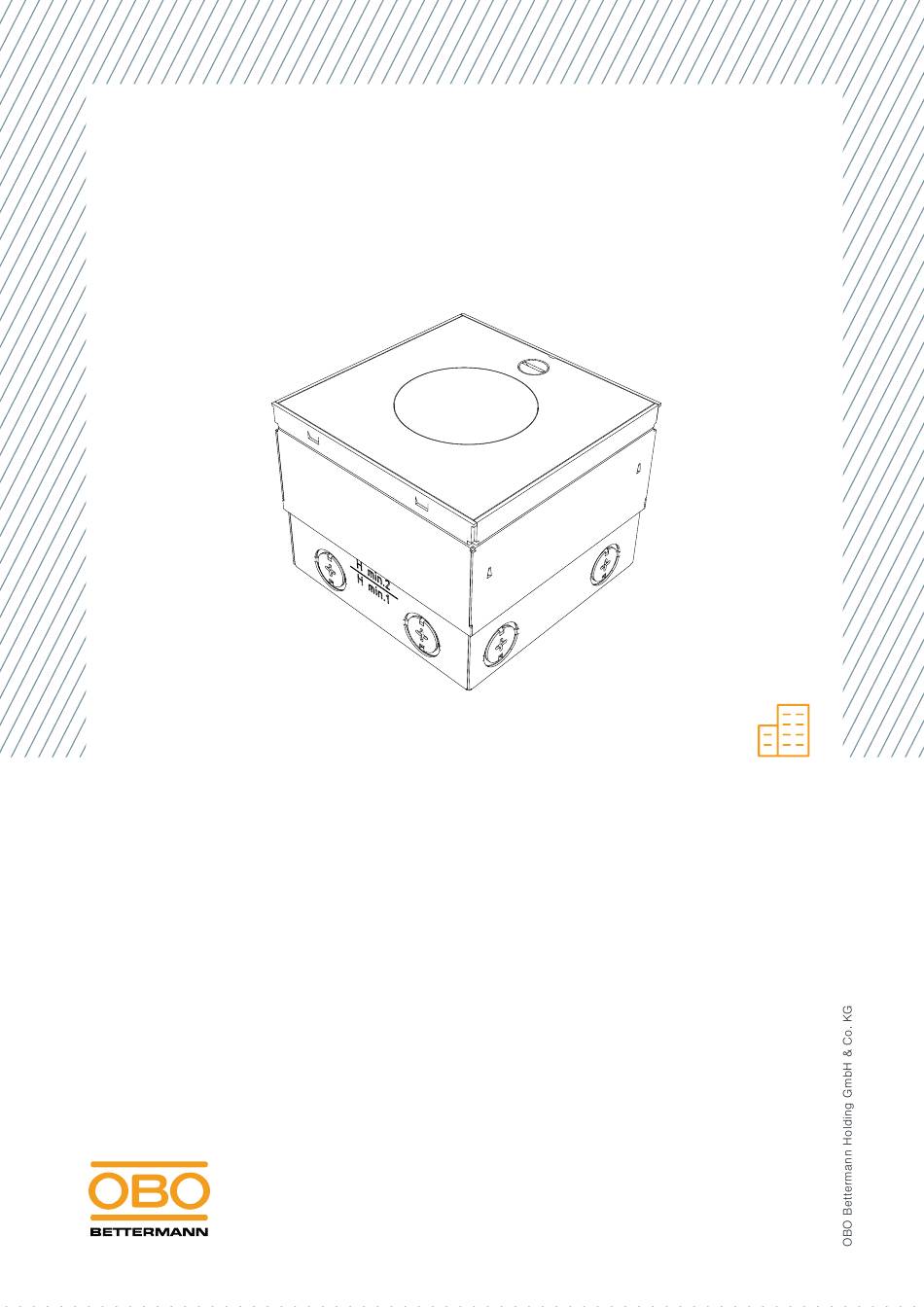

- Page 1 Mounting instructions UDHOME2 floor socket with tube body...
- Page 2 UDHOME2 floor socket Mounting instructions © 2022 OBO Bettermann Holding GmbH & Co. KG...
-
Page 3: Table Of Contents
15 Disposing of the floor socket ....28 16 Technical data ......29 3 | EN Mounting instructions, UDHOME2 with tube body... - Page 4 Table of contents 4 | EN OBO Bettermann...
-
Page 5: About These Instructions
– Part 2-2: Particular requirements for cable trunking systems and cable ducting systems intended for mounting underfloor, flushfloor or onfloor – DIN EN ISO 9001:2008 – DIN EN ISO 14001:2008 5 | EN Mounting instructions, UDHOME2 with tube body... -
Page 6: Correct Use
List of personal protective equipment to be used: Use hand protection Wear safety shoes Necessary tools List of required tools: – Pozidrive 2 – Slotted screwdriver (max. 6 mm) – Philips screwdriver – Open-end spanner – Silicone cartridge 6 | EN OBO Bettermann... -
Page 7: Product Overview
10 mm up to 60 mm to the top edge of the finished floor using the height extension. The floor socket is equipped with a double socket. Up to two data sock- ets can be installed using an optionally available data technology sup- 7 | EN Mounting instructions, UDHOME2 with tube body... -
Page 8: Accessories
Components in the floor cross-section (floor structure/height conditions may deviate depending on the floor planning): – Housing of the floor socket – Permanently elastic joint seal – Floor covering – Separating layer – Screed (or system floor) – Concrete floor 8 | EN OBO Bettermann... -
Page 9: Preparations For Mounting
Abb. 3: Screwing on the height-adjustment feet 1. Screw the height-adjustment feet into the height expansion 2. Screw the locking nuts to the height-adjustment feet 9 | EN Mounting instructions, UDHOME2 with tube body... - Page 10 4. Adjust the height of the height expansion to the planned top edge of the screed. In so doing, include the height of the floor socket 5. Secure the height expansion with the locking nuts Abb. 5: Screwing on the height expansion 10 | EN OBO Bettermann...
-
Page 11: Mounting The Floor Socket
2. Slacken the fastening screws slightly and remove the socket 3. Place the socket to one side and keep it safe. 11 | EN Mounting instructions, UDHOME2 with tube body... - Page 12 4. Draw the drill holes on the concrete floor and pre-drill them. M 20 M 25 Abb. 8: Empty pipe entry 5. If required, lever out the pre-marked empty pipe entries with a suitable tool (e.g. slotted screwdriver). 12 | EN OBO Bettermann...
- Page 13 Adjusting the height of the floor socket 7. Adjust the height of the housing to the planned top edge of the screed. In doing so, ensure that the minimum installation depth is not 13 | EN Mounting instructions, UDHOME2 with tube body...
-
Page 14: Laying The Screed
Before screed laying, protect the floor socket with the mounting cover. Note! Before screed work, apply a suitable separating layer to the housing of the floor socket, in order to reduce noise transmission and to avoid screed adhesion to the housing. 14 | EN OBO Bettermann... - Page 15 Laying the screed Abb. 12: Applying the separation layer 1. Close the cover plate 2. Attach the mounting protection cover 3. Apply the separation layer to the housing Abb. 13: Laying the screed 15 | EN Mounting instructions, UDHOME2 with tube body...
-
Page 16: Applying The Floor Covering And Adjusting The Height
An expanding floor covering without a sufficient expansion joint leads to product damage! Work the floor covering up to the floor socket housing with no tension. To achieve this, fill a sufficient expansion joint with per- manently elastic joint material. 16 | EN OBO Bettermann... - Page 17 Risk of damage through missing plugs! ATTENTION Missing plugs can allow moisture and impurities to enter the height-ad- justment sleeves, leading to product damage! Insert the plugs into the 4 height-adjustment sleeves. 17 | EN Mounting instructions, UDHOME2 with tube body...
- Page 18 (e.g. by widespread masking). Should the components come into contact with caustic cleaning agents, then they and the seals should be cleaned with clear water. 18 | EN OBO Bettermann...
-
Page 19: Performing The Electrical Installation
Risk of damage through incorrect mounting! ATTENTION Improper mounting can lead to product damage! Strip the outer jacket cables as far as possible, in order to guarantee the correct installation of the sockets. 19 | EN Mounting instructions, UDHOME2 with tube body... - Page 20 Performing the electrical installation Abb. 17: Stripping the external jacket Abb. 18: Connecting the socket 2. Connect the socket to the connection cable. 20 | EN OBO Bettermann...
- Page 21 4. Push the socket into the housing up to the stop. Note! Make the cable into a loop to simplify the mounting of the mounting sup- port. 5. Tighten the fastening screws 21 | EN Mounting instructions, UDHOME2 with tube body...
-
Page 22: Mounting The Data Technology Support
Recreate the protective equipotential bonding on the cover plate. Note! The PE cable may not cover the opening for the tube body. Mounting the data technology support 1. Mount the data connection module in the data technology support according to the manufacturer's information. 22 | EN OBO Bettermann... - Page 23 Mounting the data technology support Abb. 21: Mounting the data technology support 2. Swivel in the data technology support and tighten the screws. 23 | EN Mounting instructions, UDHOME2 with tube body...
-
Page 24: Using The Floor Socket
2. Open the cover plate Risk of damage through insufficient locking! ATTENTION Risk of damage through insufficient locking! Insufficient tube body un- locking can lead to product damage! Lock the tube body correctly after installation. 24 | EN OBO Bettermann... - Page 25 Opening the tube body 3. Snap the tube body cable outlet until it engages 4. Lock the tube body cord outlet with a 45° rotation 5. Open the tube body cover by unscrewing it. 25 | EN Mounting instructions, UDHOME2 with tube body...
- Page 26 Using the floor socket Abb. 24: Insert the connector 6. Run the plug/cable through the tube body and connect it. 26 | EN OBO Bettermann...
-
Page 27: Maintaining The Floor Socket
7. Close the tube body cover Maintaining the floor socket Risk of damage through insufficient floor covering work and care! ATTENTION Insufficient floor covering work and care can lead to product damage! 27 | EN Mounting instructions, UDHOME2 with tube body... -
Page 28: Maintaining The Floor Socket
Destruction-free dismantling of the floor socket is not possible. Disposing of the floor socket Comply with the local waste disposal regulations. – Floor socket: As scrap metal – Packaging: As household waste – Socket: As electrical waste 28 | EN OBO Bettermann... -
Page 29: Technical Data
110 mm Floor care type according to EN 50085-2-2 Material Stainless steel Use temperature range 5–60 °C Insertion openings 8 x M20/M25 Socket type Double VDE socket Tab. 1: Technical data 29 | EN Mounting instructions, UDHOME2 with tube body... - Page 30 OBO Bettermann Holding GmbH & Co. KG P.O. Box 1120 58694 Menden GERMANY Customer Service Germany Tel.: +49 (0)2373 89-1700 Fax: +49 (0)2373 89-1238 E-mail: info@obo.de www.obo-bettermann.com...
