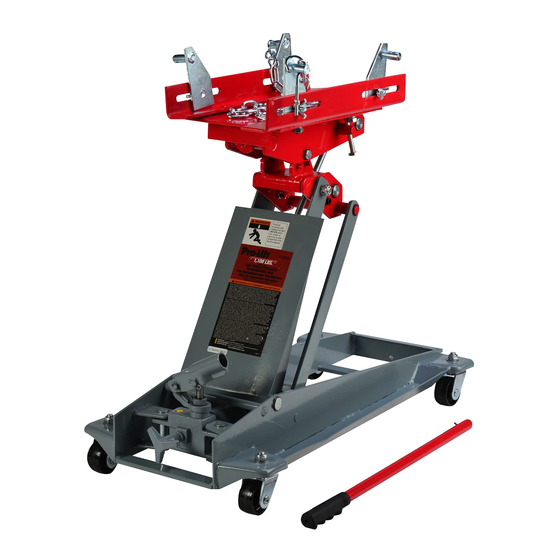

Pro-Lift T-1452 Manual

Hydraulic transmission jacks
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Hydraulic Transmission Jacks
Model
T-1452
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
Model T-1452
U.S. Patent No. 5,946,912
!
WARNING
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a hydraulic
jack. Immediately transfer the load to
an appropriate work station.
Capacity
1,100 Lbs (498.95 kg)
T-1452-M0_092018

Advertisement

Table of Contents
loading

Related Manuals for Pro-Lift T-1452

Summary of Contents for Pro-Lift T-1452

  • Page 1 Model 1,100 Lbs (498.95 kg) T-1452 Model T-1452 U.S. Patent No. 5,946,912 This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

  • Page 2: Safety And General Information

    NEVER use for any purpose other than those uses outlined above! SPECIFICATIONS Model Capacity Min. Height Max. Height Jack Size T-1452 1,100 Lbs 9" 24-3/4" 28-3/4" x 15" Handle Sleeve *Oil Filler Plug (not shown) (*) refer to replacement parts...
  • Page 3 The angles and chains are pre-assembled on the angle bar. Install the angle bar assembly onto the saddle plate. model T-1452 (see Fig 2): Tools required: 16 mm wrench. 1. Remove the M10 nuts & lock washers (A) from the of angle bar.

  • Page 4: Operation

    WARNING • Read, understand, and follow all printed material provided with and on this product before use. • Do not exceed rated capacity. • Use only on hard, level surfaces. • Adequately support the vehicle before starting repairs. • If loaded jack must be moved, make certain that load is secured by appropriate means, is stable, is in the lowest possible position, is moved over a smooth, hard level surface and that the lifting platform is level.

  • Page 5: Maintenance

    MAINTENANCE Important: Use only premium grade hydraulic jack oil. Avoid mixing different types of fluid and NEVER use brake fluid, turbine oil, transmission fluid, motor oil or glycerin. Improper fluid can cause premature failure of the jack and the potential for sudden and immediate loss of load. Premium hydraulic jack oil or equivalent recommended. Adding oil 1.

  • Page 6: Replacement Parts

    SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A. Tel: (888) 332-6419 Fax: (816) 891-6599 Website: www.ProLiftProducts.com; Email: sales@ProLiftProducts.com Replacement Parts Illustration for Model T-1452 Figure 3 - Replacement Parts Illustration for Model T-1452...
  • Page 7 Replacement Parts List for Model T-1452 Item Part No. Description Qty. 4500-01000-000 Hydraulic Unit 5905-00100-100 Filler Plug 5905-00091-000 Oil Seal 4500-90009-K03 Release Valve 4500-01004-000 Pump Cylinder 4500-01301-000 Pump Piston 5403-10038-000 5403-08038-000 4500-01008-000 Handle Sleeve B020-10003-000 Filter 4500-00004-000 Pivot Pin, Hyd Unit...

  • Page 8: One-Year Limited Warranty

    ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, SFA Companies will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy.
