Pro-Lift G2000 Owner's Manual

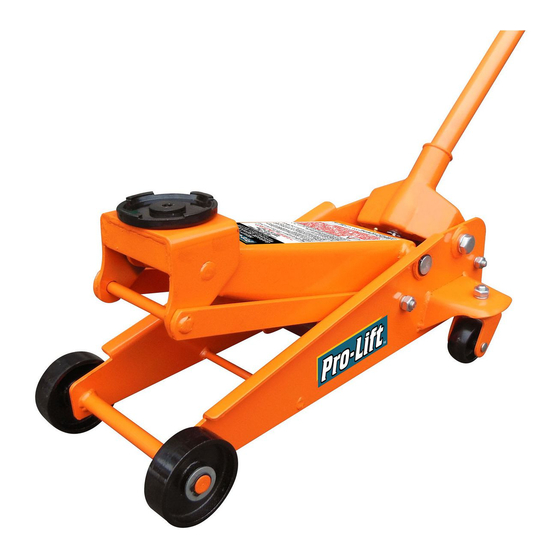

Working load limit 2000kg, garage jack
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

WORKING LOAD LIMIT 2000KG
THIS NEW JACK CONFORMS TO MANDATORY
Safe Instructions
Operation
Specifications
Maintenance
WARNING: THE JACK MUST BE USED ONLY ON HARD
LEVEL SURFACES AND BE FREE TO ROLL DURING
LIFTING AND LOWERING. DO NOT GET UNDER A
VEHICLE THAT IS SUPPORTED BY A TROLLEY JACK -
USE SUPPORT STANDS.
CAUTION:
Carefully Read Instructions and Procedures for Safe Operations
OWNER'S MANUAL
GARAGE JACK
Model No: G2000
ASNZS 2615:2004 STANDARD
Imported by
SHINN FU AUSTRALIA PTY. LTD.
15 Viewtech Place, Rowville 3178 VIC Australia
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-Lift G2000

Summary of Contents for Pro-Lift G2000

  • Page 1 OWNER'S MANUAL WORKING LOAD LIMIT 2000KG GARAGE JACK Model No: G2000 THIS NEW JACK CONFORMS TO MANDATORY ASNZS 2615:2004 STANDARD Safe Instructions Operation Specifications Maintenance WARNING: THE JACK MUST BE USED ONLY ON HARD LEVEL SURFACES AND BE FREE TO ROLL DURING LIFTING AND LOWERING.

  • Page 2: Safe Instructions

    SAFE INSTRUCTIONS INSTRUCTIONS This hydraulic trolley jack is designed to be used with a 100mm diameter head cap, and a handle length of 1070mm length. 1. Before Each Use Visual inspection should be made before each use of the garage service jack for abnormal conditions such as cracked welds, leaks and damaged, loose, or missing parts.

  • Page 3: Specification

    Rear Castor push saddle down fully to reduce piston and ram Front Castor exposure to contamination. SPECIFICATION Model No. : G2000 Working Load Limit: 2,000kg Height Lowered: 135mm Height Raised: 495mm Jack Dimension: 645mm x 345mm x 205mm Handle Length: 1,240mm Volume of Oil: 150cc Net Weight: 31.5kg...

  • Page 4: Maintenance

    MAINTENANCE MAINTAINING OIL LEVEL Important : When adding or replacing oil, Know Your Jack ALWAYS use good grade Hydraulic Jack oil. DO NOT use Hydraulic Brake Fluid, Alcohol, Glycerin, Detergent, Motor Oil or dirty oil. Use of an improper fluid can cause serious internal damage to your jack.
  • Page 5 2,000 KG GARAGE JACK PRODUCT NO.: MANUAL G2000 FACTORY NO.: EXPLODED DRAWING G2000 - 5 -...

  • Page 6: Spare Parts List

    SPARE PARTS LIST PRODUCT NO.: G2000 ITEM PARTCODE DESCRIPTION ITEM PARTCODE DESCRIPTION G489-30020-0001 BASE 1317-00010-031 G489-30024-0000 O-RING 1401-00008-031 WASHER G489-30023-0000 BACK-UP WASHER 1529-20010-031 RETAINER G489-30006-0000 O-RING 1413-00010-204 LOCK WASHER G489-30022-0000 CYLINDER 1103-10016-031 SCREW G489-30025-0000 RESERVOIR G489-20008-0410 RETURNING SPRING G489-30004-0003 U-CUP-RAM...
  • Page 7 SPARE PARTS LIST PRODUCT NO.: G2000 ITEM PARTCODE DESCRIPTION 1401-00018-031 WASHER 1438-00015-204 SNAP RING-E G489-41000-1002 HANDLE ASSY. G489-40002-1001 HANDLE II 1103-06034-031 SCREW G489-30015-0000 O-RING G489-32000-0000 RELEASE VALVE ASSY 1529-40035-031 RETAINER F361-30007-0000 FILTER G489-20003-0410 FRAME TIE ROD FACTORY NO.: G2000 - 7 -...
