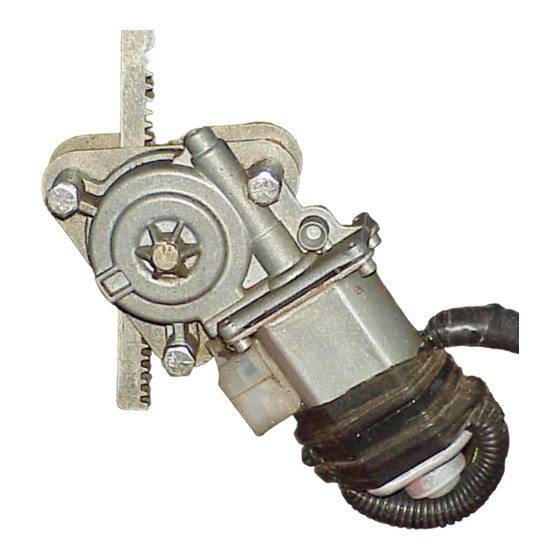

- Page 1 INSTRUCTION SHEET MANUAL PN 77700-08377 BX2820-A / Rev0 01-17 BX2820 – Electric Deflector Estimated assembly time: 60 minutes For BX2816 50" Snowblower and BX2822 55" Snowblower PLEASE READ THIS MANUAL CAREFULLY KEEP READY AT ALL TIMES...
- Page 3 INTRODUCTION This is the Instruction Sheet for the BX2820 Electic deflector option. This option can be used on the 50" Snowblower BX2816 and the 55" Snowblower BX2822. Consult the Operator's Manual of the snowblowers for complete Safety and Operation instructions.
-
Page 4: General Safety Information
GENERAL SAFETY INFORMATION... - Page 5 GENERAL SAFETY INFORMATION (1) Safety stand 2) Secure point for safety stand...
-
Page 6: Safety Information
SAFETY INFORMATION Before Operation 9. Prior to operation, clear work area and mark 1. Park the machine/implement on level ground, all curbs, pipes, etc. that cannot be moved. set the parking brake, lower the implement to the ground, place all control levers in neutral, 10. -
Page 7: Operation
OPERATION – Safety information During Operation Never allow anyone to operate the machine and implement until they have read the manuals completely and are thoroughly familiar with their basic operation. Lack of operating knowledge can lead to accidents. allow anyone ride machine/implement at any time. -
Page 8: Installation
INSTALLATION WARNING: To avoid serious personal injury or death: Read and understand the SAFETY PRECAUTIONS on previous pages before installation and operation. Perform all assembly with unit properly blocked and supported. TORQUE ALL THE BOLTS ACCORDING TO THE TORQUE SPECIFICATION TABLE ENCLOSED AT THE END OF THE INSTRUCTION SHEET. - Page 9 INSTALLATION 5. Figures 3A-3B: Apply a light coat of grease 7. Figure 3B: Apply a light coat of grease inside on the teeth of the rack (item 1) and insert it the hole of the rack (item 1) and place two inside the rack guide (item 2) until the teeth of 7/16"...
- Page 10 10. If only the deflector is used: shown in Figure 4a. Figure 4: Isolate each of the blue and yellow Cut tie wrap excess to about 1/8 "of the terminals (item 3) of the BX2820 harness link. with electrical tape. Figure 4a...
- Page 11 INSTALLATION WARNING avoid serious personal injury or death: Park the machine Figure 5 on level ground, place the transmission in neutral, set the parking brake, disengage the drive system, put all levers to neutral, shut off the engine, remove the ignition key and wait for all movement to stop BEFORE starting installation or adjustment.
- Page 12 INSTALLATION Installation of the Wiring Harness 1. Figure 5: Remove the battery's protective Figure 5 cover (item 1) and open the tractor hood. 2. Figure 6: Locate the wiring harnesses retaining plate (item 1) on the right side of the steering console and loosen the serrated flange nut under the step plate (item 2) without removing it.
- Page 13 INSTALLATION 6. Figure 9: Bring the end of the harness Figure 9 with the Deutsch connector (item 1) to the front of the tractor and attach loosely to the tractor harnesses (item 2) with tie wraps. 7. Figure 9: Insert the harness Deutsch connector in the hose support (item 3).
- Page 14 INSTALLATION 13. Figure 14: Attach the harness (item 1) Figure 14 without tightening along tractor hydraulic hoses with tie wraps (item 2.) 14. Figure 15: Attach the harness (item 1) without tightening along tractor electrical harness (item 2). (The 3 point upper arm was removed to make the figure clearer).
- Page 15 INSTALLATION Connection to the Switchbox 1. Figure 17: Stick the decal (item 11) on the switchbox (item 1) on the left side of the Figure 17 switch. 2. Figure 17: Attach the switchbox (item 1) to the valve lever rod (item 2) with the box clamp (item 3), two 1/4"...
- Page 16 LUBRICATION Use oil or a grease gun and lubricate as follows: DESCRIPTION INTERVAL LUBRICATION REQUIRED 20 hours of operation Apply a light coat of grease on the gear teeth and Rack and at the end of the then do a few cycles of deflection season 20 hours of operation Pivot bushing...
- Page 17 PARTS BX2820 – ELECTRIC DEFLECTOR ESCRIPTION 77700-04132 Nylon rack guide 670155 77700-04130 Rack 670153 77700-04133 Spacer ring 0.364" int. X 0.721" lg PTD 670156 77700-04131 Guide plate 670154 77700-04134 Bushing pivot 3/8" x 19/32" lg PTD 670157 77700-08376 Loom ø1/4" x 40"...
- Page 18 PARTS BX2820 – ELECTRIC DEFLECTOR 0 – DÉFLECTEUR ÉLECTRIQUE [16]...
- Page 19 TORQUE SPECIFICATION TABLE ENERAL SPECIFICATION TABLE SE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN Note:These values apply to fasteners as received from supplier dry, or when lubricated with normal engine oil. They do not apply if special graphited or moly sidulphide greases or other extreme pressure lubricants are used. These values apply to dry conditions;...
- Page 20 Printed in Canada...
