Summary of Contents for Extremis AMAi HiLo bench

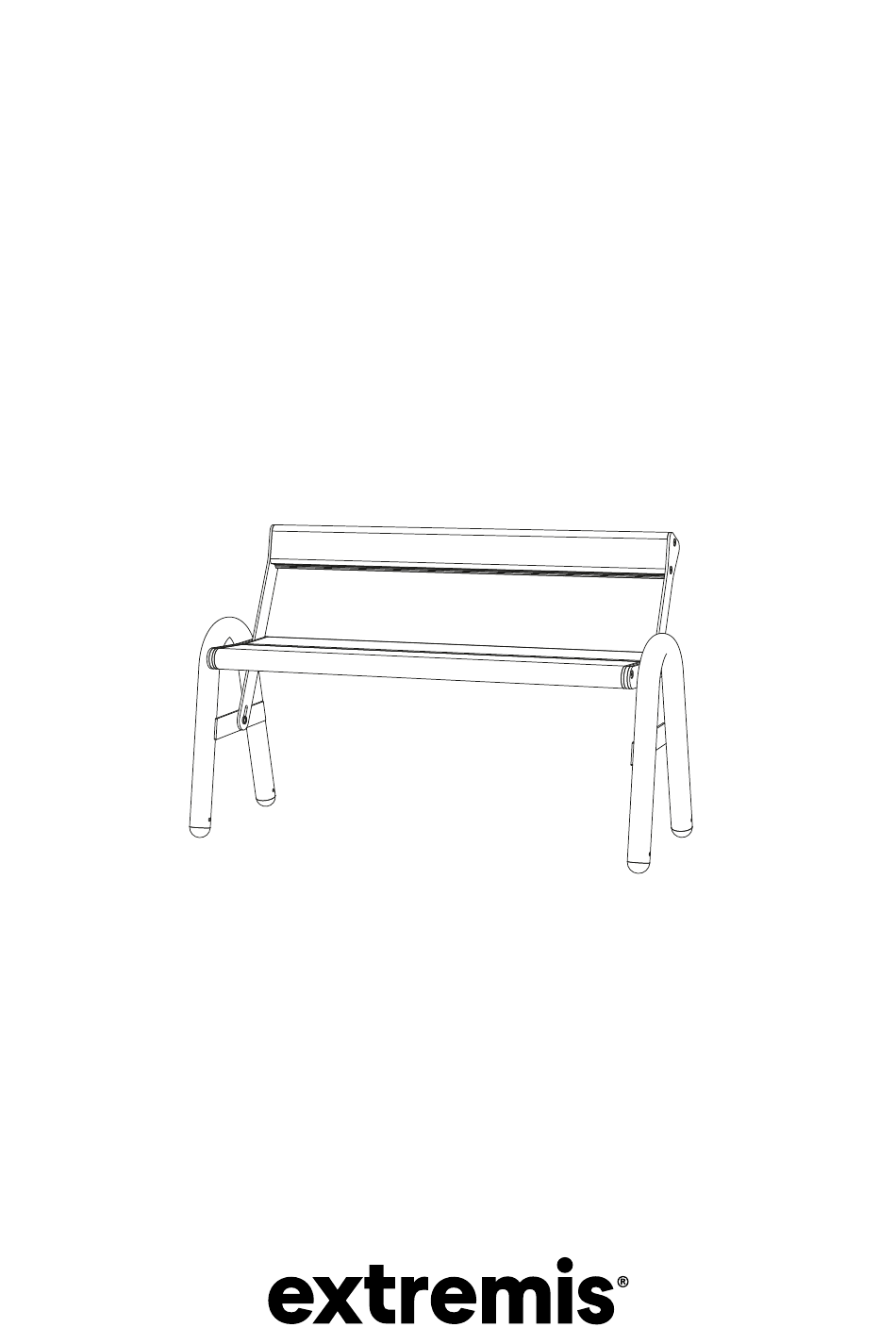

- Page 1 AMAi HiLo bench...
- Page 2 IMPORTANT! RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
- Page 4 Table of contents Mounting kit Exploded view Assembly AMAi HiLo bench Warnings - Text instructions - Maintenance This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
- Page 5 Mounting kit 4 x flat nylon washer 2 x M6x6 4 x M8x2 4 x M8x35 AMA505 Mounting kit to fix HiLo bench (short/long)
- Page 6 Exploded view HiLo bench short HiLo bench long...
- Page 7 AMAi HiLo bench – short/long N° 3 - 5 15’ AMA505 4 x nylon washer 2 x M6x6...
- Page 8 AMA505 4 x M8x35...
- Page 9 AMA505 4 x M8x25...
- Page 11 Warnings Text instructions Maintenance Warnings Assembly text instructions Maintenance ...
- Page 12 Warnings General • Do not use any sharp tools to open the packaging. • We strongly advise against using power tools. • Tripping hazard, mind your step. • Do not put out cigarettes on the bench. • Not grafitti proof. •...
- Page 13 Assembly text instructions 1 - 2 - 3 - ... Take a look at the drawings, starting from page 7 HiLo bench – short/long (p7) 1. Fix the backrest supports to the left & right leg and fasten them with one M6x6 bolt and two flat nylon washers each as shown in the drawing.
- Page 14 Powder coating CLEANING Regularly Use Extremis Multicleaner, a 100% biodegradable detergent or common kitchen cleaning products. Avoid using aggressive products. These sur- faces are best cleaned with a neutral cleaning product diluted in water. REPAIRING DAMAGED POWDER COATING When damaged The impact of sharp objects can damage the coating.
- Page 15 REGULAR CLEANING When dirty Make a solution to remove stains on your Sunbrella. MACHINE WASHING Rarely It is also possible to put the blankets and cushion covers in a washing machine (30°). Do not dry clean or tumble dry. The fabric can be cre- ased.
- Page 16 All rights reserved. Unless otherwise specified, all designs and photographs contained in this publication are copyright protected and are the property of Extremis. No part of this publication may be copied or distributed without Extremis’ prior written consent. The names of the authors of photographs to which we do not hold rights are mentioned here. We have done our utmost to provide a...
