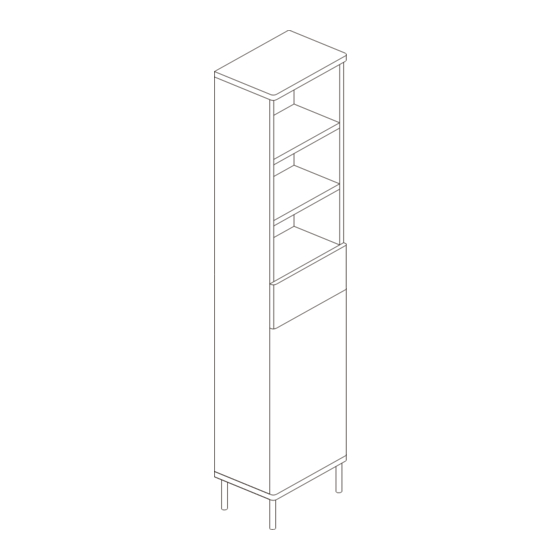

Freja
Tall Boy
Spare Parts
www.argos-support.co.uk
Help@ClickSpares.co.uk
0370 112 1928
Customer Support
0345 640 2020
lssue 2 - 01/11/2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the Freja Tall Boy and is the answer not in the manual?

Questions and answers

Summary of Contents for Habitat Freja Tall Boy

  • Page 1 Freja Tall Boy Spare Parts Customer Support www.argos-support.co.uk 0345 640 2020 Help@ClickSpares.co.uk 0370 112 1928 lssue 2 - 01/11/2022...
  • Page 2 Safety and Care Advice Product Details Grey 2028987 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. Assemble the item as close Keep children and animals We do not away from the work area, small recommend the parts could choke if swallowed. room) as possible.
  • Page 3 Fittings (Screws and Bolts shown to scale) Bag 1 Cam Socket x 24 Cam Stud x 24 Metal Drawer Runner x 2 14mm Screw x 14 12mm Screw x 9 35mm Screw x 4 Hexagonal Key x 1 Shelf Support x 4 30mm Bolt x 4 Wall Bracket x 2 14mm Screw x 10...
  • Page 4 Tools required Crosshead screwdriver Ruler/tape (small & medium) measure Flathead screwdriver Power Drill (small & medium) Hammer Eye protection (when using a hammer or glue) Pencil Drill Heads...
  • Page 5 Panels Upper back panel Lower back panel (684x 322mm) (748x 322mm) Left side panel Right side panel Door panel Adjustable shelf (279x 1434mm) (279x 1434mm) (348x 590mm) (310x 262mm) Top panel Bottom panel Middle fixed Shelf Shelf x 2 (350x 300mm) (350x 300mm) (312x 278mm) (312x 264mm)
  • Page 6 Cam Socket x 24 Cam Stud x 24 Metal Drawer Runner x 2 Cam Socket x 12 Metal Drawer Runner x 2 12mm Screw x 4 12mm Screw x 9 14mm Screw x 14 35mm Screw x 4 Shelf Support x 4 30mm Bolt x 4 Hexagonal Key x 1 Wall Bracket x 2...
  • Page 7 Cam Socket x 12 Rotate Product...
  • Page 8 30mm Bolt x 4 Hexagonal Key x 1 Cam Stud x 4 Rotate Product...
  • Page 9 Cam Socket x 4 Rotate Product Cam Stud x 4 14mm Screw x 2 Wall Bracket x 2 Washer x 2...
  • Page 10 Cam Socket x 4 TWO PEOPLE REQUIRED Rotate Product...
  • Page 11 Cam Stud x 4 Cam Socket x 4 35mm Screw x 4...
  • Page 12 12mm Bolt x 2 Rubber Stopper x 4 Rotate Product 14mm Screw x 4 12mm Screw x 1 Hinge x 2 Large Washer x 1 Left Hand Opening Right Hand Opening...
  • Page 13 12mm Screw x 4 Push to Open Mechanism x 1 Left Hand Opening Right Hand Opening Rotate Product...
  • Page 14 14mm Screw x 8 Left Hand Opening Right Hand Opening TWO PEOPLE REQUIRED Rotate Product...
  • Page 15 14mm Screw x 10 Panel Stiffener x 10 Rotate Product...
  • Page 16 Shelf Support x 4 Adjust the “M” to the appropriate position Rotate Product...
  • Page 17 Wall Plug x 2 45mm Screw x 2 Washer x 2 WARNING! WARNING! BEFORE DRILLING, IN ORDER TO PREVENT OVERTURNING CHECK WALL FOR HIDDEN THIS PRODUCT MUST BE USED WITH PIPES AND CABLES. THE WALL ATTACHMENT DEVICE PROVIDED. Push to open ASSEMBLY COMPLETE...
  • Page 18 •...
  • Page 19 Using camlocks Step 1: Step 3: Connect the cam stud Push the cam stud as directed in the into every hole. assembly instructions using a screwdriver. Step 2: Step 4: T urn the cam socket Insert the cam socket with a screwdriver. as shown in the instructions.
