Summary of Contents for Habitat KRISTOPHER 5644416

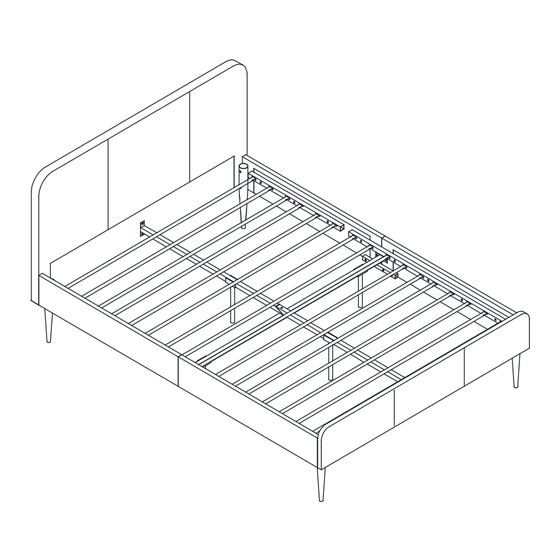

- Page 1 KRISTOPHER 4ft Bed 0345 640 2020 www.argos-support.co.uk Help@ClickSpares.co.uk 0370 112 1928 SU 00- 08/24/23...
- Page 2 KRISTOPHER 4FT 5644416 KRISTOPHER 4FT 4633167 Keep children and animals Assemble the item as close We do not away from the work area, small recommend the room) as possible. parts could choke if swallowed. use of power drill/drivers for Make sure you have enough space Assemble on a soft level inserting screws to layout the parts before...
- Page 3 20 mm Bolt M6 x 16 35 mm Bolt M6 x 8 40 mm Bolt M6 x 16 50 mm Bolt M6 x 20 40 mm Bolt M8 x 1 Allen Key x1 Plastic Plug x32...
- Page 4 Head Board Foot Board Side Panel 01 x2 (1260X 650 mm) (1260X 210mm) (955 X150 mm) Side Panel 02 x2 (955 X150 mm)
- Page 5 Leg x4 Side Rail 01 x2 Support Leg 02 x 2 Support Leg 01 x 2 (300 mm) (1100mm) (225mm) (248mm) Centre Rail 01 Side Rail 03 x2 Side Rail 02 x2 (986mm) (250mm) (636mm) Cross Brace Slats x16 Centre Rail 02 (1215mm) (1182mm) (986mm)
- Page 6 Allen Key x1 Do not tighten the bolts fully until step 9. Allen Key x1...
- Page 7 Allen Key x1 & Allen Key x1...
- Page 8 Allen Key x1 Allen Key x1...
- Page 9 Allen Key x1 Allen Key x1 & &...
- Page 10 Allen Key x1 & &...
