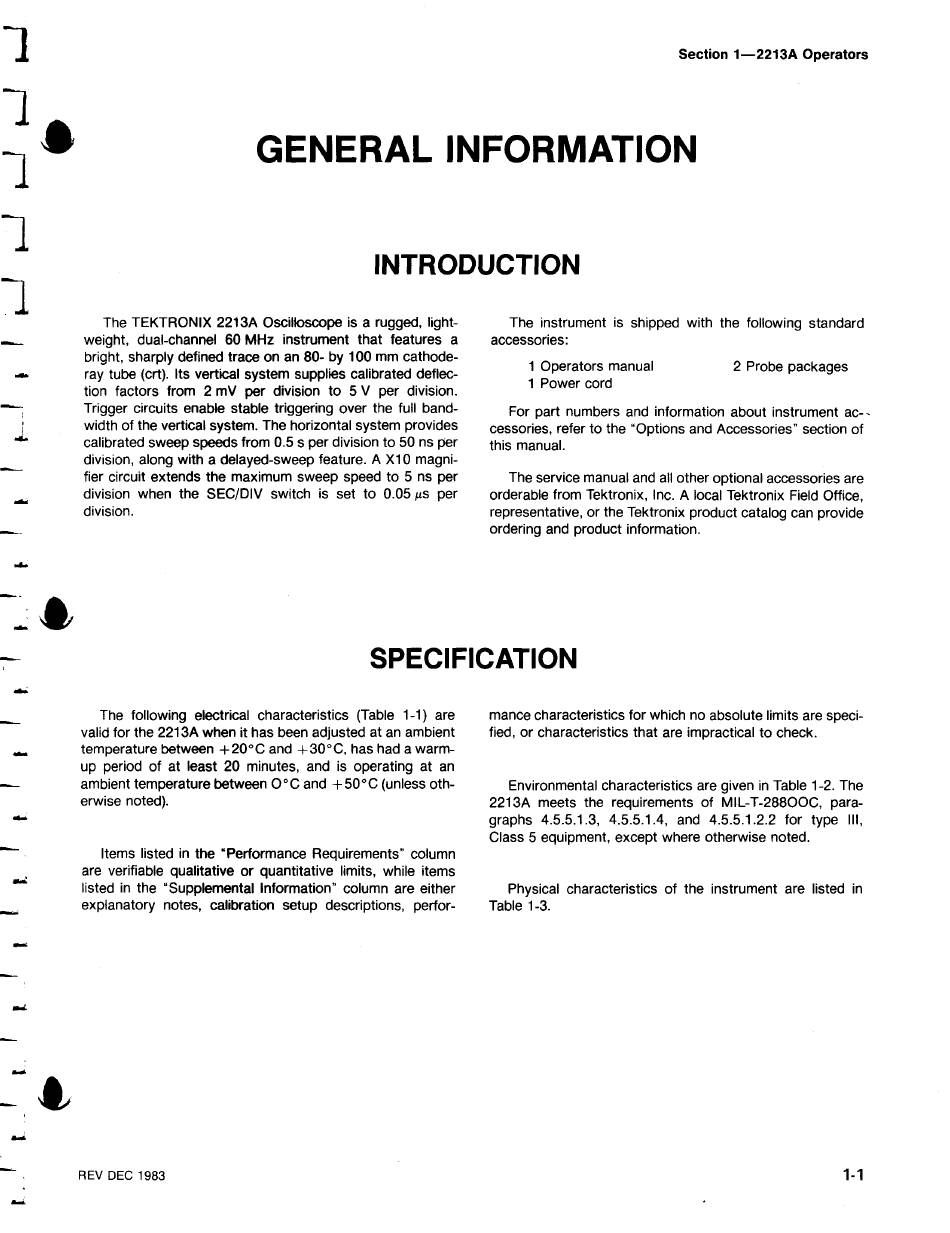

T
he T EKTRO N IX 2213Α Oscilloscope is α ru gged, lig ht-
weig ht,
d
ual-channel 60 MH z instrument that features α
br ight, sharply defi ned trace on an 80-
b
y 100 mm cat h ode-
ray tube (crt). Its vertical system supplies cali brated deflec-
tion factors from 2 mV per
d
ivisio n to 5 V per divisio n.
Trigger circuits e n able stable t riggering over th e full band-
width of th e vertical system . Th e
h
o rizon tal system provides
cali brated sweep speeds from 0.5 s
p
e r divisio n to 50 ns
p
e r
d
ivision, along with α
d
elayed-sweep feature. Α
X10 magni-
fier circuit exte n ds the maximum sweep speed to 5 ns
p
er
d
ivisio n w hen
t
h e SEC/DI V switc h is set to 0.05
Ειs
per
d
ivision .
The instrument is shi
p
ped with
t
he following standard
accessories :
1 Operators manual
2 Pro be
p
ackages
1 Power cord
For part numbers an
d
information about instrument ac--
cessories, refe r to the "Options and Accessories" sectio n of
t h is ma n ual .
The service ma nual and all other optional accessories are
ordera ble from Te ktronix, Inc . Α local Te k tronix Field Office,
representative, or the Te ktronix
p
ro
d
uct catalog can
p
rovide
or dering and pr oduct information .
Th e following elect rical c haracteristics (Table 1-1) are
valid for t h e 2213 Α
w
h e n it
h
as been adjusted at an am b ie nt
temperature betwee n +20°C and +30°C,
h
as
h
a
d
α warm-
up period of at least 20 minutes, and is operating at an
am bient tempe r ature
b
etween Ο °C and +50°C (unless ot h-
erwise noted) .
Items listed in th e " Performance Req ui remen ts" column
are verifiable qu alitative o r q ua n titative limits, while items
liste
d
in th e "S upp leme n tal Information" column are either
explanatory notes, calibration set up descri ption s, perfor-
mance c haracteristics for which no absolute limits are speci-
fied, or c haracteristics th at are imp ractical to check.
En vironmental c h aracte r istics are give n in Ta ble 1-2. T he
2213Α meets the req uireme n ts of MIL- Τ -288000,
p
ara-
grap h s 4.5 .5 .1 .3, 4 .5 .5 .1 .4, and 4.5 .5 .1 .2 .2 for ty
p
e ΙΙΙ ,
Class 5 equi p me nt, exce p t where ot herwise noted.
Ph ysical characteristics of the instrument are listed in
Table 1-3.
