GOLBAL PROCUREMENT AND MARKETING LIMITED

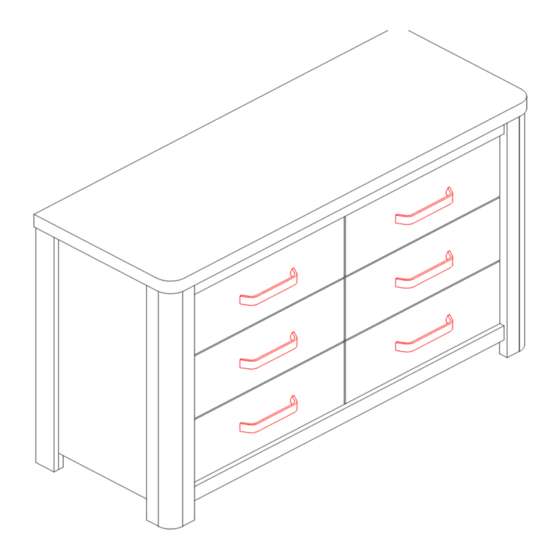

HUNTINGDON 6 DRAWER DRESSER
Assembly instruction- Please keep for future reference
Dimensions
No.People
Width:
120 cm
Depth:
45 cm
Height:
79 cm
Important-Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please email aftersales@gpmfurniture.co.uk
Assembly Time
CHTHUN6DW
40 mins
(approx)
OW#
1
CHTHUN6DW
Advertisement
Related Manuals for GPM HUNTINGDON CHTHUN6DW
Summary of Contents for GPM HUNTINGDON CHTHUN6DW
- Page 1 GOLBAL PROCUREMENT AND MARKETING LIMITED HUNTINGDON 6 DRAWER DRESSER Assembly instruction- Please keep for future reference CHTHUN6DW Dimensions No.People Assembly Time Width: 120 cm CHTHUN6DW 40 mins Depth: 45 cm (approx) Height: 79 cm Important-Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please email aftersales@gpmfurniture.co.uk...
- Page 2 If you are unhappy with the product and wish to return it, please following the retailer’s return procedure...
- Page 3 Components - Panels If you have damaged or missing components, email aftersales@gpmfurniture.co.uk Please check that you have all the components listed below before constructing your item. Thickness Part No Description (mm) Top panel 40 mm Side Right panel 40 mm Side Left panel 40 mm Center panel...
-
Page 4: Components - Fixings
Components - Fixings If you have damaged or missing components, email aftersales@gpmfurniture.co.uk Please check that you have all the components listed below before constructing your item. Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than HARDWARE MINIFIX 16MM X 34 MINICAM 16MM X 34... - Page 5 Assembly Instructions If you have damaged or missing components, email aftersales@gpmfurniture.co.uk Step 1 Tap Wood Dowel (D) into holes as shown. Step 2 Fix Minifix (A) to panels as shown.
- Page 6 Step 3 Step 4 TIGHTEN LOCK ARROW FIX THE MINICAM B AND MIN IFIX A TO THE HOLE AS SHO WN FIRST HOLE Fix Drawer Slide (Q) to Center Panel (4) Fix Front Frame (9) to Side Panels (2) & (3). Insert Minicam (B) and on both side using Screw (L) &...
- Page 7 Step 6 6a. Attach panel (7 & 8) to Center panel (4) using Cap Wood Screw (P). TIGHTEN LOCK ARROW FIX THE MINICAM 6b. Attach panel (7 & 8) to side panel (2 & 3). B AND MINIFIX A TO THE HOLE AS Tighten using Minicam (B).
- Page 8 Step 8 Attach Back Cover panel (10) to the back, with Nail (H) using a small hammer. Step 9 9a. Attach Drawer slide (Q) to drawer side panel (13 & 14). 9b. Attach Drawer side panel (13 & 14) to front panel (11/12) with using Minifix (A) and tighten using Minicam (B).
- Page 9 Step 10 Slide assembled Drawer unit into place. SLIDE IN Step 11 Attach the Anti-Tipping kit onto wall following the steps as shown Assembly Complete...
