Summary of Contents for GPM ACADIA CHTACA6DW

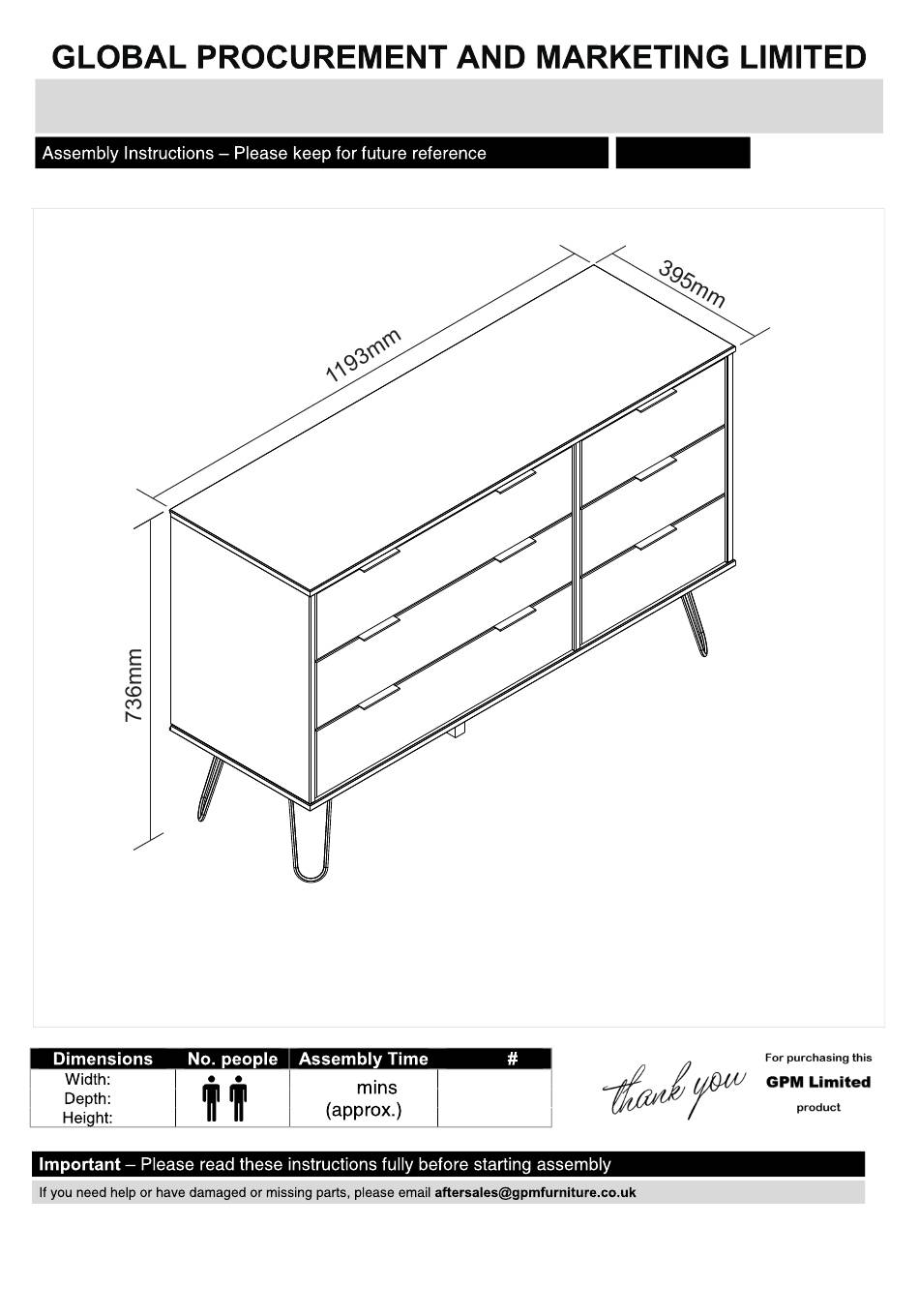

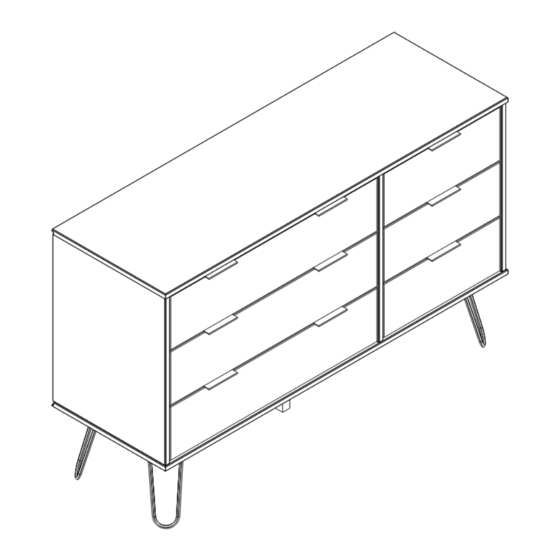

- Page 1 ACADIA 3+3 DRAWER CHEST CHTACA6DW 119.3cm GP0596 39.5cm 2022/0261 53.6cm © CPLtd 9/2020...
- Page 4 1193 X 395 504 X 392 LEFT SIDE PANEL 504 X 392 RIGHT SIDE PANEL DRAWER SLIDE 300 X 25 1193 X 395 BASE 200 X 115 BACK PANEL 1173 X 258 H PROFILE 1152 X 28 SMALL DRAWER FRONT 407 X 163 RIGHT DRAWER SIDE 335 X 115...
- Page 5 30mm 40mm 25mm 28mm Ø3,5 Ø4,5 Ø3,5 Ø8 GOLD GOLD GOLD 25mm 14mm Ø4,5 Ø3,5 BLACK GOLD 40mm 16mm 16mm Ø4,5 Ø8 Ø3,0 GOLD...
- Page 6 Step 1 25mm Ø8 Step 2 40mm Ø8 Step 3 25mm Ø8 Step 4 25mm Ø8...
- Page 7 Ensure the drawer runner side with 2 holes for dowels part 04 is facing towards the top of the panel. Step 5 TOP OF PANEL 28mm Ø4,5 TOP OF PANEL GOLD Ensure the drawer runner side with 2 holes for dowels Step 6 part 19 is facing towards the top of the panel.
- Page 8 Step 8 BACK 40mm Ø4,0 GOLD Step 9 Ensure the drawer runner side with 2 holes for dowels Dowel to be pushed part 19 is facing towards the top of the panel. all the way through divider panel 17. B B B TOP OF PANEL 28mm Ø4,5...
- Page 9 Step 10 8 x 8 Step 11 J J J 16mm Ø4,5 GOLD 40mm Ø4,0 GOLD...
- Page 10 25mm Ø8 Step 12 Step 13 28mm Ø4,5 GOLD Step 14 30mm Ø3,5 14mm 14mm Ø3,5 Ø3,5 GOLD BLACK BLACK BLACK...
-
Page 11: Important Notice
Step 15 25mm Ø4,5 GOLD Step 16 BLACK 30mm 16mm 14mm 14mm Ø3,5 Ø3,5 Ø3,5 Ø3,0 P3 P3 GOLD BLACK BLACK Fixing drawer safety stops Step 17 1; Insert drawers into frame by approximately 50mm. 2; Push wooden dowels in through the pre-drilled holes close to the back of the drawer sides until they are level with the... - Page 12 Step 18 WARNING: CHECK FOR HIDDEN PIPES AND CABLES BEFORE DRILLING. IMPORTANT: IF YOUR WALLS ARE NOT SOLID LIKE BRICK OR STONE, YOU WILL REQUIRE SPECIALIST FITTINGS (NOT SUPPLIED). - Place fixing strip against the wall and mark position for drilling hole. - Drill hole in your wall to a depth of 30mm using a 6mm drill bit.
