Flexible Io Board; Internal Speaker - Lenovo ThinkStation P2 Tower Hardware Maintenance Manual

Flexible IO board

Prerequisite
Before you start, read Generic Safety and Compliance Notices, and print the following instructions.
For access, remove these parts in order, if any:
• "Computer cover" on page 54
• "E-lock" on page 93
• "Rear fan" on page 84
• Type-2 heat sink and fan assembly, if any. See "Heat-sink-and-fan assembly" on page 85

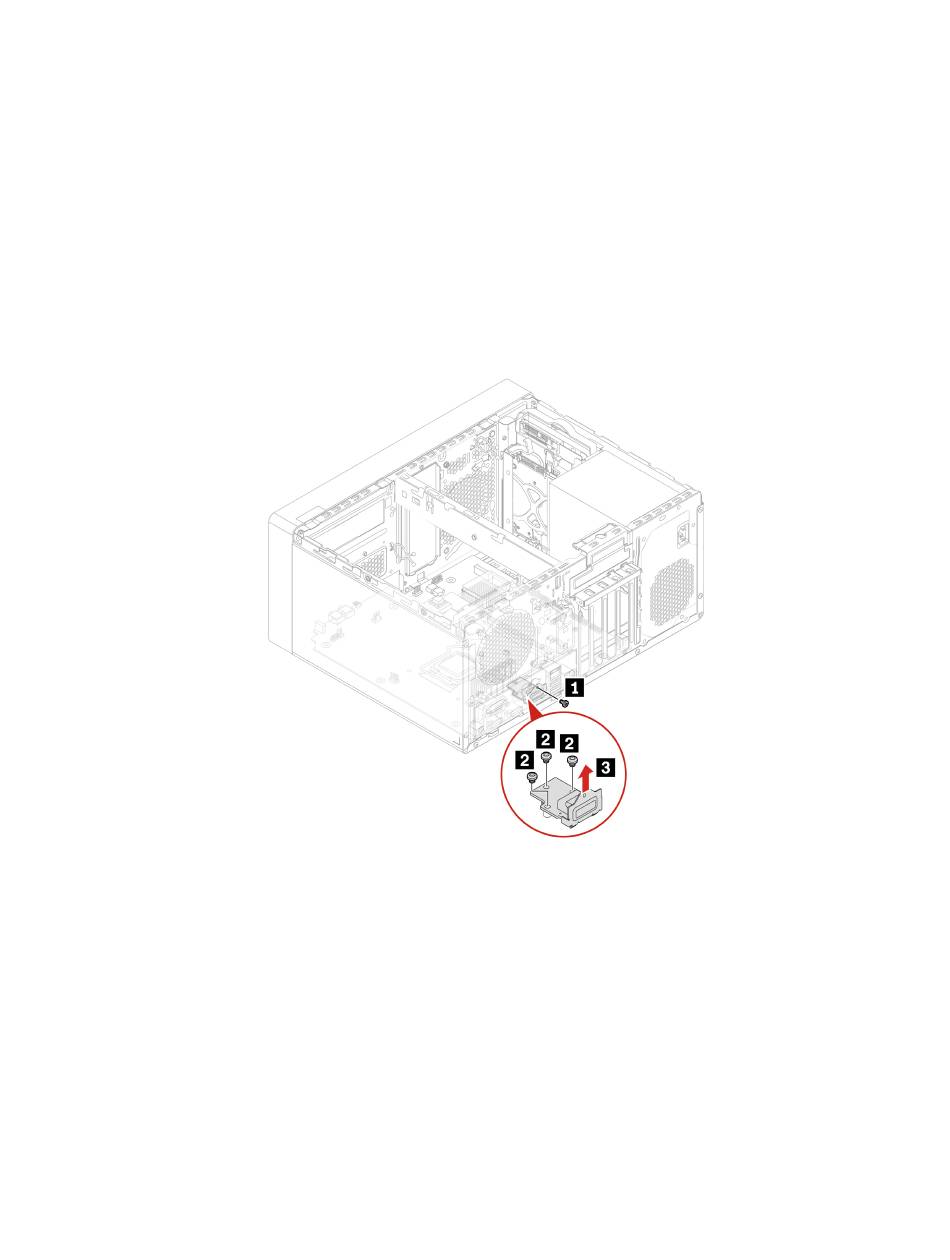

Removal steps

Internal speaker

Prerequisite
Before you start, read Generic Safety and Compliance Notices, and print the following instructions.
For access, do the following:
1. Remove these parts in order, if any:
• "Computer cover" on page 54
• "Slim optical drive" on page 55
• "Front bezel" on page 56
• "Slim-optical-drive cage" on page 63
2. Disconnect the internal speaker cable from the system board.
.
Chapter 7 Hardware removal and installation
95
