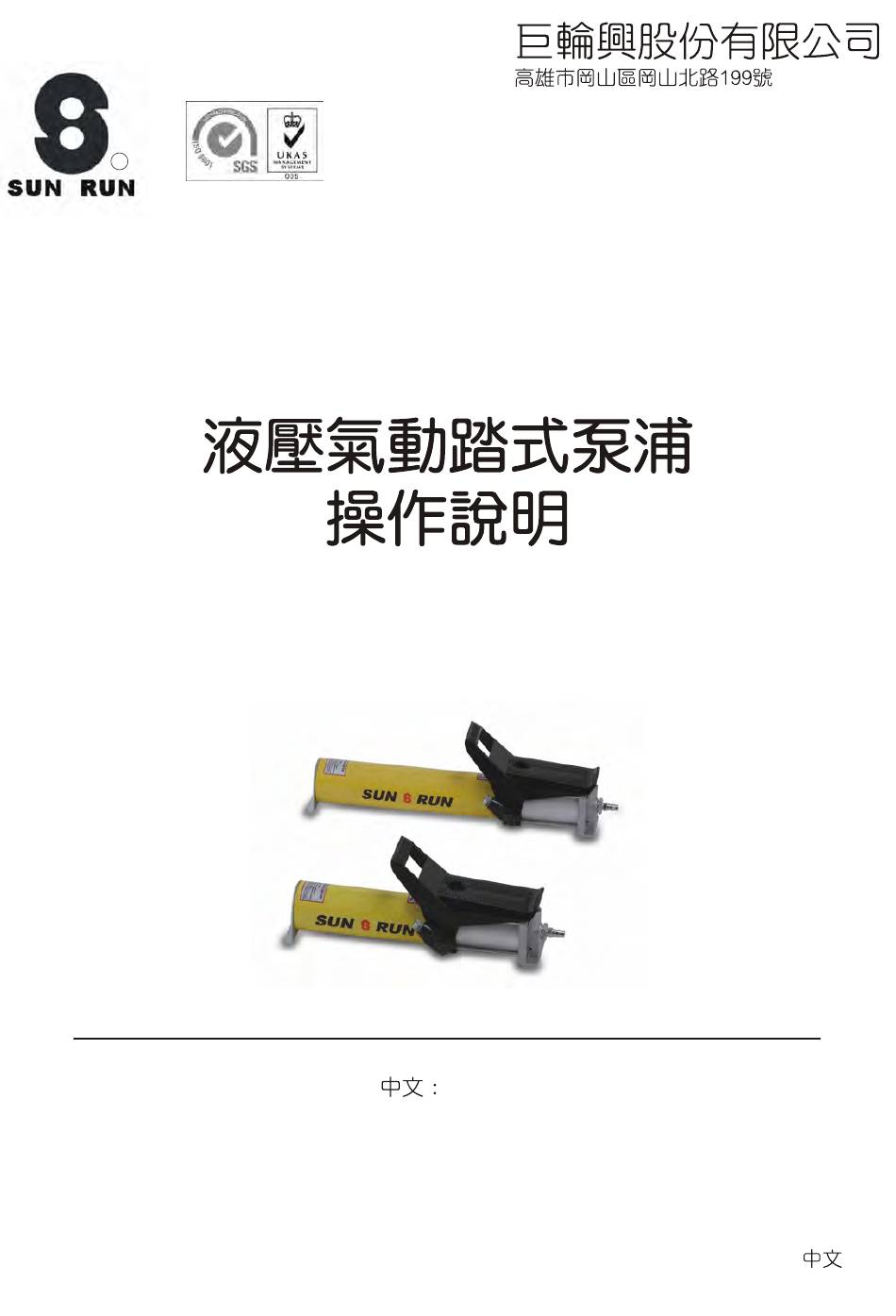

- Page 1 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 SPA-70F C1~C7 English Ver.16...
- Page 2 :SPA-70F , SPA-70FL 700 bar(10,000psi) .. ) 65 C(150 F) 700 bar (10,000psi) Page:C1...
- Page 3 :SPA-70F , SPA-70FL SUN RUN SUN RUN SUN RUN SUN RUN Page:C2...
- Page 4 :SPA-70F , SPA-70FL (mm) (kgf/cm ) (psi) (kgf/cm ) (c.c.) (c.c/mm) 10,000 SPA-70F 6-10 1:100 Single Speed 10,000 SPA-70FL 1200 6-10 1:100 SUN RUN SUN RUN ...). SUN RUN Page:C3...
- Page 5 :SPA-70F , SPA-70FL SUN RUN 1/2" (1cm) SUN RUN SUN RUN 3/8"NPTF 3/8"NPTF : SUN RUN 3/8"-18NPTF 1-1/2, Page:C4...
- Page 6 :SPA-70F , SPA-70FL 85~142 psi (6~10 bar). 9 CFM (15m /h)(minimum) 1/4" (0.5cm)NPTF 1/4" (0.5cm) SUN RUN 1/4" (0.5cm)NPTF .5.1 .5.1 .5.2 .5.2 .5.3 .5.3 Page:C5...
- Page 7 :SPA-70F , SPA-70FL SUN RUN Page:C6...
- Page 8 :SPA-70F , SPA-70FL SUN RUN Page:C7...
- Page 9 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 OPERATING INSTRUCTIONS FOOT-OPERATED AIR POWER HYDRAULIC PUMP SPA-70F English E1~E7 English Ver.16...
-
Page 10: Safety Precautions
Install SUN RUN equipment. The operator is pressure gauges in the system to monitor responsible for this activity towards other operating pressure. - Page 11 Always use a saddle to protect the plunger. WARNING: Immediately replace worn or damaged parts with genuine SUN RUN parts. SUN RUN parts are designed to fit properly and withstand rated loads. IMPORTANT: Hydraulic equipment must only be serviced by a qualified hydraulic technician.
-
Page 12: Specifications
5. The pump is equipped with an overload valve, preset for maximum operating pressure. DO NOT attempt to adjust the overload valve. If adjustment is required, contact an SUN RUN service center. Adjustment by other than qualified personnel may cause malfunction, damage to the system, and / or personal injury. -
Page 13: Installation
Adding Oil to th Reservoir 1. Remove fill plug (see fig.2) and fill SUN RUN hydraulic oil to 1/2" (1cm) below the fill opening. Use of fluids other than SUN RUN hydraulic oil may cause damage and will void your warranty. -
Page 14: Operation
2. Tighten pipe connections securely, but DO NOT OVER-TIGHTEN. NOTE : To promote long, trouble free pump operation, install an SUN RUN air filter regulator in the air line. 1/4" (0.5cm)NPTF Air connect... -
Page 15: Priming The Pump
The pump is equipped with an overload valve, preset for maximum operating pressure. DO NOT attempt to adjust the overload valve. If adjustment is required, contact an SUN RUN Service Center. Adjustment by other than qualified personnel may cause malfunction, damage to the system, and/or personal injury. -
Page 16: Troubleshooting
Foot operated Air Power Hydraulic Pump 8. TROUBLESHOOTING The following information is intended as an aid in determining if a problem exists. DO NOT disassemble the pump. For repair service, contact the Authorized SUN RUN Service Center in your area. Problem Possible Cause Solution Low fluid level.
