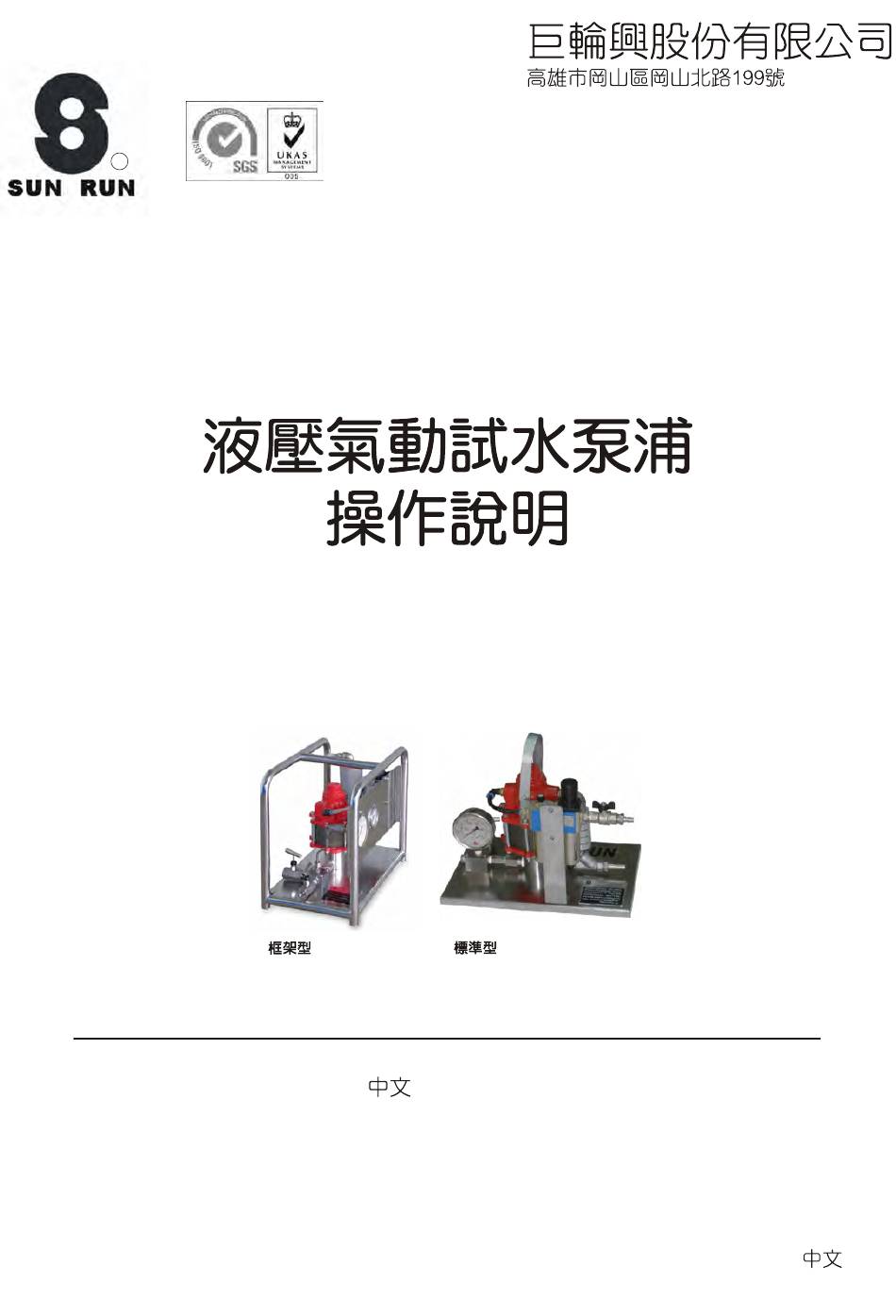

- Page 1 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 SPAW Steel frame Standard type :C1~C5 English Ver.22...
- Page 2 SPAW- 700 bar(10,000psi) .. ) 65 C(150 F) 700 bar (10,000psi)
- Page 3 SPAW- SUN RUN SUN RUN SUN RUN SUN RUN...
-
Page 4: Standard Type
Model Compress Output Work Equipped Weight Dimensions press. press. reservoir Number Ratio (kgf/cm ) (c.c) (kg) (bar) (mm) (cm /per stroke) SPAT-130-700 1:150 2000 1/2"PT-14 220x420L Portable 5600 1:150 1/2"PT 1/2"PT 400*400*420 SPAQ-130-700F Steel Frame 1:150 5600 1/2"PT 1/2"PT 500*500*520... - Page 5 SPAW- Model Hydraulic Hydraulic Approximate air pressure to hydraulic pressure ratio- Hydraulic piston piston area static condition Number piston stroke (mm) (mm) (cm ) (mm) (bar) SPAW-130-300L 2.01 31.8 2.01 31.8 SPAW-130-300F 0.79 31.8 1050 SPAW-130-700F 60:1 Ratio 60:1 Ratio SPAW-130-300L SPAW-130-300F Outlet pressure (psi)
- Page 6 SPAW- " "...
- Page 7 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 OPERATING INSTRUCTIONS HYDRAULIC AIR PUMP SPAW Steel frame Standard type English E1~E5 English Ver.22...
-
Page 8: Safety Precautions
Install SUN RUN equipment. The operator is pressure gauges in the system to monitor responsible for this activity towards other operating pressure. - Page 9 Always use a saddle to protect the plunger. WARNING: Immediately replace worn or damaged parts with genuine SUN RUN parts. SUN RUN parts are designed to fit properly and withstand rated loads. IMPORTANT: Hydraulic equipment must only be serviced by a qualified hydraulic technician.
-
Page 10: Specification
Instructions for: Models:SPAW Hydrostatic Pump Specification SV-82 Water / oil outlet SV-82 Water / oil outlet Water / oil inlet Air coupler SPAW-130-300F Steel frame Standard type SPAW-130-700F Description Model Work Equipped Weight Dimensions Compress Output press. press. reservoir Number Ratio (kgf/cm ) (c.c) - Page 11 Instructions for: Models:SPAW Hydrostatic Pump Specification Model Hydraulic Hydraulic Approximate air pressure to hydraulic pressure ratio- Hydraulic piston piston area static condition Number piston stroke (mm) (mm) (cm ) (mm) (bar) SPAW-130-300L 2.01 31.8 2.01 31.8 SPAW-130-300F 0.79 31.8 1050 SPAW-130-700F SPAW-130-300L 60:1 Ratio...
-
Page 12: Operation
STEP1: SUN RUN supply all pump units with the air pressure regulator set to stall the pump at its maximum working pressure. Connect the main air supply to the air input, water/oil input to water/oil hose and water/oil output to working object.
