- Page 1 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 C1~C5 English Ver.22...
- Page 2 SPAT- 700 bar(10,000psi) .. ) 65 C(150 F) 700 bar (10,000psi)
- Page 3 SPAT- SUN RUN SUN RUN SUN RUN SUN RUN...
- Page 4 SPAT-130-700 3/8"HT Release Valve coupler Description Model Compress Output Work Equipped Weight Dimensions press. press. reservoir Number Ratio (kgf/cm ) (c.c) (kg) (mm) (bar) (cm /per stroke) SPAT-130-700 1:150 2000 17.7 1/2"PT-14 220x420L Portable SPAT-130-700-4K 1:150 4000 1/2"PT-14 220x530L Portable Reservoir will be changed by user.
- Page 5 3.1. 3.2. 3.3.
- Page 6 "A"; "B" "A" "B" "B" "A" 1/2" (1cm) SUN RUN 1/2 inch (1cm)
- Page 7 CHU LUN SING CO.,LTD No.199, Gangshan N. Rd., Gangshan Dist., Kaohsiung City 82059, Taiwan http://www.sunrun.com.tw E-mail:sun.run@msa.hinet.net TEL:886-7-6210505 FAX:886-7-6217575 OPERATING INSTRUCTIONS HYDRAULIC AIR PUMP English E1~E5 English Ver.22...
-
Page 8: Safety Precautions
Install SUN RUN equipment. The operator is pressure gauges in the system to monitor responsible for this activity towards other operating pressure. - Page 9 Always use a saddle to protect the plunger. WARNING: Immediately replace worn or damaged parts with genuine SUN RUN parts. SUN RUN parts are designed to fit properly and withstand rated loads. IMPORTANT: Hydraulic equipment must only be serviced by a qualified hydraulic technician.
-
Page 10: Specifications

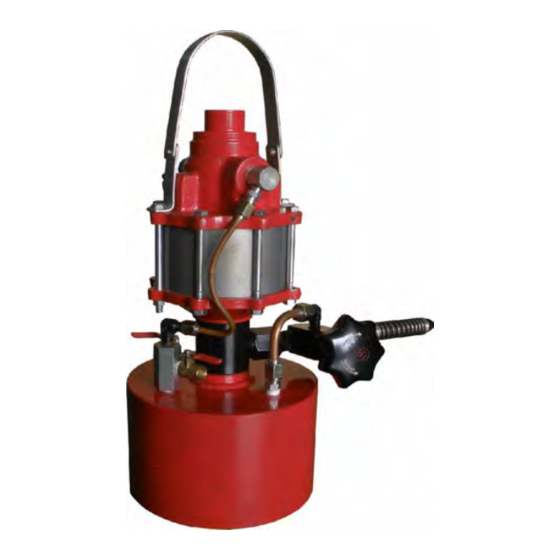

Instructions for: Models:SPAT Hydrostatic Pump 2.SPECIFICATIONS SPAT-130-700 3/8"HT Release Valve coupler Description Model Compress Output Work Equipped Weight Dimensions press. press. reservoir Number Ratio (kgf/cm ) (c.c) (kg) (mm) (bar) (cm /per stroke) SPAT-130-700 1:150 2000 17.7 1/2"PT-14 220x420L Portable... -
Page 11: Installation
Instructions for: Models:SPAT Hydrostatic Pump 3.INSTALLATION Connecting the Pump 3.1.Thread hose into pump outlet. Use 1-1/2 wraps of Teflon tape (or suitable thread sealant) on hose fitting, leaving the first complete thread free of tape to ensure that tape does not shed into hydraulic system, causing damage. Trim loose ends. -
Page 12: Checking The Oil Level
Check reservoir hydraulic oil level every 40 hours of operation. Add oil when necessary to bring the level to 1/2" (1cm) below the fill opening. Use only SUN RUN hydraulic oil. The use of other oils or fluids may damage your system, and will void your SUN RUN warranty.
