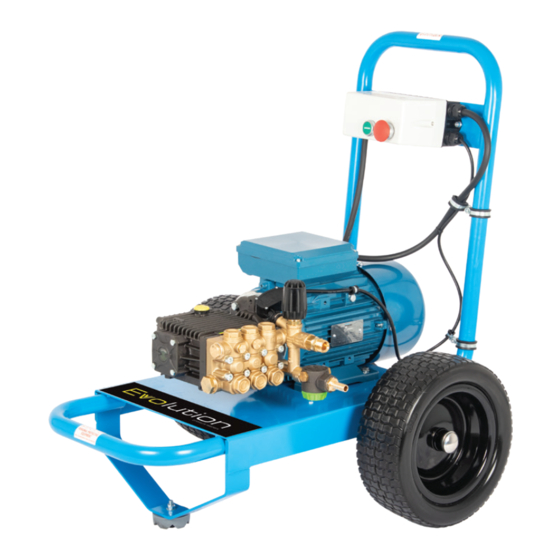

- Page 1 793-1195 Evolution pressure washers Electric Pressure Washer Original Manufacturer Instructions...
-
Page 2: Table Of Contents
Introduction This manual and any other literature supplied must be read fully prior to the initial operation of your machine and be stored for later use or for subsequent owners. Pay particular attention to any instructions relating to operation and safety and maintenance of the unit. - Page 3 1. Component Identification - Main Machine (1) 1-11 1-10 Item No. Main Machine Photos Trolley Frame Trolley Wheels & Tyres Electric Motor High Pressure Pump Electrical Box & Starter Stop/Start Buttons Motor Cooling Fan Electrical Cable Electrical Plug - 16 Amp (attached to 1-8 Electrical Cable) 1-10 Electric Motor Rating Plate 1-11...
-
Page 4: Component Identification
1. Component Identification - Pump Close Up (2) & Accessories (3) Item No. Pump Close up Unloader Valve with Internal Bypass & Pressure Adjustor Knob Oil Breather Dipstick Pump Oil Sight Glass Suction Hose Inlet High Pressure Outlet Pressure Switch Suction Filter 3-10 3-11... -
Page 5: Technical Specification
2. Technical Specification Model No. E1T12100EL-TS Voltage 230 Volts Amps 12.2 Amps Cycle 50 Hz Power 2.2 kW Nominal RPM 1450 Rpm - 4 Pole Shaft 28mm Male Material Die cast aluminium housing Protection Thermal Max Feed Temperature 40°C Minimum Feed Flow Rate 13 Lpm Maximum Feed Pressure 0.3 MPa - 3 Bar - 43.5 psi... -
Page 6: Intended And Proper Use - Commercial
3. Intended and Proper Use - Commercial This machine is intended for Commercial use and is not suitable for normal housekeeping purposes by private persons whereby there may be a source of danger to the public. The machine must be used solely by professional contractors who are properly trained and wearing protective clothing to the required health &... - Page 7 4. Safety Information - continued High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, animals, live electrical equipment or the machine itself. Do not use the machine within range of persons unless they wear protective clothing.
-
Page 8: Safety Devices
4. Safety Information - continued Electricity can cause serious harm. The unit is intended for installation & use by qualified personnel familiar with health & safety requirements and national legislation. It must be connected to an electricity supply installed by an electrician in accordance with BS7671 (or IEC60364). -
Page 9: Standard Accessories
6. Standard Accessories The E1T12100EL-TS pressure washer is supplied with the following accessories. Make sure all the items listed are included when unboxing for the first time. • High pressure lance assembly. • 10m high pressure hose assembly. • 3m suction hose assembly with suction filter and hose clamps. •... -
Page 10: Connection To Electrical System
7. Pre-Operation Checks and Set Up SET UP Suction Hose Suction Hose Connect the suction filter and hose assembly to the suction filter hose barb with the supplied hose clip. Ensure all connections are tight and leak free. Air leaks on the suction side will impair the machine performance and damage components. -
Page 11: Start Up And Operation
8. Connection to Electrical System - continued • Do not use the high pressure cleaner if the electric cable is damaged. • If the power cable is damaged do not repair, have it replaced by a qualified electrician. Replacement cords should have the same technical specifications as the original. If the power supply is interrupted during use, press the stop button on the motor control box to reset the unit. -
Page 12: Start Up (9) & Stopping (10) Labelled Photos
11. Start Up (9) & Stopping (10) Labelled Photos 9.2 +10.5 9.3 +10.2 SUCTION ELECTRIC FILTER PLUG 9.4 + 10.3 REGULATOR KNOB SAFETY TRIGGER 10.1 10.4 LATCH SUCTION FILTER 12. Transporting During transportation the machine must be secured using suitably rated straps and fixings. -
Page 13: Maintenance Information
14. Maintenance Information Danger – Risk of injury and electric shock Inspection, maintenance and repairs should be carried out by qualified personnel. Before carrying out any maintenance isolate the unit from the power supply. Warning – Danger of Trapped High Pressure Fluid Maintenance and repairs should always be performed by trained and authorised personnel. -
Page 14: Troubleshooting
16. Troubleshooting Symptom Possible Cause Remedy Pump running normally Pressure Regulator valve Check and adjust. but pressure low. Pump sucking air. Check water supply and possible air ingress. Lance in low pressure Check and adjust. mode. Nozzle worn. Check and/or replace. Worn piston packing. -
Page 15: Disposal And Environmental Protection
EN60335-2-79-2012 EN1829-1-2010 EN1829-2-2008 EN4871-2009 Manufacturer Dual Pumps Ltd, Saxby Road Industrial Estate, Melton Mowbray, LE13 1BS. United Kingdom Person authorised to compile the technical file & declaration Tom Herridge, Director Signed – Date – 12/01/2022 We hereby declare that the machinery described above complies with the relevant basic health and safety requirements of the UKCA &... - Page 16 Unit 8, Hudson Road Saxby Road Ind. Est. Melton Mowbray Leicestershire LE13 1BS Telephone: +44 (0)1664 567226 Fax: +44 (0)1664 410127 E-mail: info@dualpumps.co.uk www.dualpumps.co.uk...
