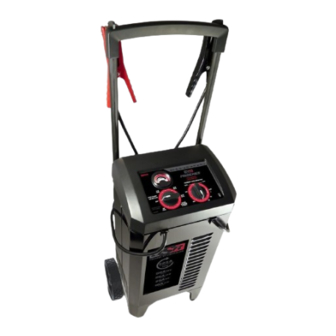

Manual battery charger
Table of Contents

Advertisement

Available languages

Available languages

Manual Battery Charger
Cargador de baterías manual
Chargeur de batterie manuel
OWNERS MANUAL / MANUAL DEL USUARIO /
PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual
will explain how to use the battery charger safely and effectively. Please read and follow
these instructions and precautions carefully.
POR FAVOR CONSERVE ESTE MANUAL DEL USUARIO Y LEALO ANTES DE CADA
USO. En este manual le explica cómo utilizar el cargador de batería de manera segura y
confiable. Por favor, lea y siga las siguientes instrucciones y precauciones.
GARDER LE MANUEL D'INSTRUCTION ET LISEZ LE AVANT CHAQUE UTILISATION.
Ce manuel explique comment utiliser le chargeur de batterie d'une façon securitaire et efficace.
S'il vous plaît lisez et suivez ces instructions et precautions.
105-4
105-5
105-8
MANUEL D'UTILISATION
0099002197E-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSR139 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Schumacher Electric DSR139

  • Page 1 Manual Battery Charger Cargador de baterías manual Chargeur de batterie manuel 105-4 105-5 105-8 OWNERS MANUAL / MANUAL DEL USUARIO / MANUEL D’UTILISATION PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the battery charger safely and effectively. Please read and follow these instructions and precautions carefully.
  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS ..........5 PERSONAL SAFETY PRECAUTIONS .......................5 PREPARING TO CHARGE .........................6 CHARGER LOCATION ..........................6 DC CONNECTION PRECAUTIONS ......................6 FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE ..........6 FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE ............7 GROUNDING AND AC POWER CORD CONNECTIONS .................7 ASSEMBLY INSTRUCTIONS ........................8 CONTROL PANEL ............................9...
  • Page 3 CONTENIDOS INSTRUCCIONES IMPORTANTES DE SEGURIDAD – GUARDE ESTAS INSTRUCCIONES ....13 PRECAUCIONES DE SEGURIDAD PERSONAL ..................13 PREPARACIÓN PARA LA CARGA ......................14 UBICACIÓN DEL CARGADOR.........................14 PRECAUCIONES DE CONEXIÓN EN CC ....................14 SIGA ESTOS PASOS CUANDO LA BATERÍA ESTÉ COLOCADA EN EL VEHÍCULO ......15 SIGA ESTOS PASOS CUANDO LA BATERÍA SE ENCUENTRE FUERA DEL VEHÍCULO ....15 CONEXIONES A TIERRA Y ENERGÍA DE CA ..................15 INSTRUCCIONES DE MONTAJE ......................16...
  • Page 4 TABLE DES MATIÈRES CONSIGNES DE SÉCURITÉ IMPORTANTES – CONSERVER CES INSTRUCTIONS ......23 MESURES DE SÉCURITÉ PERSONNELLE ....................23 PRÉPARATION POUR LE CHARGEMENT ....................24 EMPLACEMENT DU CHARGEUR ......................24 PRÉCAUTIONS SUR LA CONNEXION C.C....................24 ÉTAPES À SUIVRE QUAND LA BATTERIE EST INSTALLÉE DANS UN VÉHCULE ......25 ÉTAPES À...
  • Page 5: Important Safety Instructions - Save These Instructions

    Manual Battery Charger OWNERS MANUAL 105-4 PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. 105-5 This manual will explain how to use the charger safely and effectively. 105-8 Please read and follow these instructions and precautions carefully. IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS –...
  • Page 6: Preparing To Charge

    PREPARING TO CHARGE If necessary to remove battery from vehicle to charge, always remove grounded terminal from battery first. Make sure all accessories in the vehicle are off, so as not to cause an arc. Be sure area around battery is well ventilated while battery is being charged. Clean battery terminals.
  • Page 7: Follow These Steps When Battery Is Outside Vehicle

    FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE WARNING: A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY: Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has a larger diameter than NEGATIVE (NEG, N, –) post.
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS It is important to fully assemble your charger before use. Remove all cord wraps and uncoil the cables prior to using the battery charger. Follow these instructions for assembly. PARTS TOOLS NEEDED 1. ¼-20, thread-cutting screws, 4 ea. 3/8˝...
  • Page 9: Control Panel

    10. CONTROL PANEL CHARGE RATE SELECTOR SWITCH Use the charge rate selector switch to select the charge rate or engine start setting. Charge – For charging small and large batteries. Boost – For quickly adding energy to a severely discharged or large capacity battery prior to Engine Start. Engine Start –...
  • Page 10: Calculating Charge Time

    USING CHARGE MODE Use for charging automotive, marine and deep-cycle batteries. Monitor the charging process and stop when the battery is fully charged. Not doing so may damage your battery and result in property damage or personal injury. USING BOOST MODE Use Boost mode for quickly adding energy to a severely discharged or large capacity battery prior to Engine Start.
  • Page 11: Maintenance And Care

    Example: Ah rating x % of charge needed x 1.25 = hrs of charge Charger Amp setting 100 (Ah rating) x .50 (charge needed) x 1.25 = 3.125 hrs 20 (Charger Setting) 100 x .50 x 1.25 = 3.125 You need to charge a 100 Ampere hour battery for a little more than 3 hrs at the 20 Amp charge rate, using this example.
  • Page 12: Before Returning For Repairs

    PROBLEM POSSIBLE CAUSE SOLUTION The charger is making an Circuit breaker is cycling. The settings may be wrong. Check the audible clicking sound. charger settings. Battery is defective. Have the battery checked. Shorted battery cables or clips. Circuit breaker cycles when current draw is too high.
  • Page 13: Instrucciones Importantes De Seguridad - Guarde Estas Instrucciones

    Cargador de baterías manual MANUAL DEL USUARIO 105-4 POR FAVOR CONSERVE ESTE MANUAL DEL USUARIO Y LEALO ANTES DE CADA USO. 105-5 En este manual le explica cómo utilizar el cargador de batería de manera segura y confiable. 105-8 Por favor, lea y siga las siguientes instrucciones y precauciones. INSTRUCCIONES IMPORTANTES DE SEGURIDAD –...
  • Page 14: Preparación Para La Carga

    Si el ácido de la batería tiene contacto con su piel o su ropa, lave de inmediato el área afectada con agua y jabón. En caso de que ingrese ácido en un ojo, sumerja el mismo de inmediato bajo agua potable corriente por al menos 10 minutos y obtenga atención médica en forma inmediata.
  • Page 15: Siga Estos Pasos Cuando La Batería Esté Colocada En El Vehículo

    SIGA ESTOS PASOS CUANDO LA BATERÍA ESTÉ COLOCADA EN EL VEHÍCULO ADVERTENCIA: UNA CHISPA PROVOCADA CERCA DE LA BATERÍA PUEDE CAUSAR LA EXPLOSIÓN DE LA BATERÍA. PARA REDUCIR EL RIESGO DE PROVOCAR CHISPAS CERCA DE LA BATERÍA: Ubique los cables de C.A. y C.C. para reducir el riesgo de daños a la cubierta, a la puerta y a las piezas móviles o calientes del motor.
  • Page 16: Instrucciones De Montaje

    USO DE UN CABLE DE EXTENSIÓN El uso de una extensión no se recomienda. Si debe usar una extensión, siga estas pautas: • Las clavijas del enchufe del cable de extensión debe ser el mismo número, tamaño y forma que las del enchufe del cargador.
  • Page 17: Panel De Control

    Extienda el asa desde la posición retraída tirando de él hacia arriba hasta que encaje en su lugar. (Pulse los botones pequeños de plata hacia el interior, si es necesario.) 10. PANEL DE CONTROL INTERRUPTOR DE SELECCIÓN DE VELOCIDAD DE CARGA Utilice el interruptor de selección de velocidad de carga para seleccionar la velocidad de carga o la configuración arranque del motor.
  • Page 18: Instrucciones De Operación

    11. INSTRUCCIONES DE OPERACIÓN ADVERTENCIA: UNA CHISPA PROVOCADA CERCA DE LA BATERÍA PUEDE CAUSAR UNA EXPLOSIÓN. CARGA DE LA BATERÍA EN EL VEHÍCULO 1. Apague todos los accesorios del vehículo. 2. Mantenga el cofre abierto. 3. Limpie las terminales de la batería. 4.
  • Page 19: Cálculo De Tiempo De Carga

    3. Enchufe el cable de alimentación de CA del cargador al tomacorriente de CA. 4. Con el cargador enchufado y conectado a la batería del vehículo, coloque el interruptor selector de velocidad de carga a la posición de arranque del motor. 5.
  • Page 20: Mantenimiento Y Cuidado

    Utilice la tabla-gráfica siguiente para determinar el tiempo que se necesita para cargar una batería a plena carga. Los tiempos que se informan son para baterías con un 50% de carga antes de volver a cargar. CCA = Amperaje de arranque en frío Ah = Amp/hora RC = Capacidad de reserva NR = No Se Recomiendan VELOCIDAD/TIEMPO DE CARGA TAMAÑO/ÍNDICE DE LA BATERÍA...
  • Page 21 PROBLEMA CAUSA POSIBLE SOLUCIÓN Se escucha un sonido El disyuntor se resetea. Las configuraciones podrían ser seco en el cargador erróneas. Verifique las configuraciones (“clic”). del cargador. Batería defectuosa. Haga revisar la batería. Cables o pinzas de la batería en Controle la posible presencia de cables cortocircuito.
  • Page 22: Antes De Devolver A Reparaciones

    15. ANTES DE DEVOLVER A REPARACIONES Para REPARACIONES O DEVOLUCIONES, visite 365rma.com Visite batterychargers.com para obtener piezas de repuesto. 16. GARANTÍA LIMITADA Para obtener información sobre nuestra garantía limitada de un año, visite batterychargers.com o llame al 1-800-621-5485 para solicitar una copia. Visite nuestra página en batterychargers.com para registrar su producto en línea.
  • Page 23: Consignes De Sécurité Importantes - Conserver Ces Instructions

    Chargeur de batterie manuel MANUEL D’UTILISATION 105-4 GARDER LE MANUEL D’INSTRUCTION ET LISEZ LE AVANT CHAQUE UTILISATION. 105-5 Ce manuel explique comment utiliser le chargeur de batterie d’une façon securitaire 105-8 et efficace. S’il vous plaît lisez et suivez ces instructions et precautions. CONSIGNES DE SÉCURITÉ...
  • Page 24: Préparation Pour Le Chargement

    NE JAMAIS fumer ou allumer des flammes à proximité de la batterie ou du moteur. Soyez extra prudent pour réduire le risque de laisser tomber un outil en métal sur la batterie. Ça pourrait faire une étincelle ou produire un court-circuit à la batterie ou à d’autres parties électriques et pourrait produire une explosion.
  • Page 25: Étapes À Suivre Quand La Batterie Est Installée Dans Un Véhcule

    ÉTAPES À SUIVRE QUAND LA BATTERIE EST INSTALLÉE DANS UN VÉHCULE AVERTISSEMENT : UNE ÉTINCELLE PRÈS DE BATTERIE PEUT CAUSER SON EXPLOSION. POUR RÉDUIRE LES RISQUES D’ÉTINCELLE PRÈS DE LA BATTERIE : Placer les cordons C.A. et C.C. de manière à éviter qu’ils soient endommagés par le capot, une portière ou les pièces en mouvement du moteur.
  • Page 26: Directives D'assemblage

    UTILISEZ UNE RALLONGE L’utilisation d’une rallonge n’est pas recommandée. Si vous devez utiliser une rallonge, suivez ces directives : • Les broches de la fiche de la rallonge doit être le même nombre, la taille et forme que celles de la fiche du chargeur.
  • Page 27: Panneau De Contrôle

    Tirez la poignée vers le haut pour l’étendre jusqu’à ce qu’elle se ferme. (Si nécessaire, appuyez sur les petits boutons argentés vers l’intérieur.) 10. PANNEAU DE CONTRÔLE COMMUTATEUR-SÉLECTEUR DU TAUX DE CHARGE Utilisez le commutateur-sélecteur de taux de charge pour sélectionner, selon vos besoins, le taux de charge ou le réglage démarrage moteur.
  • Page 28: Consignes D'utilisation

    11. CONSIGNES D’UTILISATION AVERTISSEMENT : UNE ÉTINCELLE PRÈS DE LA BATTERIE PEUT PROVOQUER UNE EXPLOSION. CHARGE D’UNE BATTERIE DANS LE VÉHICULE 1. Éteignez tous les accessoires du véhicule. 2. Gardez le capot ouvert. 3. Nettoyez les bornes de la batterie. 4.
  • Page 29: Calcul Du Temps De Chargement

    6. Si le moteur ne démarre pas, utiliser Boost ou Aide-Démarrage pendant 5 minutes avant de démarrer le moteur de nouveau. 7. Lorsque le moteur a démarré, mettez la minuterie sur la position ARRÊT et débranchez le cordon CA avant de déconnecter les pinces de la batterie du véhicule. 8.
  • Page 30: Maintenance Et Entretien

    13. MAINTENANCE ET ENTRETIEN Un minimum d’entretien peut garder le chargeur de batterie fonctionne correctement pendant des années. • Nettoyez les pinces à chaque fois que vous avez fini de charger. Essuyer tout liquide de la batterie qui peut avoir été en contact avec des pinces pour éviter la corrosion. •...
  • Page 31: Avant De Retourner Pour Les Réparations

    PROBLÈME CAUSE POSSIBLE RAISON / SOLUTION Cycle de démarrage court Attirant plus de ampères nominale Le temps de lancement varie avec ou non existant quand on du chargeur. le montant de courant consommé. Si lance le moteur. le lancement consomme plus de de ampères nominale du chargeur, le temps de lancement peut être inférieur à...
