Installation -

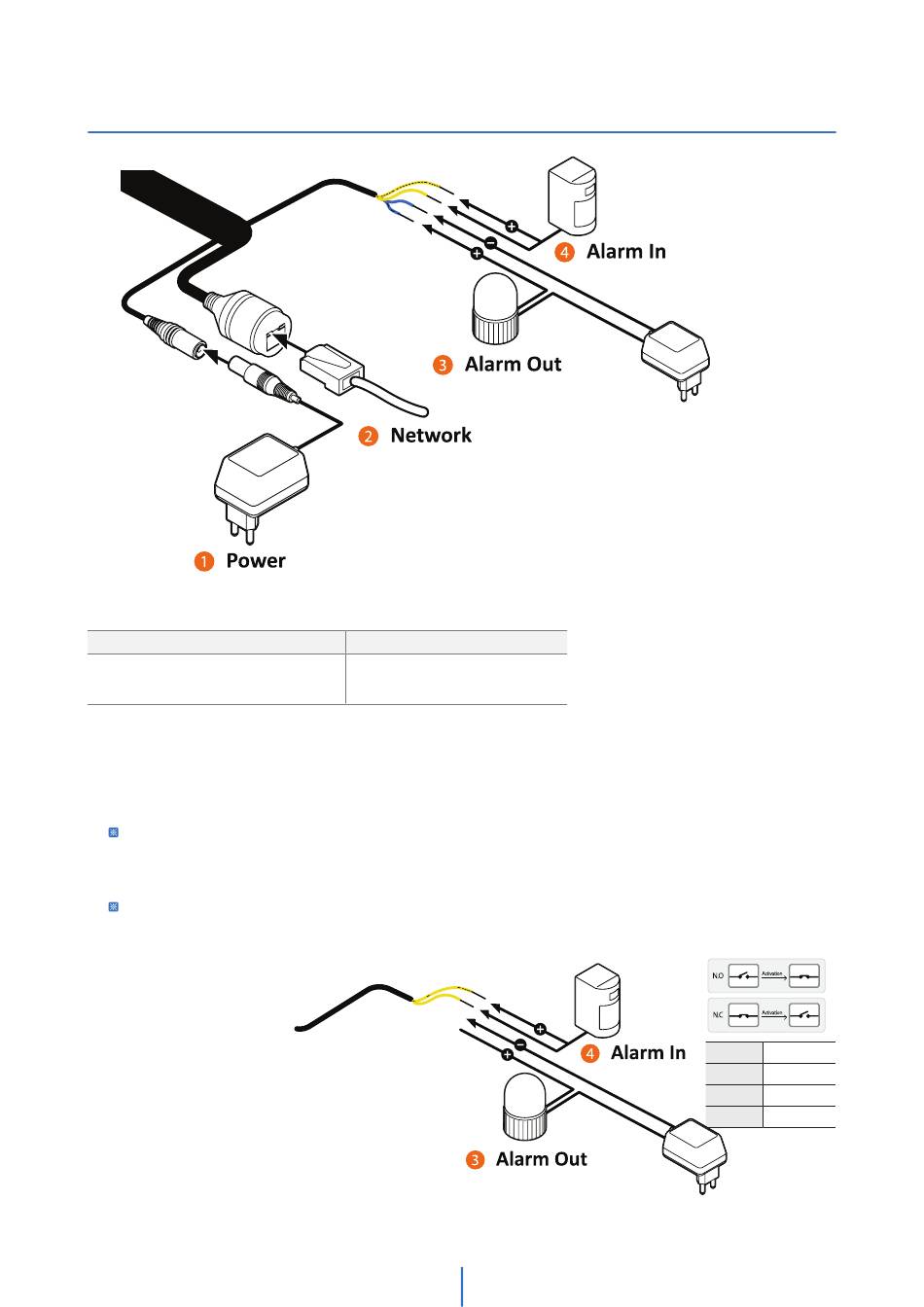

Cabling
1. Power
If using a non-PoE switch to connect data using an Ethernet cable, use a power adapter to power the camera.
Power requirements
DC12V, PoE (IEEE 802.3af class 3).
Adapter not Included.
2. Network Connection
See page 12 for connection options.
3. Audio in
Connect the 'audio in' port of the camera to the microphone directly or the 'line out' port of the amplifier
connected with a microphone.
If the microphone is connected directly, the microphone with the embedded amplifier, such as a condenser
microphone, needs to be used.
4. Audio out
Connect the 'audio out' port of the camera to the 'line in' port of the speaker.
If a speaker is connected to the audio output without an amplifier, it will not work properly. A speaker with
an aplifier or a separate amplifier is needed.
5. Alarm out/relay out (DO)
Connects to the alarm
lights, siren or lamps and
the sensor types are normal
open and normal close.
6. Sensor/alarm input (DI)
The sensor/alarm input
device's cable should
connect to the + and - of
the Terminal Block.
7. SD card slot
See page 14.
Power consumption
12V DC: 10.2W, 850mA
PoE: 12.5W, 260mA
13
DI YELLOW + DOT
DI COM YELLOW
DO1 (N.O) BLUE + DOT
DI1 COM BLUE
